Incorrect Source IP seen for inbound traffic on the CN-Series Firewall
7458
Created On 01/31/23 22:16 PM - Last Modified 07/12/23 01:05 AM
Symptom

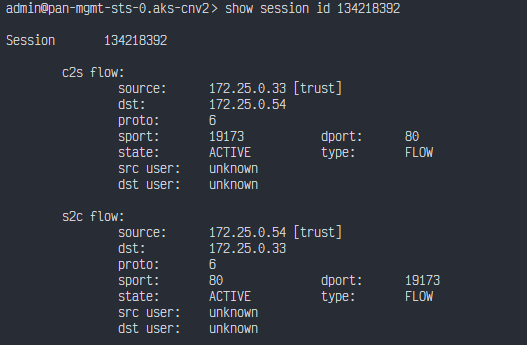

The session details on the management plane for the load balancer (inbound) traffic shows the node/ pan-cni IP address as the source address instead of the original IP address of the client.
kubectl get nodes -o wide command output showing the node IP addresses
Environment
| Platform | CN-Series |
| Deployment | CNv1, CNv2 |
| PAN-OS | Any |
Cause
The Kuberntes LoadBalancer service is configured with the default value Cluster for the spec externalTrafficPolicy that obscures the client source IP.
Resolution

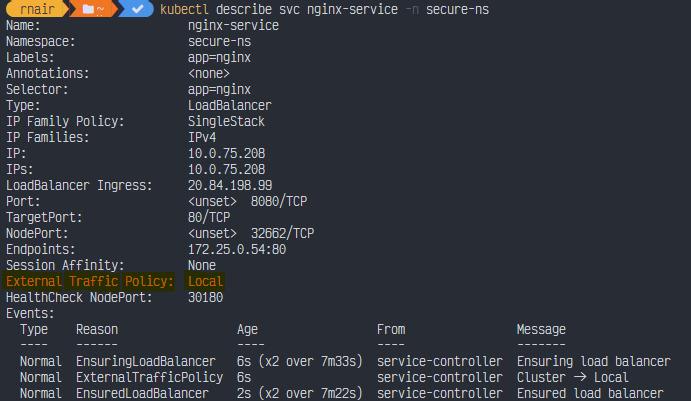

In order to see the original client IP address on the traffic logs, the .spec.externalTrafficPolicy need to be set to Local instead of Cluster.

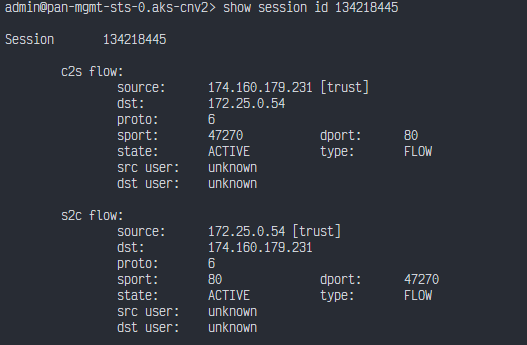

Session details after changing the .spec.externalTrafficPolicy to Local
Additional Information
- Cluster obscures the client source IP and may cause a second hop to another node, but should have good overall load-spreading.
- Local preserves the client source IP and avoids a second hop for LoadBalancer and NodePort type Services, but risks potentially imbalanced traffic spreading.
