How to troubleshoot the WAN connectivity if resources towards Internet or MPLS are not working

• For WAN connectivity, an ION device can connect to multiple Internet and MPLS networks
• The ION device routes traffic on MPLS or Internet based on path policy setup.
• If any traffic does not take the desired path, the WAN connections must be examined.
• The article provides some of the troubleshooting steps for the same.

• Prisma SD-WAN
• Prisma SASE
• ION

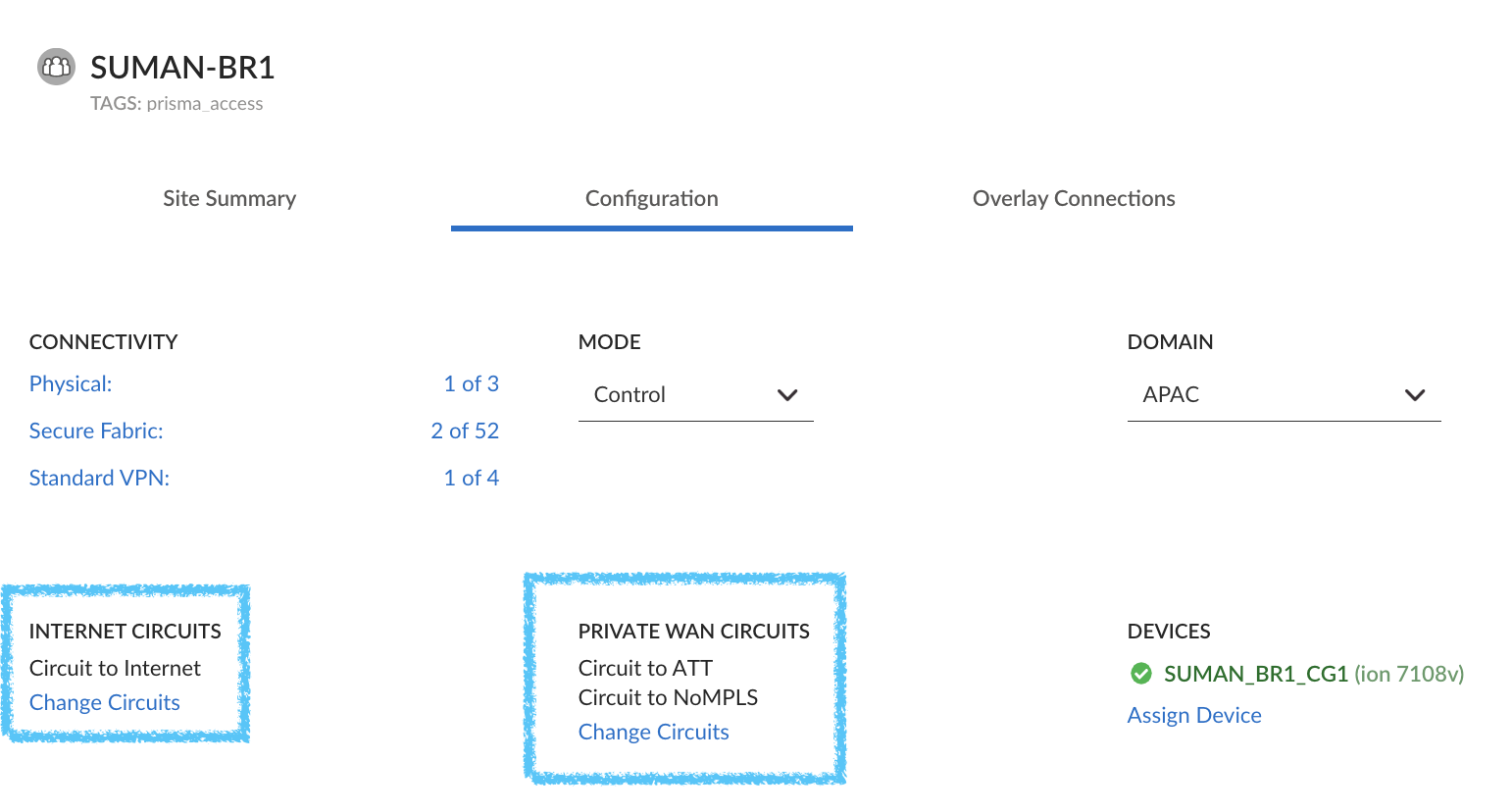

• The type of the WAN connectivity(Public/private) is determined by the type of Circuit label configured under "Internet Circuits" and "Private WAN Internet" as follows.

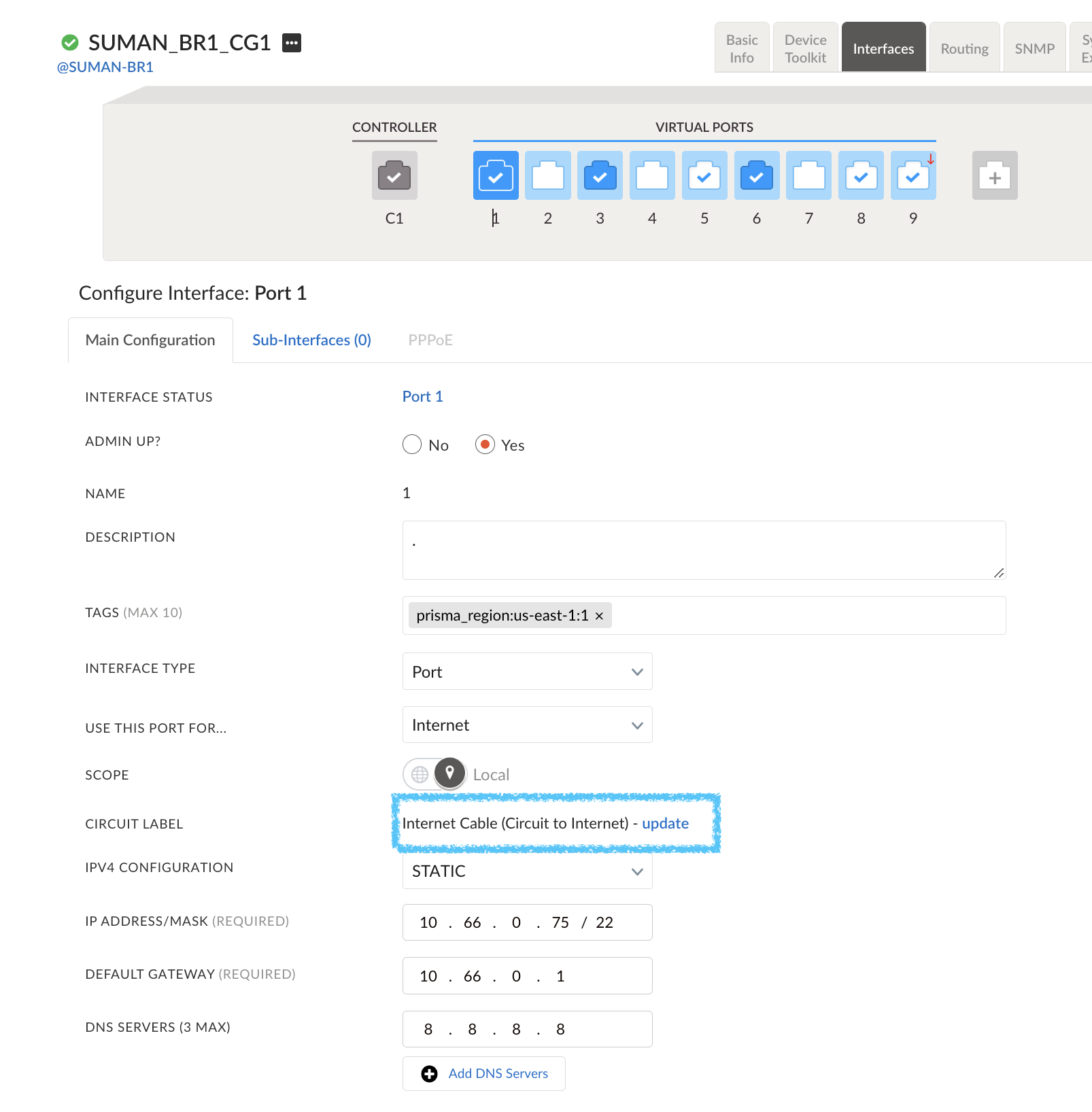

• Ensure that the correct Circuit label is attached to the Public or Private Interface.

•  In Prisma SD-WAN, the controller pushes the configuration to the ION device, hence the config will sync between the controller and the ION device as follows. The Circuit label information is updated

SUMAN_BR1_CG1# dump interface config 1
Interface               : 1
Description             : .
ID                      : 15940610379010198
Type                    : port
Used For                : public
Admin State             : up
Alarms                  : enabled
NetworkContextID        :
IpfixCollectorContextID : 16262017541490245
IpfixFilterContextID    :
Scope                   : local
Directed Broadcast      : false
MTU                     : 1500
IP                      : static
  Address               : 10.66.0.75/22
  Route                 : 0.0.0.0/0 via 10.66.0.1 metric 0
  DNS Server            : 8.8.8.8
NatAddress:Port         : 106.51.85.41:4500
NatZoneID               : 15793375606790002
Wan ID                  : 16161416151310216 publicwan
  CircuitLabel          : Circuit to Internet
  PathLabel             : public-1
  BW                    : manual, up 100.000000 down 300.000000
  QoS                   : enabled
  LQM                   : enabled
  PCM                   : enabled

• Ensure that the layer 2 connectivity is up, which will show the mac address of the modem

SUMAN_BR1_CG1# inspect system arp interface=1

Address                  HWtype  HWaddress           Flags Mask            Iface
10.66.0.1                ether   78:02:b1:5b:14:cb   C                     eth1

• Use the below commands to get additional logs of the connectivity

# ping <internet_interface> <gw_ip>
# tcpdump <inet_int> args="host <gw_ip> and arp" show
# ping <private_interface> <gw_ip>
# tcpdump <private_int> args="host <gw_ip> and arp" show
