Prisma SD-WAN.- How to advertise routes learned via a classic BGP peer to a core BGP peer?

Prisma SD-WAN.- How to advertise routes learned via a classic BGP peer to a core BGP peer?

1108
Created On 12/16/22 16:31 PM - Last Modified 12/18/25 03:26 AM


Objective


DC device has both classic and core BGP peering.
The prefix 10.128.12.0/24 learnt over classic peering must be advertised it to the core router.

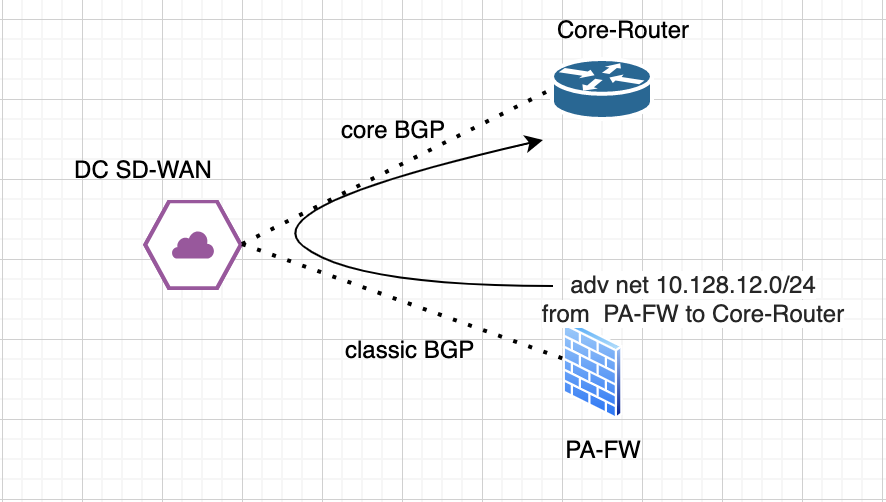

(Please check the diagram below)






Environment


  • Prisma SD-WAN
  • Strata Cloud Manager


Procedure

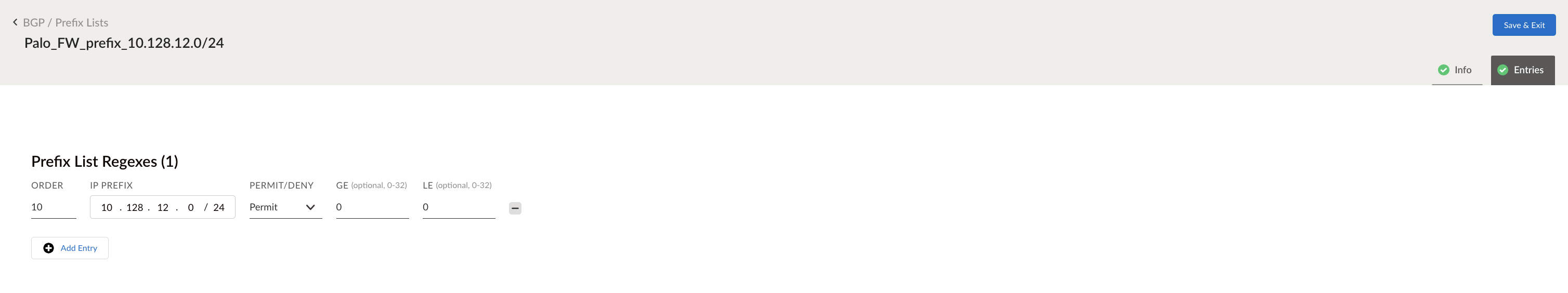

1. Create a prefix List
(BGP -- Prefix Lists -- Create prefix List -- add name and entry matching the prefix)

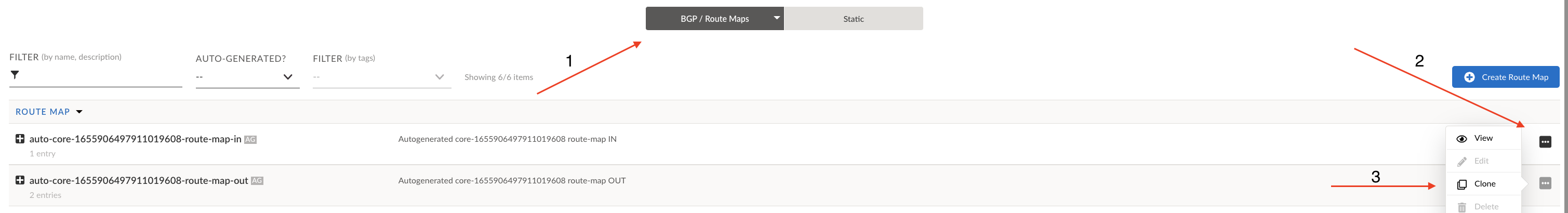

2. Clone the core route map out:

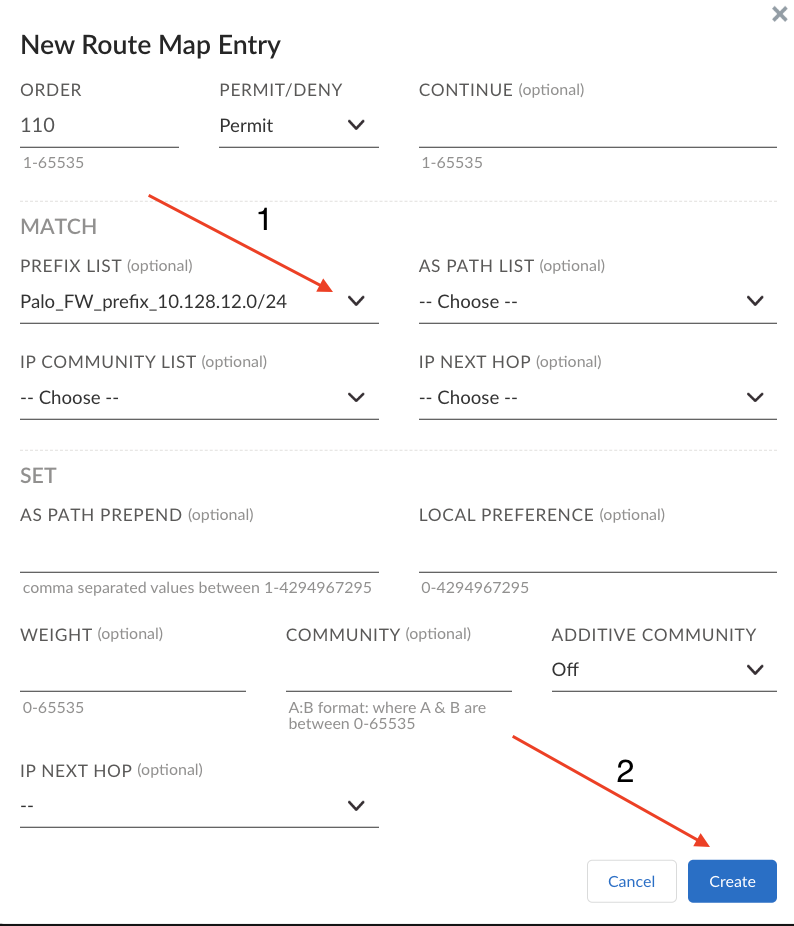

(BGP -- Route Maps -- clone -- add entry matching prefix created previously)

3. Attach route map to the core peer

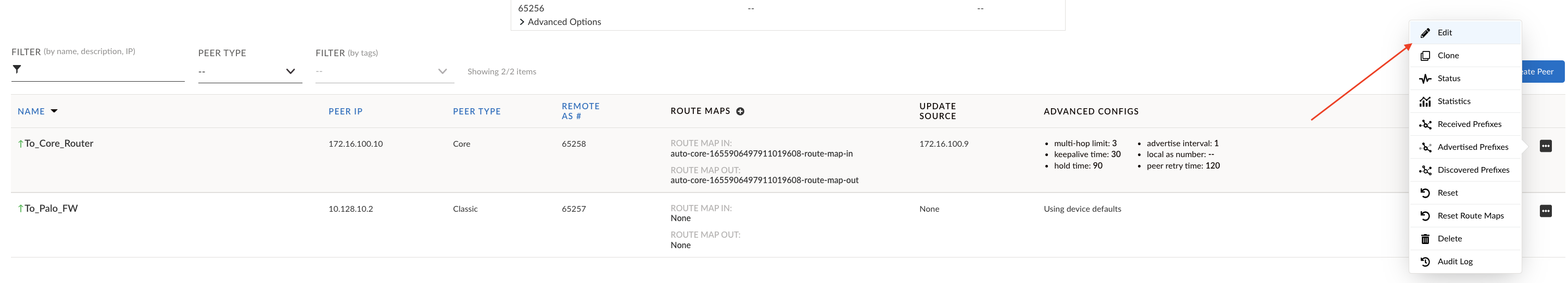

Attach route map_1.png

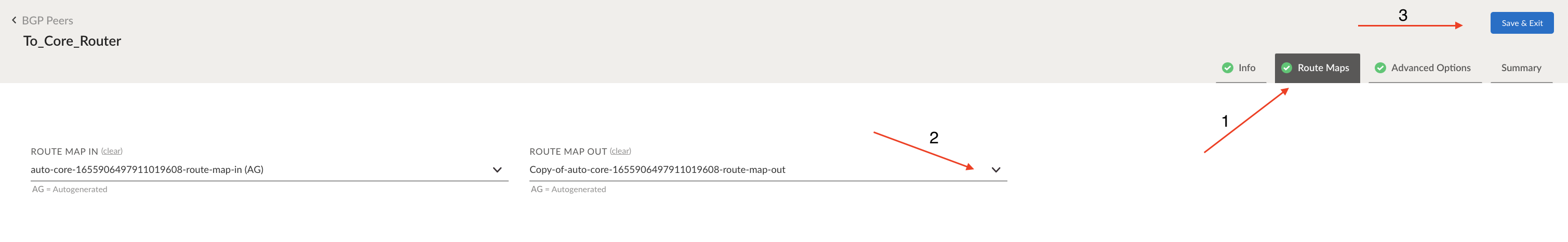

Attach route map_2.png

4. Do soft reset core BGP peer




Additional Information


Configure A BGP Peer
