Objective


XFF in Security Policy mode allows Security Policy to be enforced on the XFF IP instead of the source IP. This feature was introduced in PAN-OS 10.0
This knowledge article will help a reader to have a clear understanding of XFF for Security Policy
  • What is XFF?
  • How XFF is used?
  • Which configuration is required to enable XFF for security rule?
  • How to configure security rule for controlling packet by XFF
  • How to monitor XFF information on traffic log and url filtering log
  • HTTPS Sessions

Environment


  • PAN-OS 10.0 or later
  • X-Forwarded-For (XFF)

Procedure


  • What is XFF?
X-Forwarded-For is a HTTP Header
X-Forwarded-For is a header used to disclose information about the client that initiated a HTTP request, such as an IP Address

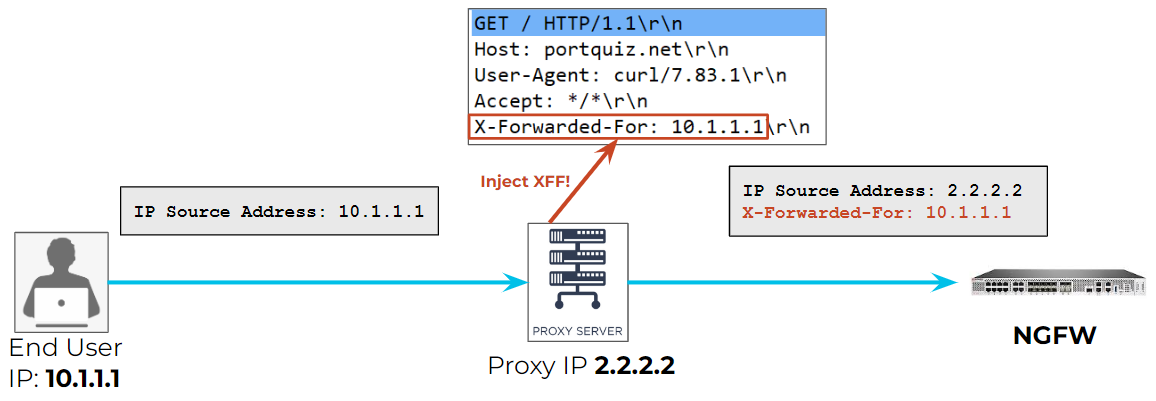

  • How is XFF used?

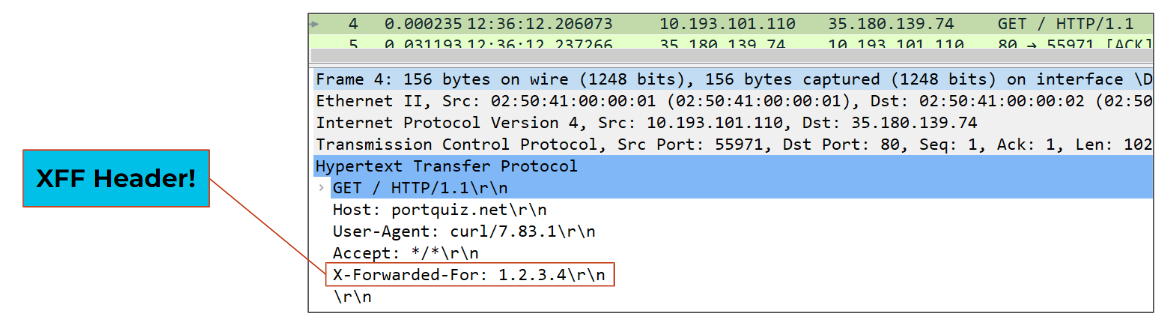

Proxies can inject XFF Headers into the HTTP Request
Webservers, Firewalls, etc, can use this to determine what the original Client IP is
  • Which configuration is required to enable XFF for security rule?

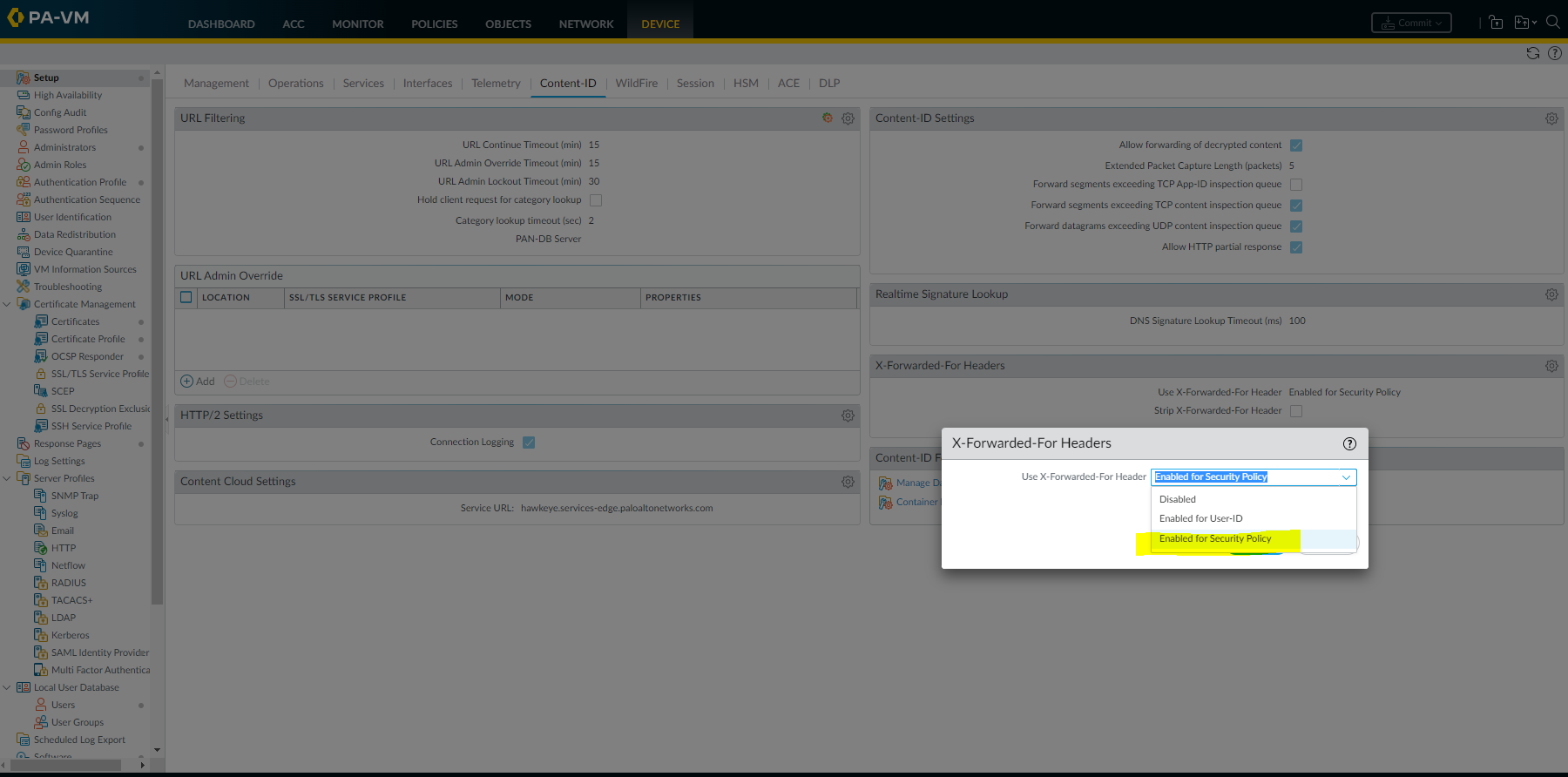

Configured under Device > Setup > Content-ID > X-Forwarded-For Headers

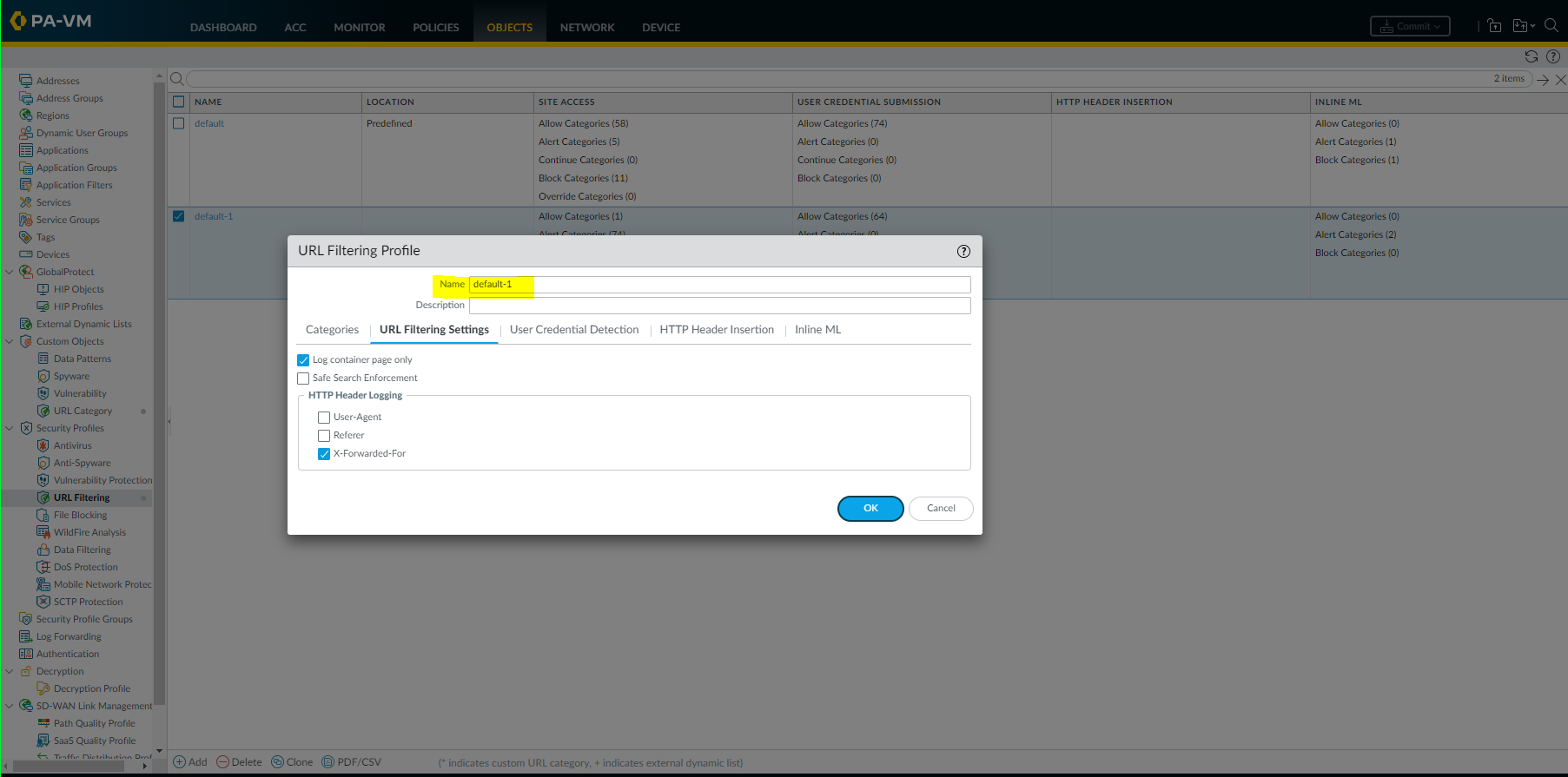

XFF Logging can be enabled in the URL Filtering Profile. This cannot be added to the ‘default’ URL Filtering profile. I created defaul-1.
  • How we configure Security rule for controlling packet by XFF?

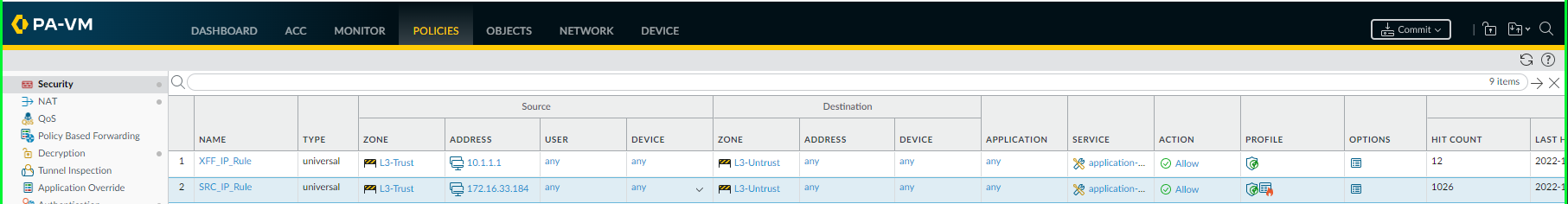

Configured 2 rules to match either the SRC IP or XFF IP:

  • How we can monitor XFF information on traffic log and url filtering log?

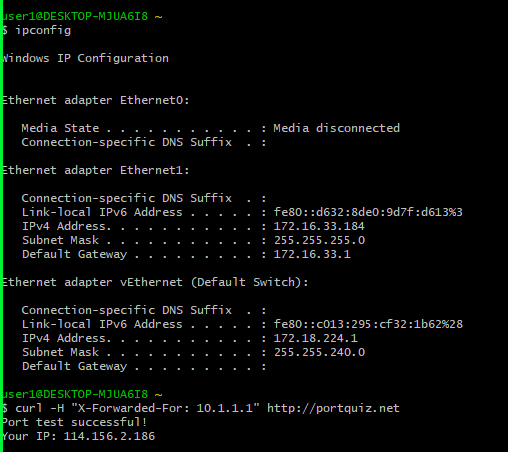

If I send a HTTP request with an XFF IP of 10.1.1.1:
# curl -H "X-Forwarded-For: 10.1.1.1" http://portquiz.net
Now there is an XFF IP of 10.1.1.1, so it  matches the rule for “XFF_IP_Rule”.

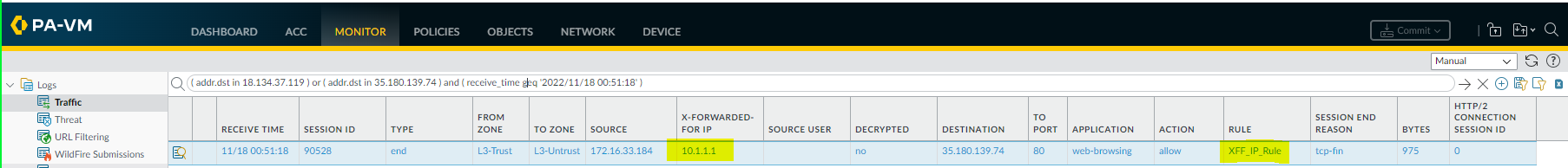

Traffic log shows x-fwd-for: 10.1.1.1 as ‘X-FORWARDED-FOR IP’

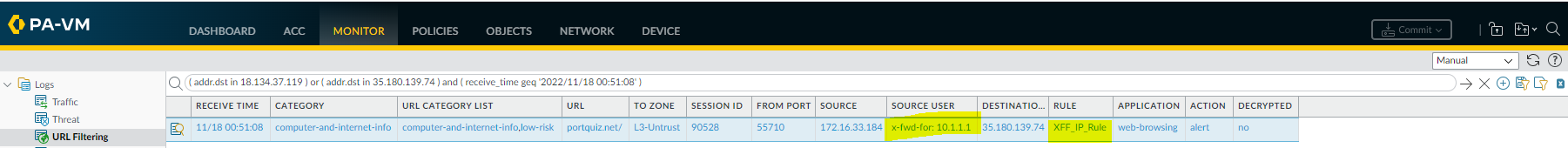

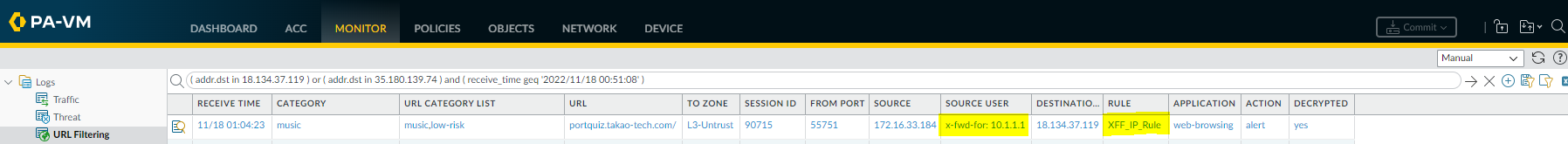

URL Filtering log shows x-fwd-for: 10.1.1.1 as ‘Source User’. This only logs if the traffic hits an action which alerts (like Block, Continue or Alert)

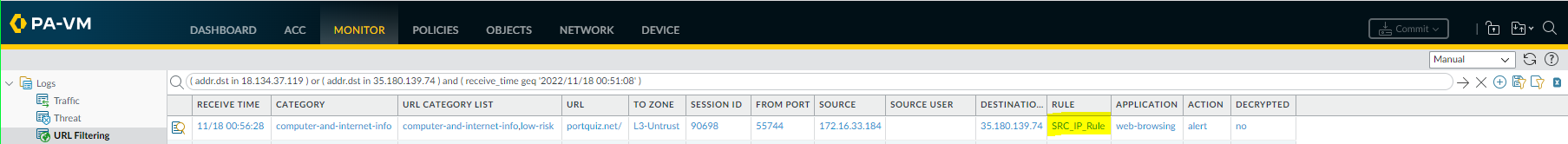

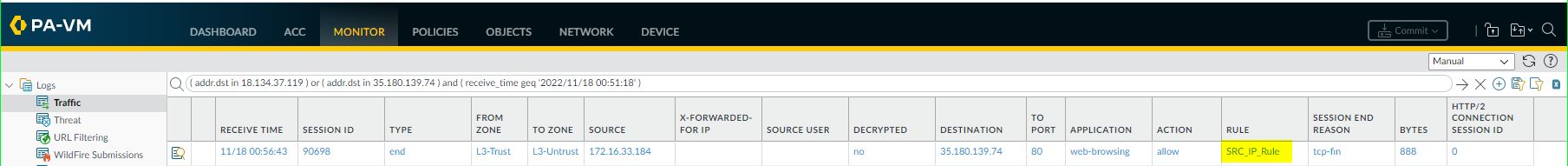

If there is no XFF IP, so it matches the rule “SRC_IP_Rule” as usual.


  • HTTPS Sessions

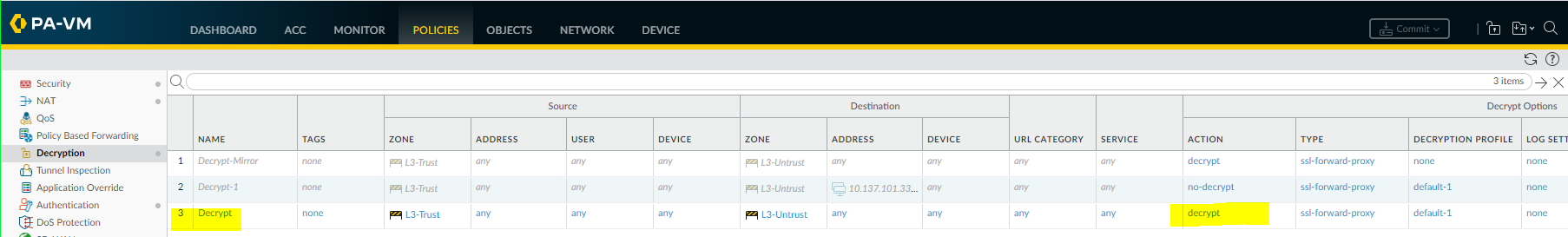

For HTTPS sessions, check whether the session is decrypted or not. HTTPS must be decrypted for us to read the XFF.

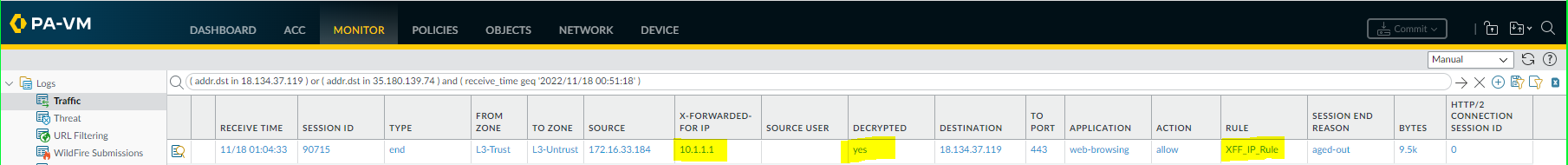

If I send a HTTPS request with an XFF IP of 10.1.1.1:
# curl -k --header "X-Forwarded-For: 10.1.1.1" https://portquiz.takao-tech.com
