Symptom

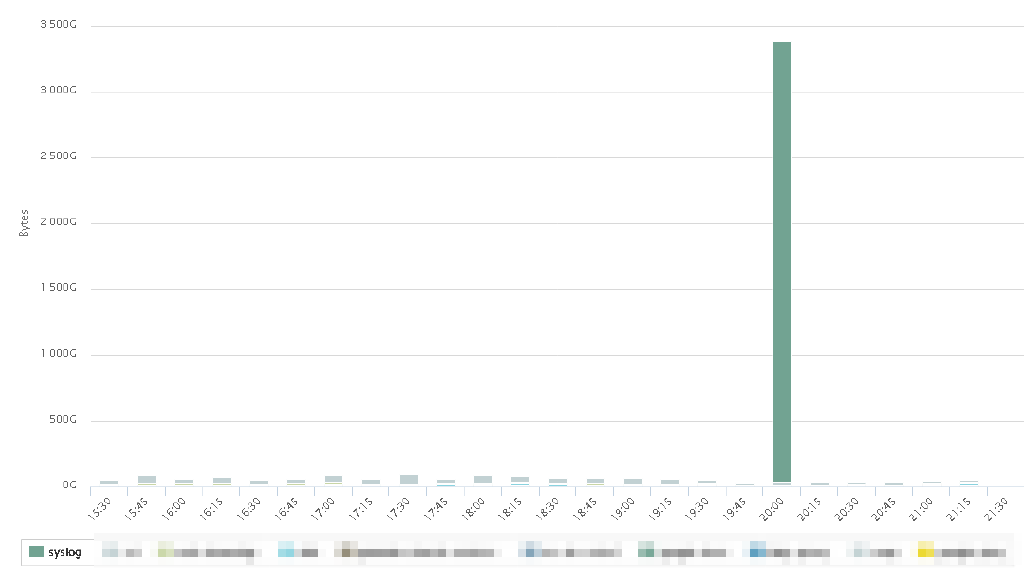

Abnormal syslog traffic volume value is displayed suddenly on Network Monitor Report.
The traffic is not expected since there is no traffic log entries for this traffic.

Environment

Palo Alto Firewall or Panorama
Supported PAN-OS
Network Monitor Report for Application

Cause

Service Route setting to transfer traffic logs.
No intra-zone security policy is configured.

Resolution

The Network Monitor Report for Application comes from "appstat," it's not from the traffic logs.
- Appstat information comes from Dataplane directly, and it does not need log setting to record.
Appstat records application traffic volume at the end of "syslog" session.
This is the reason the syslog traffic recorded a high volume value suddenly.

Additional Information

To check the specific application's traffic log and appstat log, use the following commands.

show log traffic csv-output equal yes direction equal backward app equal syslog
show log appstat csv-output equal yes direction equal backward name equal syslog

To check the actual logging rate, use the following command.
```
 debug log-receiver statistics
```

To check the active session information, use the following commands.

show session all filter application syslog
show session id xxxx       <--- enter the syslog traffic session id

Example:

admin@PAN-TEST> show session all filter application syslog

--------------------------------------------------------------------------------
ID          Application    State   Type Flag  Src[Sport]/Zone/Proto (translated IP[Port])
Vsys                                          Dst[Dport]/Zone (translated IP[Port])
--------------------------------------------------------------------------------
136567       syslog         ACTIVE  FLOW       172.16.184.1[51360]/L3-Trust/17  (172.16.184.1[51360])
vsys1                                          172.16.140.222[514]/L3-Trust  (172.16.140.222[514])
admin@PAN-TEST> show session id 136567

Session          136567

        c2s flow:
                source:      172.16.184.1 [L3-Trust]
                dst:         172.16.140.222
                proto:       17
                sport:       51360           dport:      514
                state:       ACTIVE          type:       FLOW
                src user:    unknown
                dst user:    unknown

        s2c flow:
                source:      172.16.140.222 [L3-Trust]
                dst:         172.16.184.1
                proto:       17
                sport:       514             dport:      51360
                state:       ACTIVE          type:       FLOW
                src user:    unknown
                dst user:    unknown

        start time                           : Wed Oct 26 20:11:56 2022
        timeout                              : 30 sec
        time to live                         : 15 sec
        total byte count(c2s)                : 800
        total byte count(s2c)                : 0
        layer7 packet count(c2s)             : 1
        layer7 packet count(s2c)             : 0
        vsys                                 : vsys1
        application                          : syslog
        rule                                 : intrazone-default
        service timeout override(index)      : False
        session to be logged at end          : False
        session in session ager              : True
        session updated by HA peer           : False
        layer7 processing                    : completed
        URL filtering enabled                : False
        session via syn-cookies              : False
        session terminated on host           : True
        session traverses tunnel             : False
        session terminate tunnel             : False
        captive portal session               : False
        ingress interface                    : ethernet1/6
        egress interface                     : ethernet1/6
        session QoS rule                     : N/A (class 4)
        tracker stage l7proc                 : ctd app has no decoder
        end-reason                           : unknown
