DAG members are not populated on Panorama dynamically registering IP addresses using XML API
2686
Created On 10/21/22 13:19 PM - Last Modified 05/31/25 03:30 AM
Symptom
-
dynamic address group (DAG) members are not populated on Panorama if IP addresses, and associated tags were dynamically registered using XML API

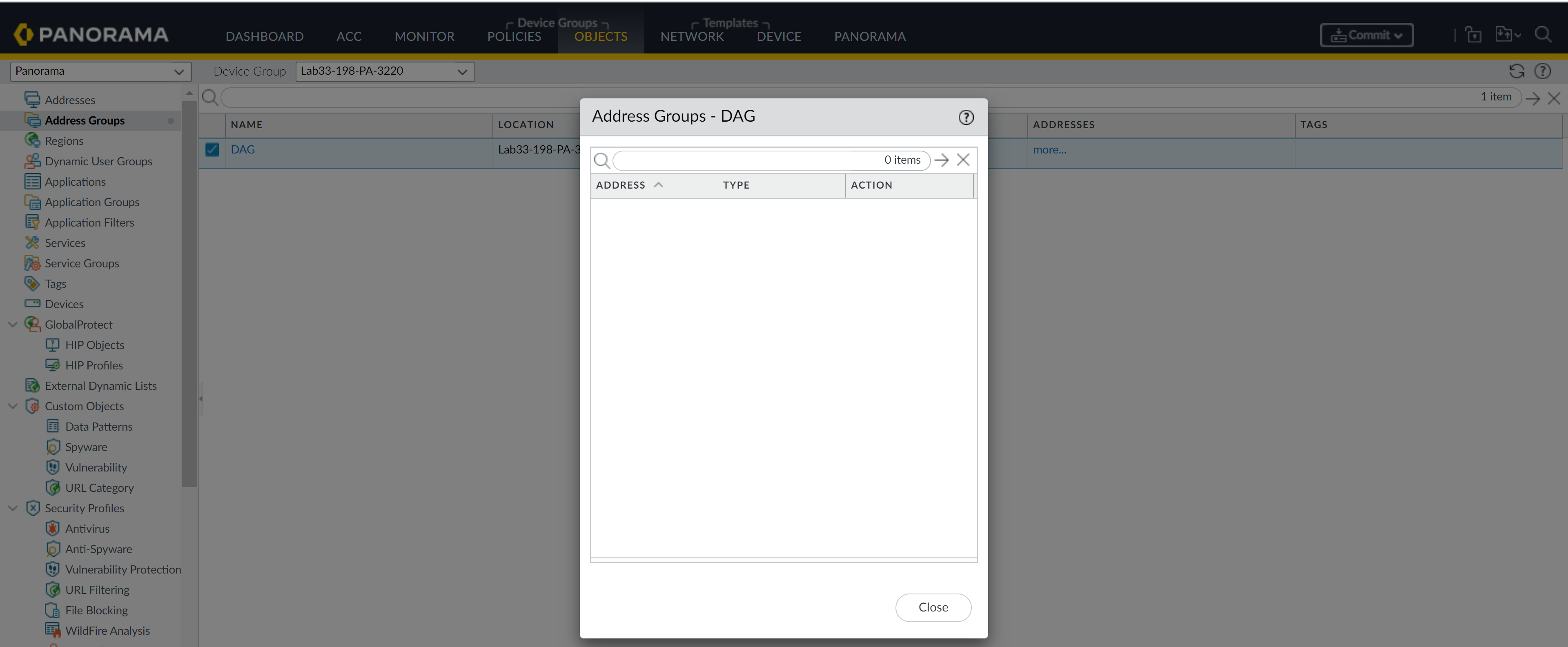

Panorama GUI
Panorama CLI
<Panorama> show object dynamic-address-group all
<response status="success"><result>Dynamic address groups in shared:
---------------------------------------------
</entry>Dynamic address groups in device group <device_group_name>:
---------------------------------------------
address group name:DAG
filter: 'Tag1'
O: address object; R: registered ip; D: dynamic group; S: static group
</result></response>
- Checking Firewalls, you can see IP Addresses in the same DAGs.
Environment
- Panorama on PAN-OS 10.2
- Kubernetes Plugin 3.0.2
- IP addresses and associated tags are dynamically registered using XML API
- DAGs are configured from panorama and pushed to the Firewalls
Cause
Shared DAG Support, and Nested DAG Support are introduced on Kubernetes Plugin 4.0
However, the list of IP-Tag mappings, including XML API sourced, can be displayed under Panorama using:
> show object registered-ip all
Resolution
Update Kubernetes Plugin to 4.0
Panorama Kubernetes Plugin
Additional Information
This applies only to Panorama appliances when dynamically registering IP addresses using XML API (does not include plugin learned mappings).
