How to configure destination service routes to use a dataplane interface to send telemetry data
4160
Created On 05/16/23 10:07 AM - Last Modified 02/27/24 03:08 AM
Objective
To configure a destination service route to connect to send data for device telemetry from a data plane interface in Panos 9.x and 10.x
Environment
- Any Palo Alto Networks firewall device
- PanOS 9.x and 10.x
- Device Telemetry
- Service route
Procedure
- Check the logs from "Device_telemetry_curl.log" using the command "grep mp-log device_telemetry_curl.log pattern cdl.paloaltonetworks.com"
- The output should show us the URL that is used to send telemetry data.
2023-05-13 15:35:08,660 dt INFO dst url: br-prd1.us.cdl.paloaltonetworks.com
-

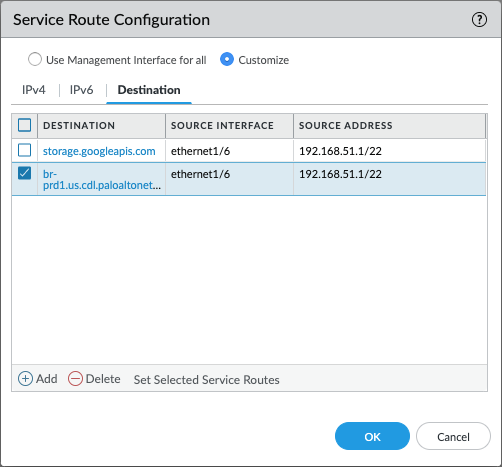

A destination service route should be configured pointing to the URL mentioned above and another to storage.googleapis.com
