Few GlobalProtect Gateways are not visible in the Gateway list under GlobalProtect App

6976

Created On 04/20/23 11:31 AM - Last Modified 09/29/23 00:12 AM

GlobalProtect Agent

GlobalProtect Gateway

9.1

10.2

10.1

GlobalProtect

PAN-OS

Next-Generation Firewall

Symptom

Multiple Gateways are configured under GUI: Network > GlobalProtect >Portals > (portal name) > Agent > (Agent name) > Configs > External

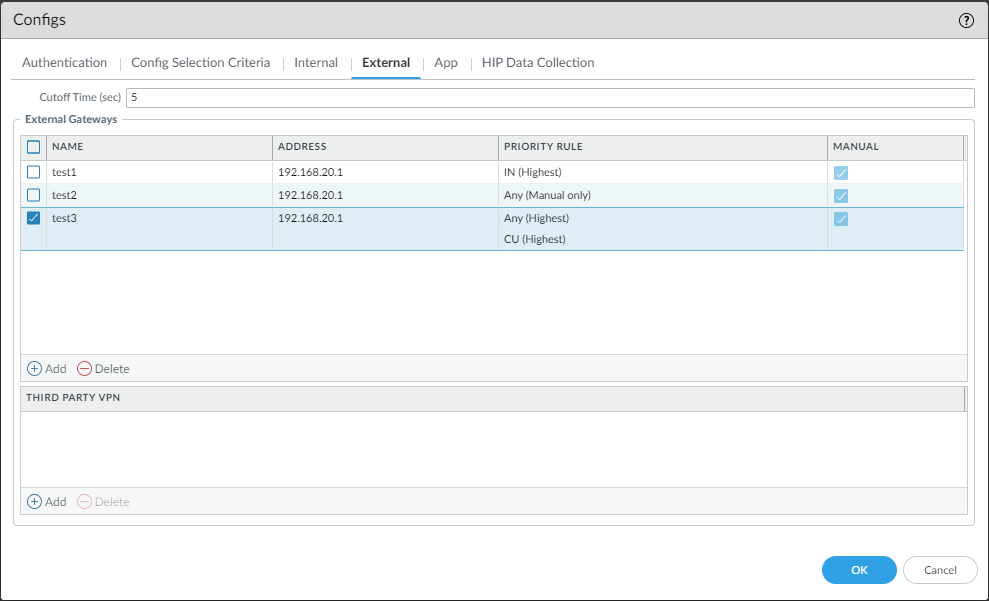

In the example below, gateway list configured as: test1, test2 and test3

;

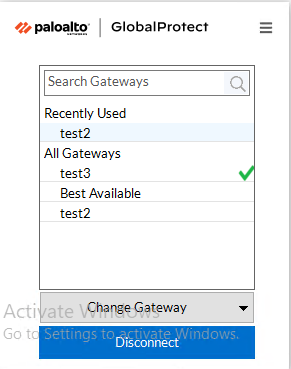

In the GlobalProtect Status Panel shown below, when clicking on the gateway list, only two gateways are visible (test2 and test3).

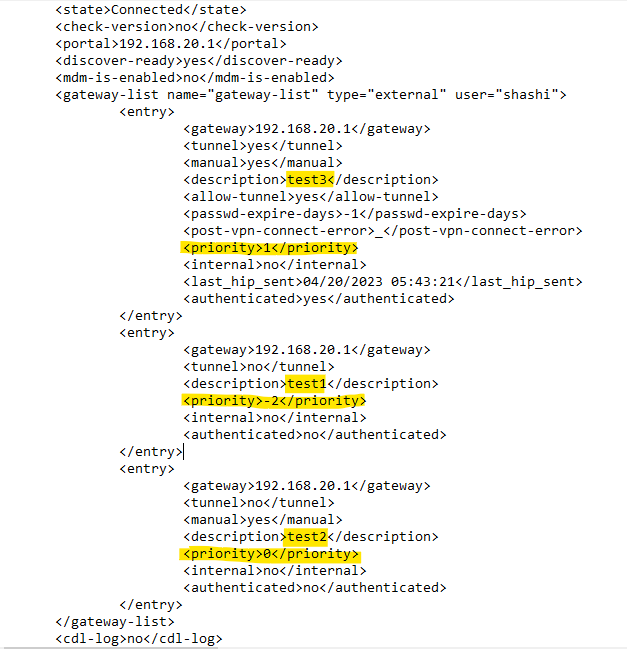

PanGPA.log (GP client logs) indicates Portal presenting all the 3 Gateways to the Client with different priorities.
On the GlobalProtect App, test1 gateway is missing from the list.

The visibility of the gateway in the GP App's gateway list is determined by the priority assigned to the gateway.
From the snapshot below, Gateway 'test1' is configured for country "IN" (source region "ANY" is not configured).
If "ANY" is not defined as the source region in the gateways( test1), the priority will be set to "-2" by default.
The gateway which has been assigned with priority "-2" will not be visible in the gateway selection list.

GUI: Network > GlobalProtect >Portals > (portal name) > Agent > (Agent name) > Configs > External

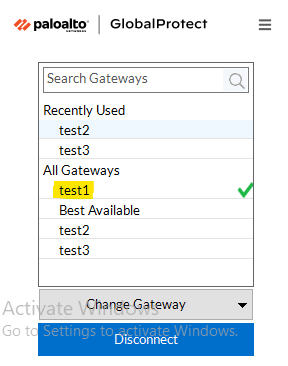

Change the "source region" of "test1" to "ANY". Refer to the details below.
By default, the user gets connected to the gateway which has "Highest" priority and source region set to "ANY".
If the gateway's source region is set to "ANY" and priority is set to "Manual Only" the priority"0" will be allotted to that gateway.

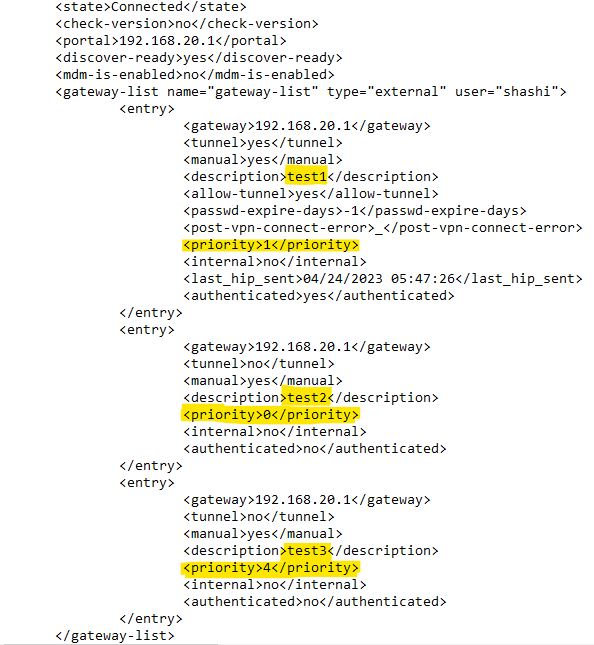

Below are the numerical priorities assigned to the gateways.

Source Region	Priority	Numerical Priority Assigned
Only Country	Manual-Only Highest High Medium Low Lowest	-2
ANY	Manual-Only	0
ANY	Highest	1
ANY	High	2
ANY	Medium	3
ANY	Low	4
ANY	Lowest	5
