Commit fails when configuring IP-Range for Access Route Exclude Traffic on Global Protect for split tunnel.
1927
Created On 07/21/23 08:15 AM - Last Modified 04/25/24 21:42 PM
Symptom

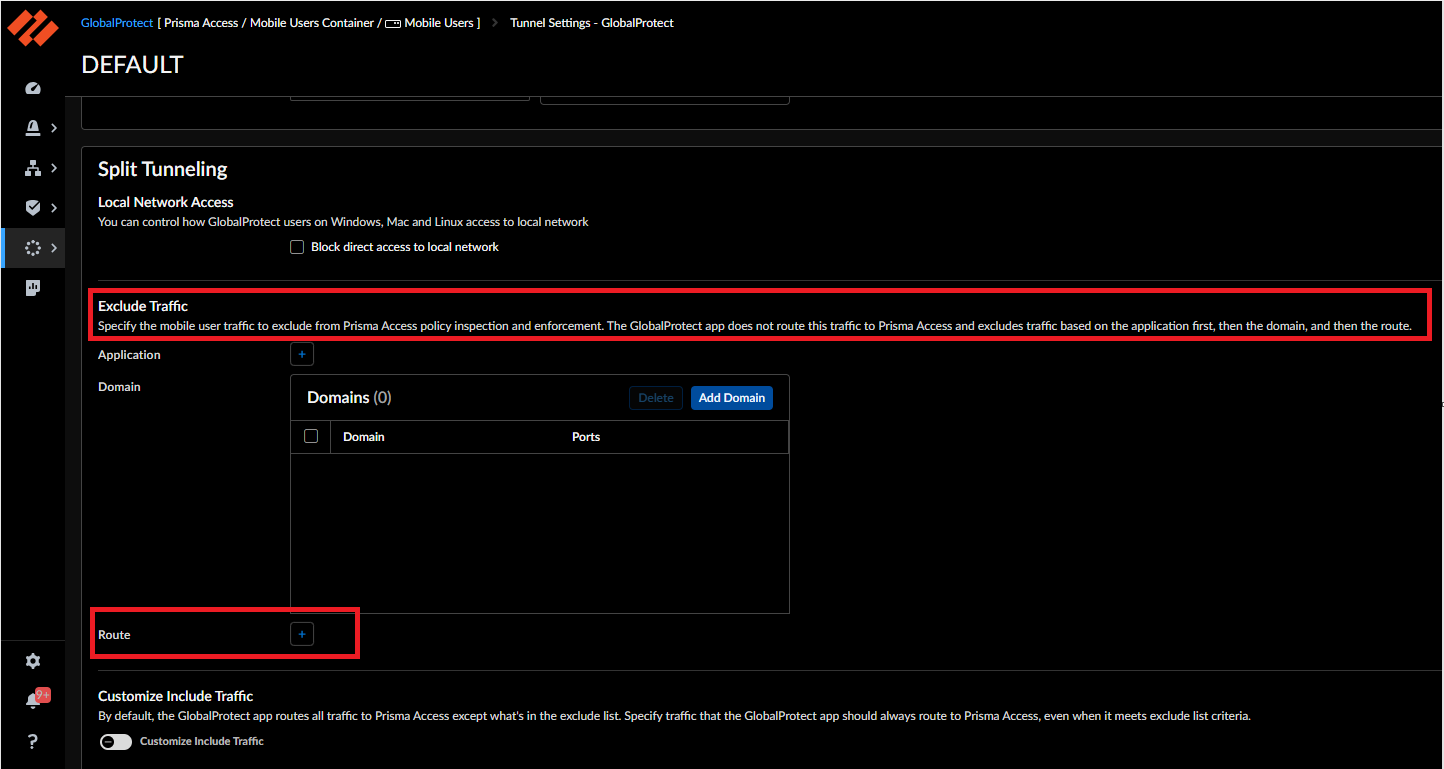

- Commit fails when configuring Access Route Exclude Traffic with IP-Range in the split tunnel for Global Protect.
- Validation process passes but push to the instance Fails.
Environment
- Cloud-Managed Prisma Access
- Split Tunnel configuration
- GlobalProtect
Cause
IP-Range configuration is not supported for Access Route Exclude Traffic in Split Tunneling for Global Protect.
Resolution

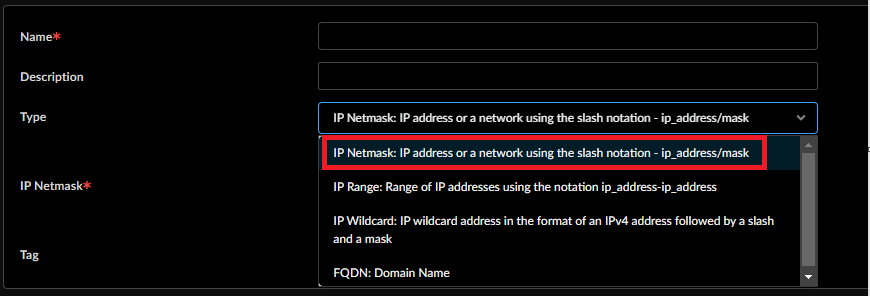

- Configure the Addresses type as "IP Netmask" using the slash notation ( ip_address/mask)
- Just a single ip such as 192.168.80.50 or using "/" such as 192.168.80.0/24 can be used
- One can also use IPv6 address or an IPv6 address with its prefix (Ex. 2001:db8:123:1::1 or 2001:db8:123:1::/64)
Additional Information
Refer to the Configure a Split Tunnel Based on the Access Route for detailed configuration steps.
