Managed log collector unable to connect to Panorama
10860
Created On 06/13/23 01:08 AM - Last Modified 09/25/23 13:28 PM
Symptom

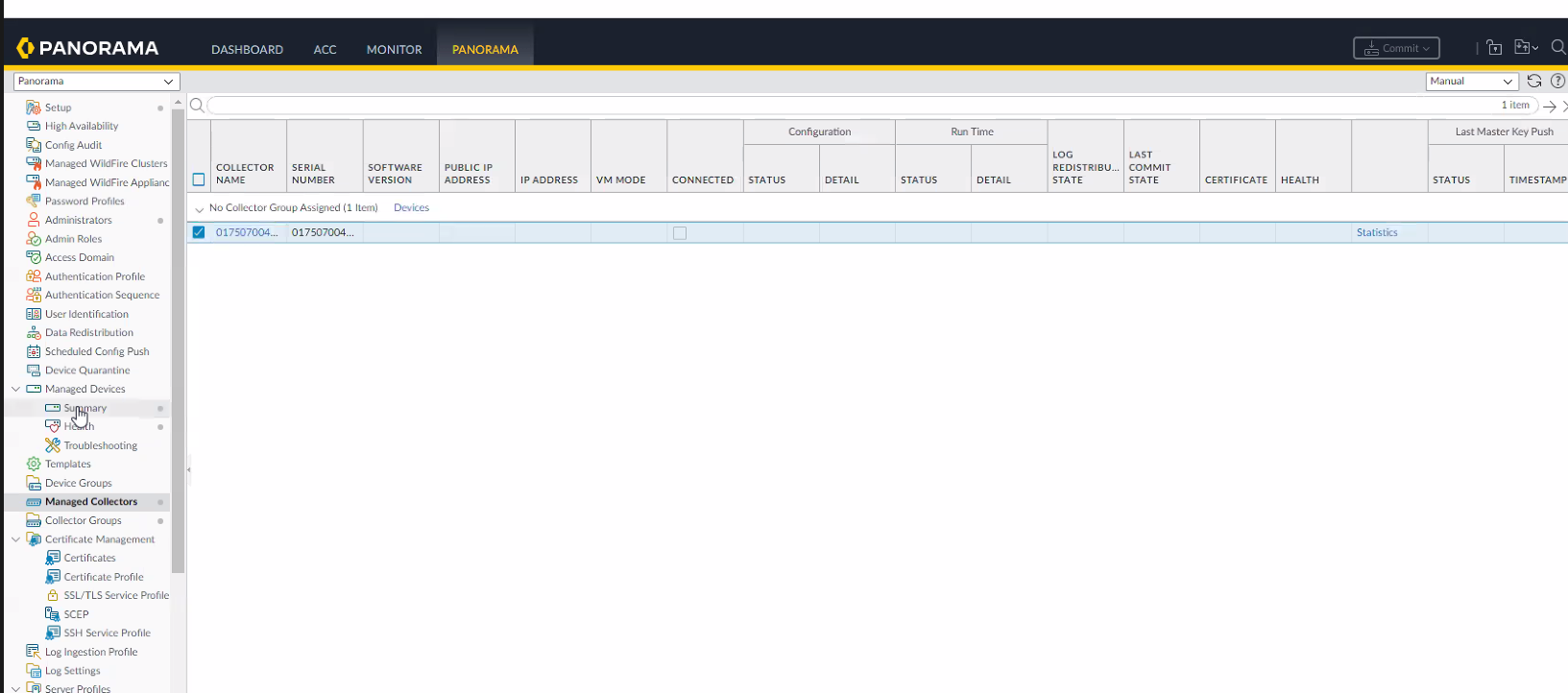

Columns like software version, ip address, connected, status are empty after adding the managed log collector to Panorama as shown in following screenshot.
Environment
- Panorama
- Managed log collector
- PANOS 10.1 and above
Cause
- This issue is because the Auth key is not set on the log collector.
- When auth key is not set, SSL negotiation (secure communication between Panorama and Log Collector) will fail as shown below (logs of log collector)
admin@LC> tail follow yes mp-log ms.log
-0400 Error: cs_load_certs_ex(cs_common.c:544): keyfile not exists
-0400 Error: pan_cmsa_tcp_channel_setup(src_panos/cms_agent.c:1347): cms agent: cs_load_certs_ex failed
-0400 Warning: pan_cmsa_tcp_channel_setup(src_panos/cms_agent.c:1484): client will not use SNI
Resolution

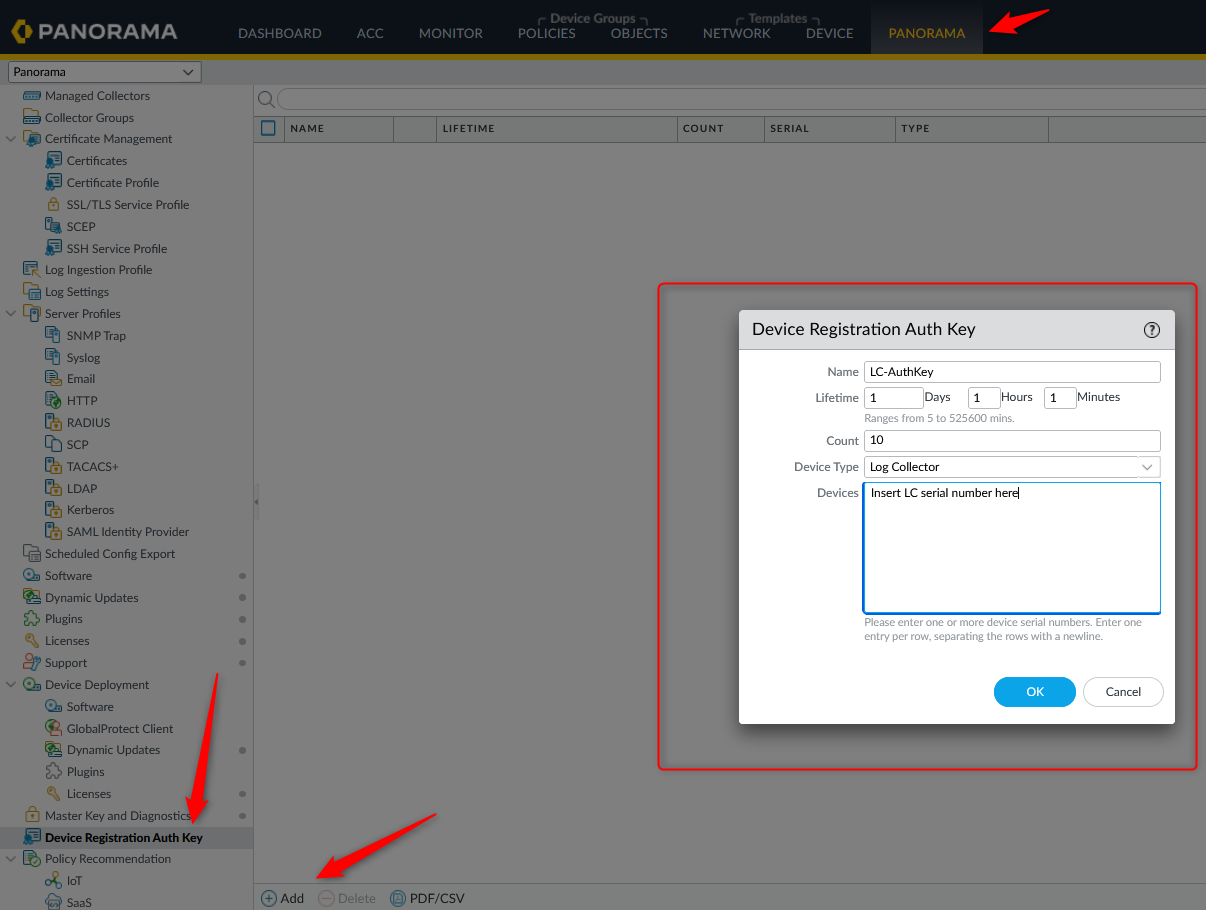

- Create auth key for log collector on Panorama under Panorama > Device Registration Auth Key > Add
- When you click "OK" authkey is displayed, Copy the auth key and paste it in following command on Log Collector
>request authkey set < auth key from Panorama>
- Issue following commands on LC to commit the changes
>configure
#commit force
- The log collector logs (less mp-log ms.log) now display the connection got established.
-0400 SC3A: **SC3 validity checked
-0400 panorama agent: ssl channel established. sock=18 ssl=0x564a8c2e2000
-0400 Device info set to panorama
-0400 connmgr: inter-logger conn: Setting connections (017507004655), # of lc's = 1
and ip address , connection status etc should show as connected.
- Add the logs disk to log collector under Panorama > Manager Collectors > and click OK
- Add the log collector serial number to Collector Groups under Panorama > Collector Groups > and click OK.
- commit and push the changes to collector groups.

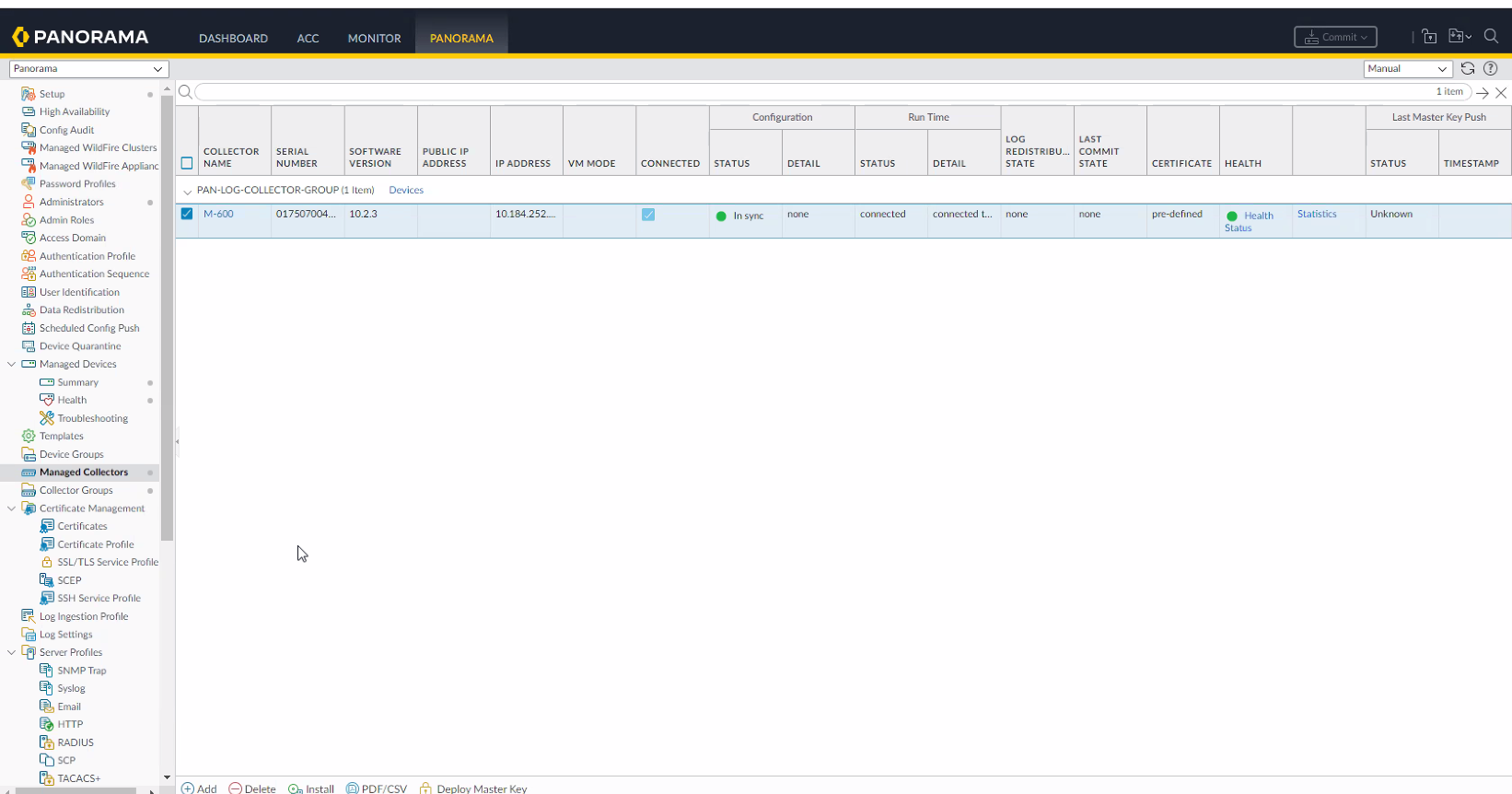

- The log collector status is now seen "In sync" and "connected".
Additional Information
If the issue persists, then one may need to reset the sc3 on LC and re-add the auth key. Refer to How to Reset Communication between Firewall and Panorama
