Fragmented packets received on Aggregated Interfaces are silently dropped due to reassembly failure.

• Aggregated Interface(AE) has members on multiple slots.
• The peering device sends fragments of the same IP packet across different AE members.
• These fragments land on different slots and cannot be reassembled.
• Packets are silently dropped due to reassembly failure.

• PAN-OS 8.1, 9.0, 9.1 and 10.0
• Multi-slot firewalls (PA-7050/PA-7050b, PA-7080/PA-7080b, PA-5450)

• On multi-slot systems running Pan-OS 8.1, 9.0, 9.1, or 10.0,  a fragmented IP packet can only be reassembled if all its fragments are received by the same slot.

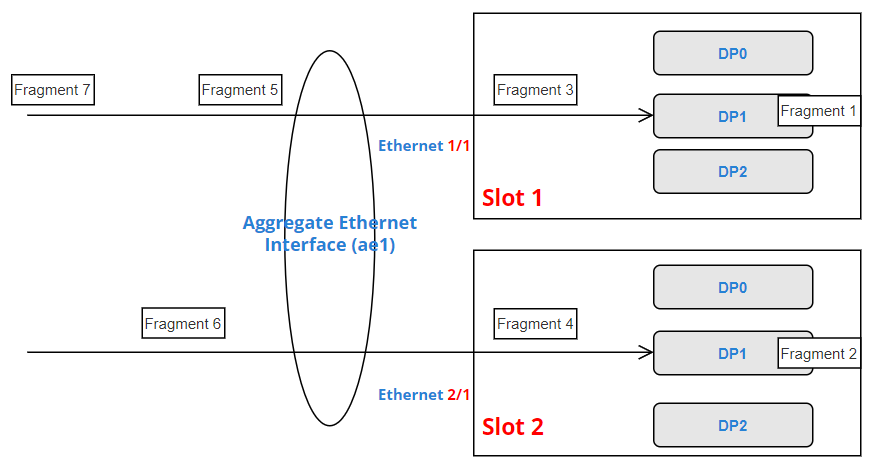

• In the below scenario, fragment 1&3 are received on ethernet1/1 which belongs to slot1 and fragment 2&4 are seen on ethernet2/1 which belongs to slot2.
  • Prior to the Pan-OS 10.1 :
    • Fragment Handling on the multi-slot firewall
    • There was no mechanism for DP in one slot to send fragments to a DP in another slot.
      Fragments of the same IP packet received on different slots are eventually dropped.

1. From Pan-OS 10.1, a new mechanism is implemented to reassemble all fragments of a single IP packet, regardless of the slot on which the fragments are received.
2. In Pan-OS 10.1, fragments of the same packet, received on different slots, are internally forwarded to a designated DP ("reassembly-owner").
3. If the DP that receives the fragments is not the reassembly-owner, it sends the fragments to the reassembly-owner. The reassembly-owner may be on the same or on a different slot.

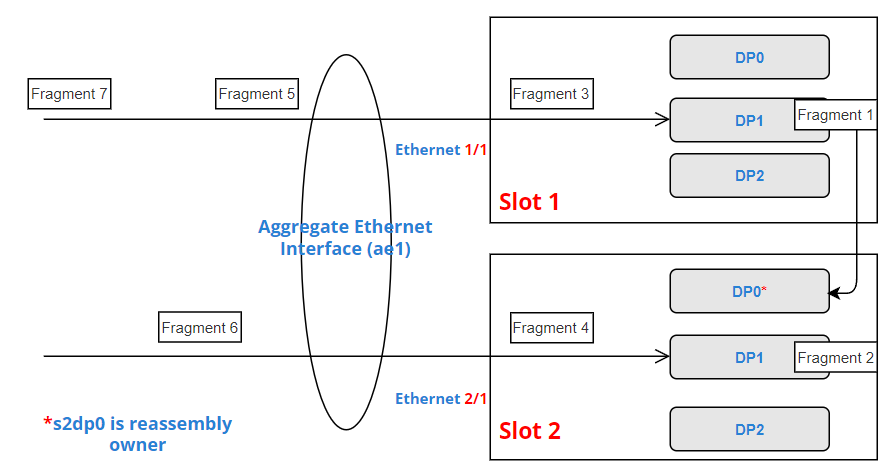

New Fragment Handling on the multi-slot firewall from Pan-OS 10.1


• The default setting on PA-7000 series running Pan-OS 10.1 is Self which is the fragment handling behavior prior to the Pan-OS 10.1.

admin@firewall> show ae-frag redistribution-policy
Reassemble Owner Policy: Self

• After upgrading to Pan-OS 10.1, run the below command to enable the new way of handling fragments.

admin@firewall> set ae-frag redistribution-policy
> fixed   select a fixed DP
> hash    distribution based on hash
> self    DP which received the frag

admin@firewall> set ae-frag redistribution-policy hash

• hash: Use this method to assign a reassembly owner and handle the fragmented packets
• fixed: enables selecting one particular dataplane in the system to handle ALL fragments that arrive at the firewall. This is used for troubleshooting purposes only!
• Self: this is the fragment handling behavior prior to the Pan-OS 10.1
• On PA-5450 firewall, the new way is the only way of handling fragments, there is no option to enable the pre-10.1 behavior.

Aggregate Group Members on Multiple Cards
