How to remove Explicit Proxy configuration from Panorama
1648
Created On 01/05/24 15:36 PM - Last Modified 04/27/24 02:45 AM
Objective
To remove the configuration of Explicit Proxy from Panorama's Cloud Services Plugin, under "Panorama > Cloud Services > Configuration > Mobile Users - Explicit Proxy".

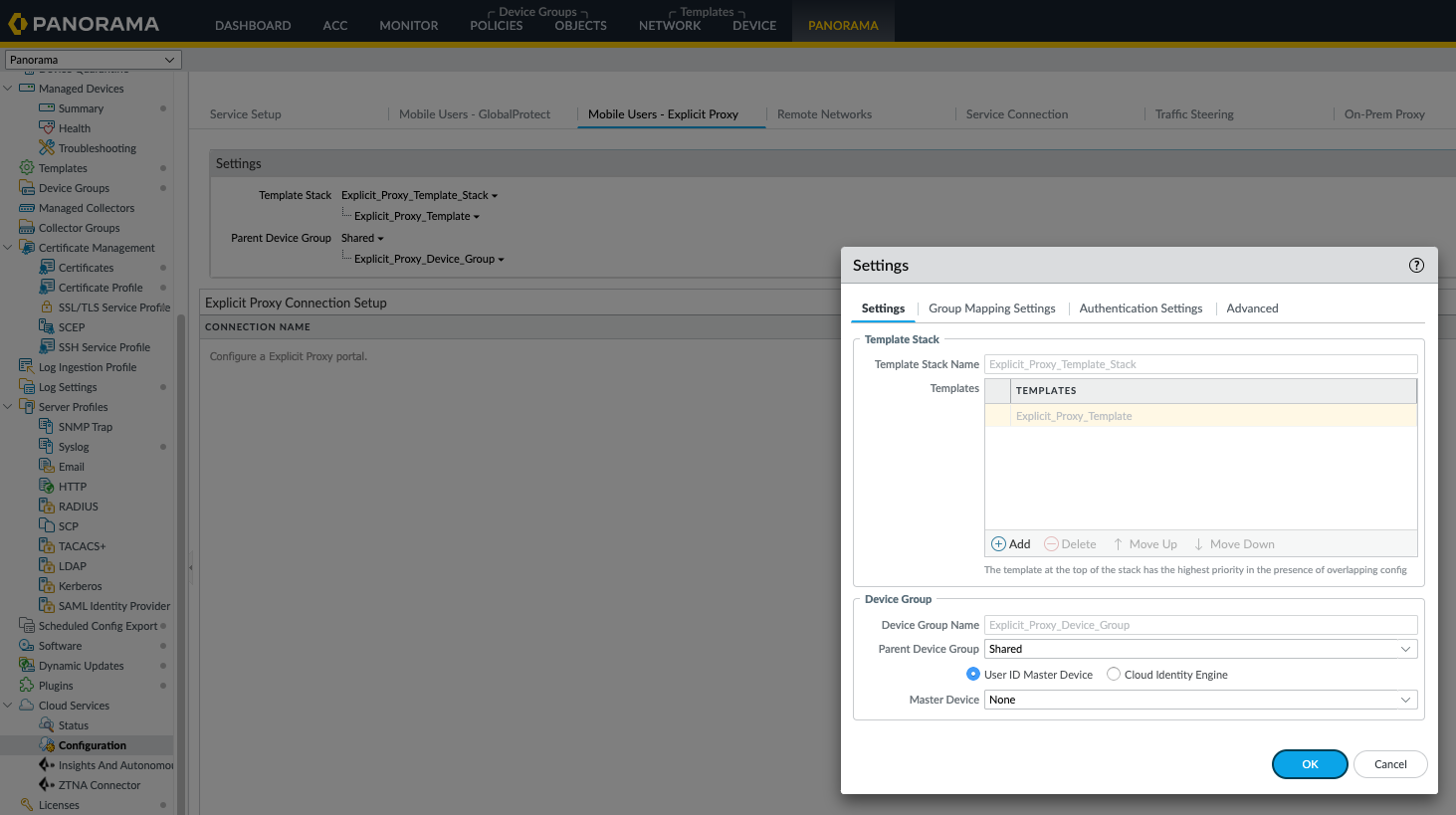

From the WebUI, we can see that the Template, Template Stack, and Device Group created for Explicit Proxy are greyed out, and therefore cannot be removed:
Environment
- Panorama managed Prisma Access
- PAN-OS 10.2 and above
- Explicit Proxy setup
Procedure
- First from CLI, we can check the current configuration related to Explicit Proxy by running the below commands:
> set cli config-output-format set
> configure
# show | match "explicit\|Explicit"
set device-group Explicit_Proxy_Device_Group
set plugins cloud_services mobile-users-explicit-proxy onboarding
set template Explicit_Proxy_Template
set template-stack Explicit_Proxy_Template_Stack templates Explicit_Proxy_Template
set template-stack Explicit_Proxy_Template_Stack settings
set readonly template Explicit_Proxy_Template id 11010
set readonly template-stack Explicit_Proxy_Template_Stack id 11011
set readonly device-group Explicit_Proxy_Device_Group id 11012
set readonly plugins cloud_services mobile-users-explicit-proxy onboarding
- The "readonly" entries can be disregarded as they will automatically be deleted once these Objects are removed.
- Now delete the configurations from CLI one by one:
# delete template-stack Explicit_Proxy_Template_Stack settings
[edit]
# delete template-stack Explicit_Proxy_Template_Stack templates Explicit_Proxy_Template
[edit]
# delete template Explicit_Proxy_Template
[edit]
# delete device-group Explicit_Proxy_Device_Group
[edit]
# delete plugins cloud_services mobile-users-explicit-proxy
[edit]
# delete template-stack Explicit_Proxy_Template_Stack
[edit]
- Commit the configuration.
# commit
# exit
Additional Information
- Note that we have two "delete" commands for the Template stack, because after running the first "delete", we would still have a remnant config for the Template Stack as seen below:
set template-stack Explicit_Proxy_Template_Stack templates
set readonly template-stack Explicit_Proxy_Template_Stack id 11011
- Otherwise a Commit would fail with the below error message:
> show jobs id <ID>
Enqueued Dequeued ID Type Status Result Completed
------------------------------------------------------------------------------------------------------------------------------
2024/01/05 11:12:18 11:12:18 <ID> Commit FIN FAIL 11:13:53
Warnings:
Details:Validation Error:
devices -> localhost.localdomain -> template-stack -> Explicit_Proxy_Template_Stack is missing 'settings'
