Firewall stuck at initial stage in a HA environment after configuring the group id via CLI.

• Firewall configured with a group id using the CLI command.
  • set deviceconfig high-availability group group-id 09
• Once the device is configured with 0x, lets take the x as 9. The device will move to non-functional state.

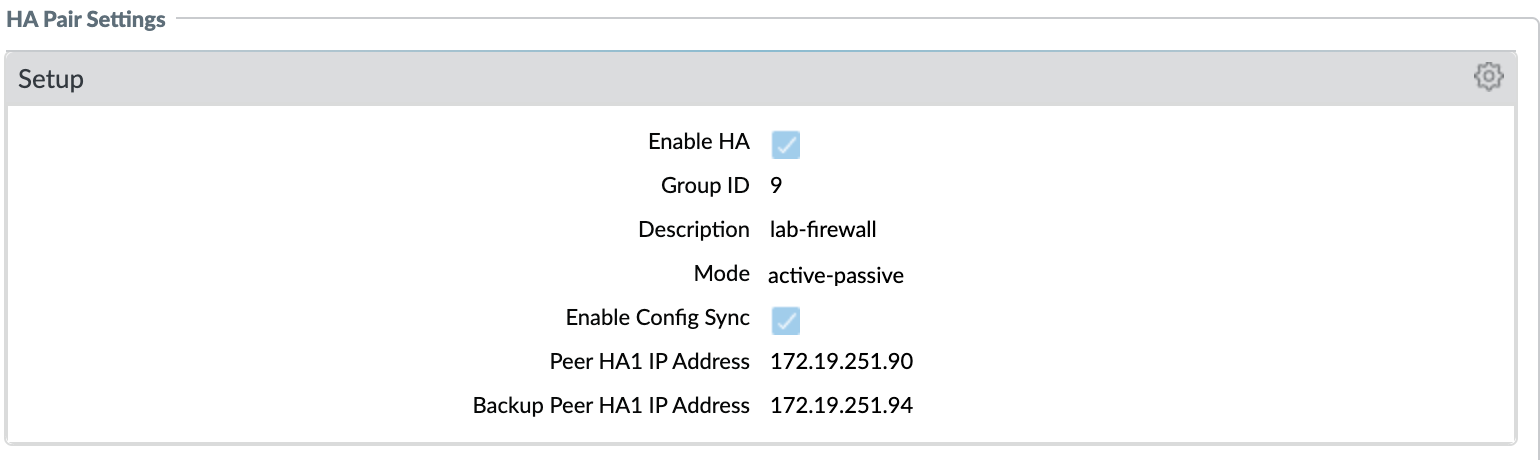

• The GUI displays the group id as 9.

• But when you check from the CLI, you will notice the group-id seen as 09

show deviceconfig high-availability

    group-id 09;
    description "active-passive";
  .............

•  If you check the system state for this device, you will find it was set to 0.

admin@sj(non-functional)> show system state | match group-id
ha.app.local.info: { 'cfgsync-reason': Peer disconnected with commit, 'group-id': 0,

• Palo Alto Firewalls
• Supported PAN-OS
• High Availability Setup

Software issue parsing the xml config. The issue happens under the following 2 conditions.

• When the user configures the group id from the CLI similar to 0x.
• or when the user modifies the config from the XML and uploads the file to the firewall.

1. The issue is resolved in PAN-OS 11.0.4, 11.1.3, 10.2.11 or higher versions.
2. Upgrading should resolve the issue.
3. As a workaround, reconfigure the group id via the cli without using the 0x format. example below:

• •  set deviceconfig high-availability group group-id 9
