IP-user mapping is not seen on Firewall when the user is connected to internal gateway
7618
Created On 10/20/23 22:14 PM - Last Modified 12/06/23 16:05 PM
Symptom

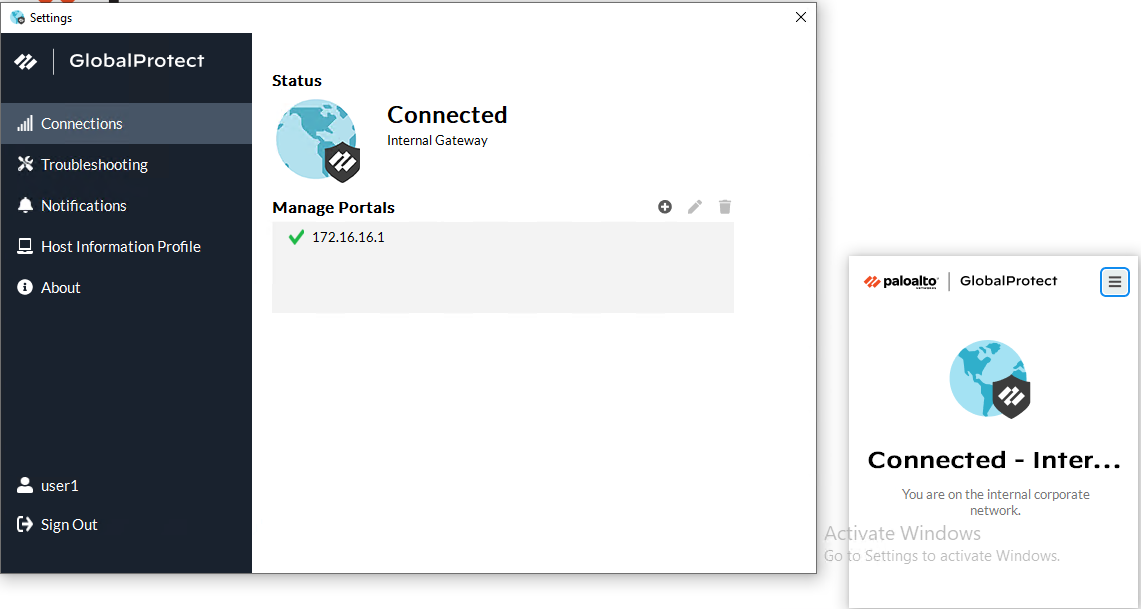

- GlobalProtect application shows it is connected to internal gateway
- The ip-user mapping (show user ip-user-mapping all) for the user is not seen on the Firewall
Environment
- Palo Alto Firewalls
- PAN-OS 9.1 and above
- Globalprotect(GP) Internal Gateway
- IP User Mapping
- Globalprotect App
Cause
- Firewall only has the ip-user mapping when the user is authenticated to the internal gateway
- GP Application displaying "Connected-Internal" status does not mean the user is authenticated
Resolution
- Verify the Globalprotect application is actually connected and authenticated to the internal gateway. Details below

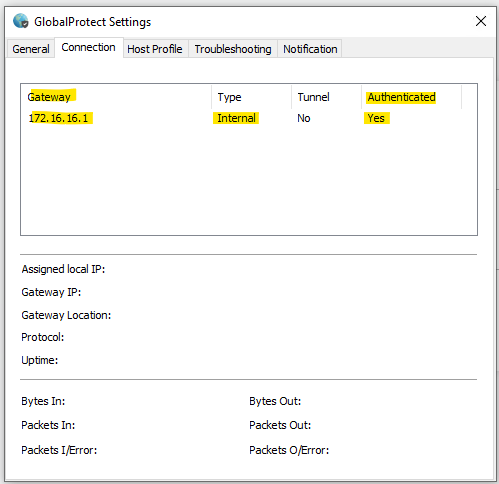

- Below Globalprotect app version, 6.0.x, authenticated internal gateway information is available under the Connection tab. Make sure authenticated is "Yes"
- From GlobalProtect app version 6.0.x and above gateway information has been moved under Host Information Profile

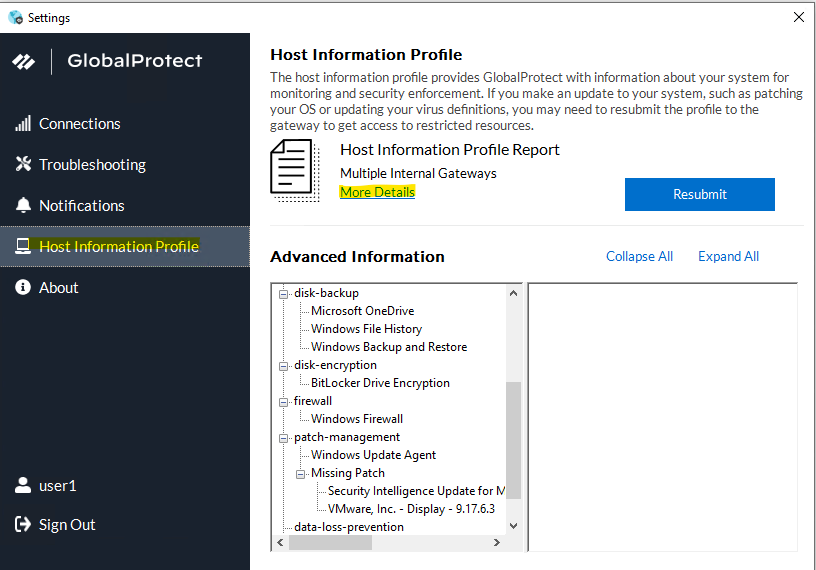

- Click on Host Information Profile
- On the right side, click on More Details

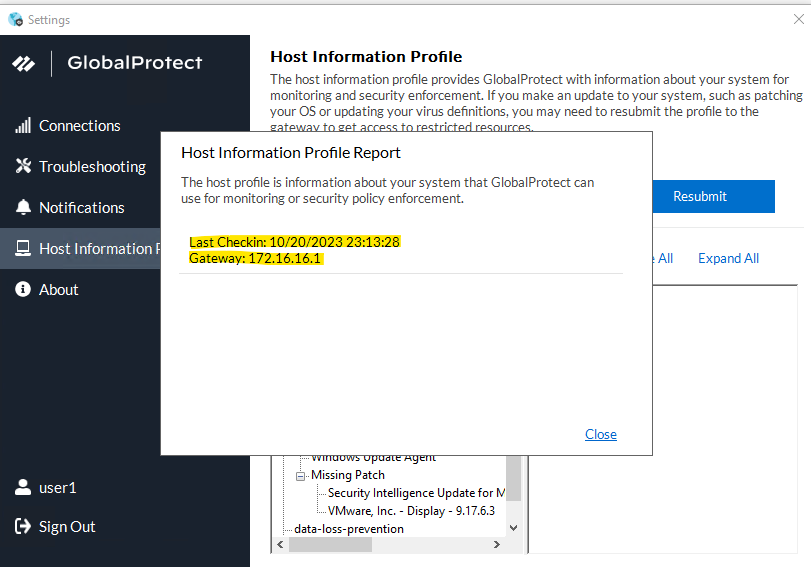

- Last Checking time provides the authenticated time
- If the user is not authenticated to the internal gateway troubleshoot why the connection and the authentication are failing
