Tunnel "Round Trip Time (RTT)" information is not displayed on the Insights OR Strata Cloud Manager dashboard.
1252
Created On 10/06/23 06:05 AM - Last Modified 03/18/24 17:57 PM
Symptom
Tunnel "Round Trip Time (RTT)" is not displayed correctly for Insights and Strata Cloud Manager.
-
Insights
Insights > Tunnels > Median Tunnel Round Trip Time (10 tunnels)
- Strata Cloud Manager

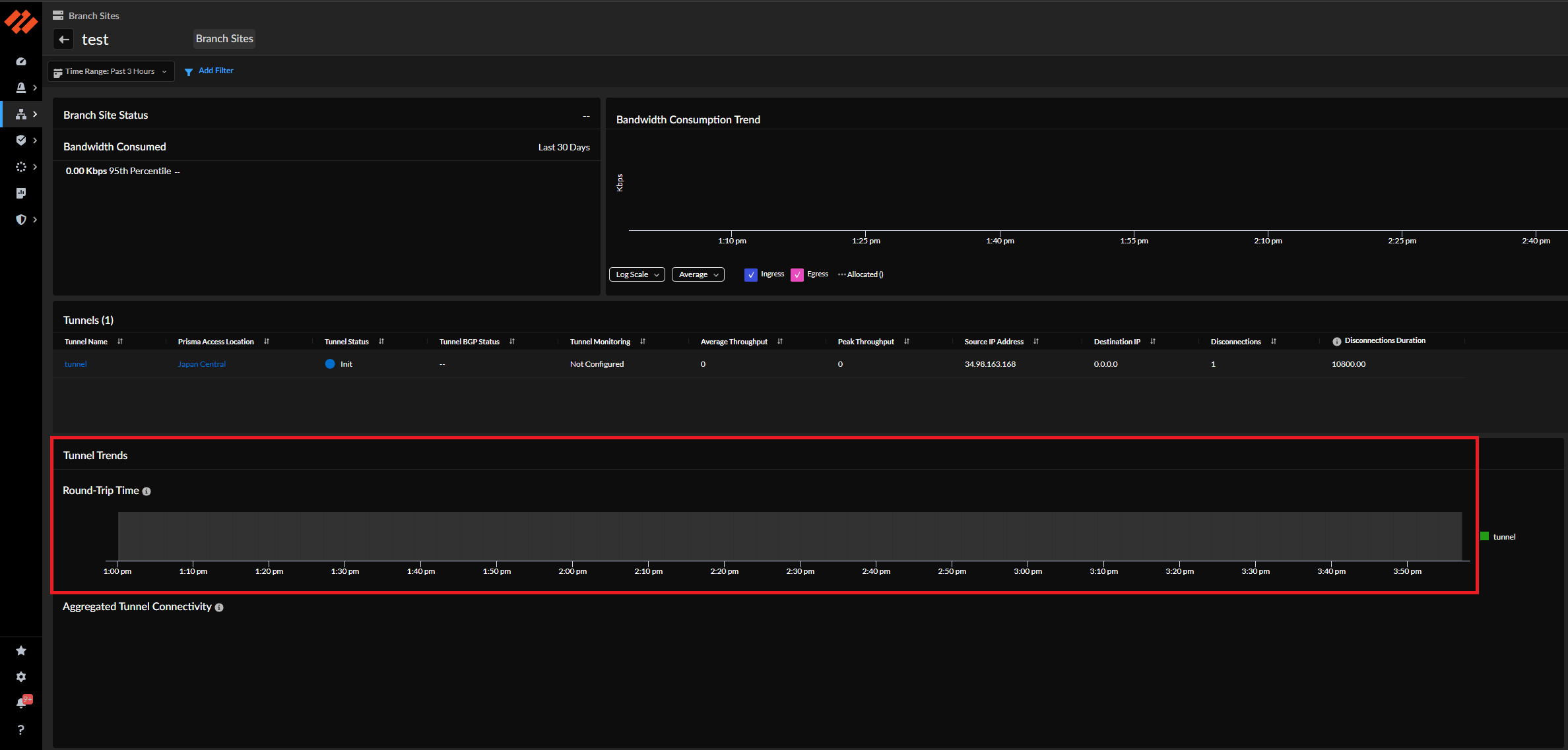

Monitor -> Branch Sites -> Select the target <Prisma Access Sites> ->Tunnel Trends
Environment
- Prisma Access
- Insights
- Strata Cloud Manager
Cause
As per specifications, the Tunnel "Round Trip Time (RTT)" value will only be populated if Tunnel Monitoring is configured correctly.
Therefore this is an expected behaviour.
Resolution
Configure Tunnel Monitoring and ensure that the Status is "Up" for the tunnels where the status is not displayed.
Additional Information
Refer to the tech doc sites of Insights and Strata Cloud Manager for the information regarding Tunnel Round Trip Time.
