How do we recreate TLS certificates and configure them in Prisma Cloud Compute Console?

• Prisma Cloud Self-Hosted

1. Firstly, in order to do all of these things, we need to have openssl installed in our host.



Certificates to recreate:

• console-cert.pem

• console-key.pem

Target directory: /var/lib/twistlock/custom-certificates

For the purpose of this instruction, prior to being transferred to the target directories, all the files will be created and stored in a different folder.

mkdir /var/lib/twistlock/certs-new
cd /var/lib/twistlock/certs-new

2. Prerequisites:

In order to sign the certificates, it is necessary to create the files used by the Certificate Authority:

• req_ca
• san.cnf
• extFile.ext

Please find the file contents in the following sections:

• req_ca (CA Requirements)

echo "[ req ]
default_bits = 4096
default_md = sha256
distinguished_name = req_distinguished_name
x509_extensions = req_ext
prompt = no
[ req_distinguished_name ]
C=US
ST=CA
O=MyOrg, Inc.
CN=rootCA
[ req_ext ]
basicConstraints = critical, CA:true" >req_ca

• Subject Alternative Name (san.cnf)

echo "[req]
default_bits = 2048
distinguished_name = req_distinguished_name
req_extensions = req_ext
x509_extensions = x509_ext
prompt = no
[ x509_ext ]
subjectKeyIdentifier = hash
authorityKeyIdentifier = keyid,issuer
[ req_distinguished_name ]
C = US
ST = CA
O = MyOrg, Inc.
CN = 10.180.29.195
[ req_ext ]
basicConstraints = CA:FALSE
keyUsage = digitalSignature, keyEncipherment
subjectAltName = @alt_names
[alt_names]
IP.1 = 10.180.29.195
IP.2 = 127.0.0.1" >san.cnf

• extFile.ext

echo "[req]
basicConstraints = CA:FALSE
keyUsage = digitalSignature, keyEncipherment
subjectAltName = @alt_names
[alt_names]
IP.1 = 10.180.29.195
IP.2 = 127.0.0.1"> extFile.ext

3. Creation of Certificate Authority

• Creating a self-signed CA:

Generate private key for CA certificate

openssl genrsa -out MyCA-key.pem

Create self-signed CA certificate using the key above

openssl req -x509 -new -nodes -key MyCA-key.pem -sha256 -days 1825 -out MyCA-cert.pem -config req_ca

Now we have our own CA certificate with which we will sign other certificate requests

Remember

MyCA-key.pem Is just the CA private key
MyCA-cert.pem is the self-signed CA certificate using MyCA-key.pem as private key

4. User certificate encryption

Private key for user certificate encryption

openssl genrsa -out user-key.pem 2048

Create a certificate request

openssl req -new -config san.cnf -key user-key.pem -out user-request.pem

Now we have our own certificate request signed by our own private key for user certificate encryption

5. Signing the user certificate by the CA Authority

• Sign the user certificate request with the CA created (MyCA-cert.pem) using its private key created (MyCA-key.pem)
• Private key for user certificate encryption

openssl x509 -req -in user-request.pem -CA MyCA-cert.pem -CAkey MyCA-key.pem -CAcreateserial -days 1825 -sha256
-extfile extFile.ext -extensions req -outform PEM -out user-cert.pem

6. Creation of all needed certificates for Custom Certificates

• HTTP console certificates:
• Create HTTPS Private Key (MyCA-key-https.pem)

openssl genrsa -out MyCA-key-https.pem

• Create and HTTPS self-signed CA certificate (MyCA-cert-https.pem) using the key above

openssl req -x509 -new -nodes -key MyCA-key-https.pem -sha256 -days 1 -out MyCA-cert-https.pem -config req_ca

• Create a console private key (console-key.pem)

openssl genrsa -out console-key.pem 2048

• Create a console certificate (console-cert.pem) using the private key above

openssl req -new -config san.cnf -key console-key.pem -out user-request.pem
openssl x509 -req -in user-request.pem -CA MyCA-cert-https.pem -CAkey MyCA-key-https.pem -CAcreateserial -days
1 -sha256 -extfile extFile.ext -extensions req -outform PEM -out console-cert.pem
chmod 777 console-key.pem

7. Twistlock Console Configuration for Custom Certificates

• Create a folder custom-certificates:

mkdir /var/lib/twistlock/custom-certificates

• Copy or move the certificates created to the "custom-certificates" directory:

pwd
ls -la
cp * /var/lib/twistlock/custom-certificates/
ls -la /var/lib/twistlock/custom-certificates/

• Restart the docker console:

docker ps
docker restart twistlock_console
docker ps

8. Check docker console certificates

• Access the docker console and check that indeed there is a folder with custom certificates:

docker ps
docker exec -ti <docker_console_container_id> bash
ls -la /var/lib/twistlock/
ls -la /var/lib/twistlock/custom-certificates

9. Checking Custom Certificate in Console

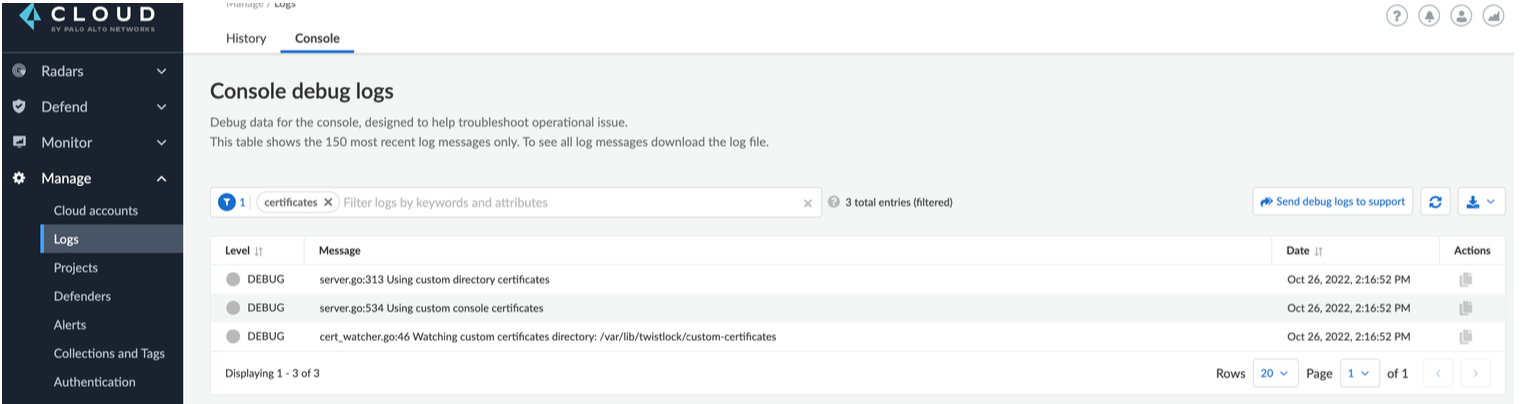

Go to Manage > Logs > Console, search for Custom certificates, and search certificates
