Azure Cloud NGFW 预配状态为“失败”

Azure Cloud NGFW 预配状态为“失败”

2000
Created On 12/03/24 19:34 PM - Last Modified 08/13/25 02:34 AM


Symptom

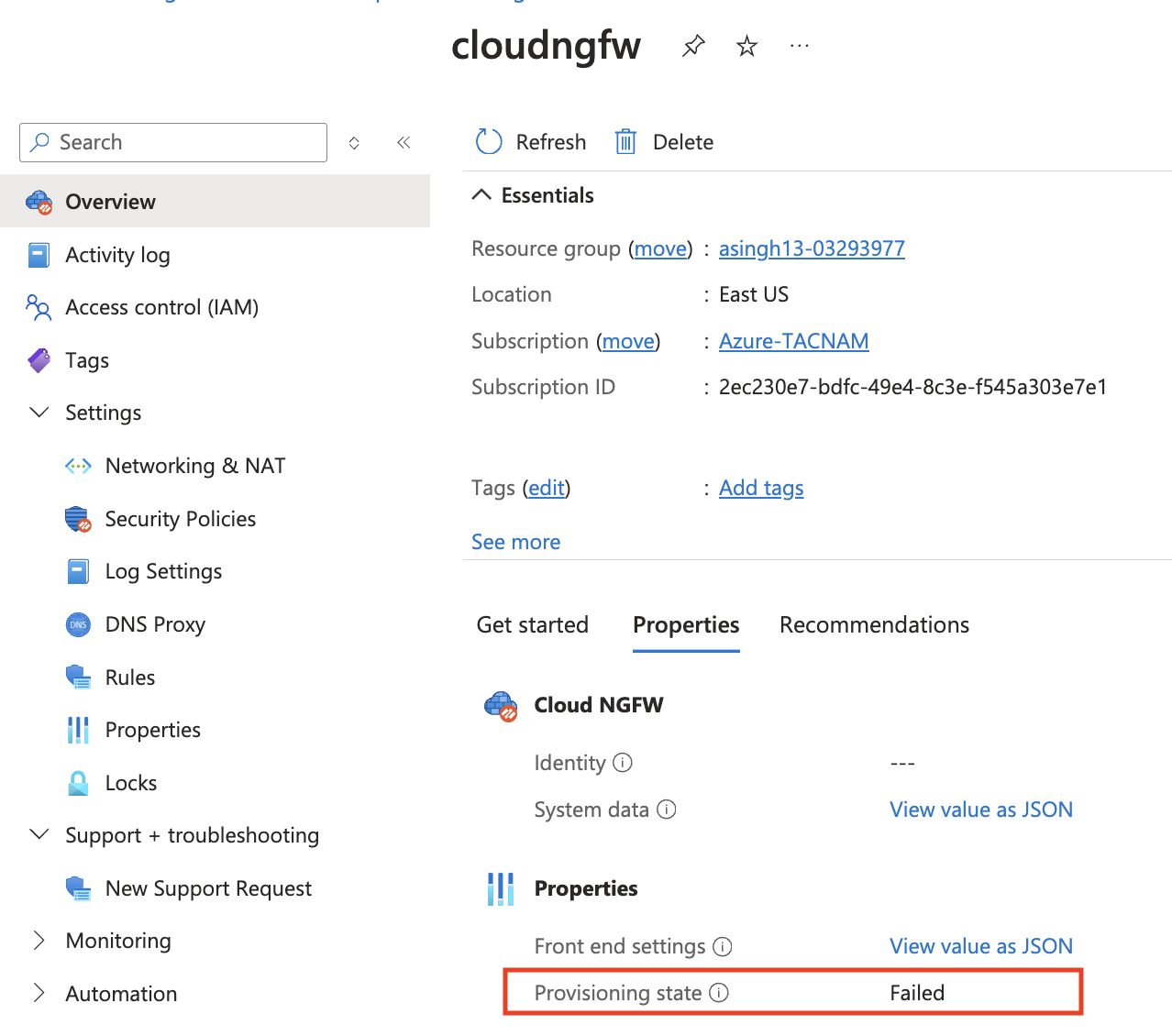

Azure Cloud NGFW 配置状态失败。




Environment


云 NGFW Azure



Cause


配置无效:源NAT已配置,但未提供源 nat IP

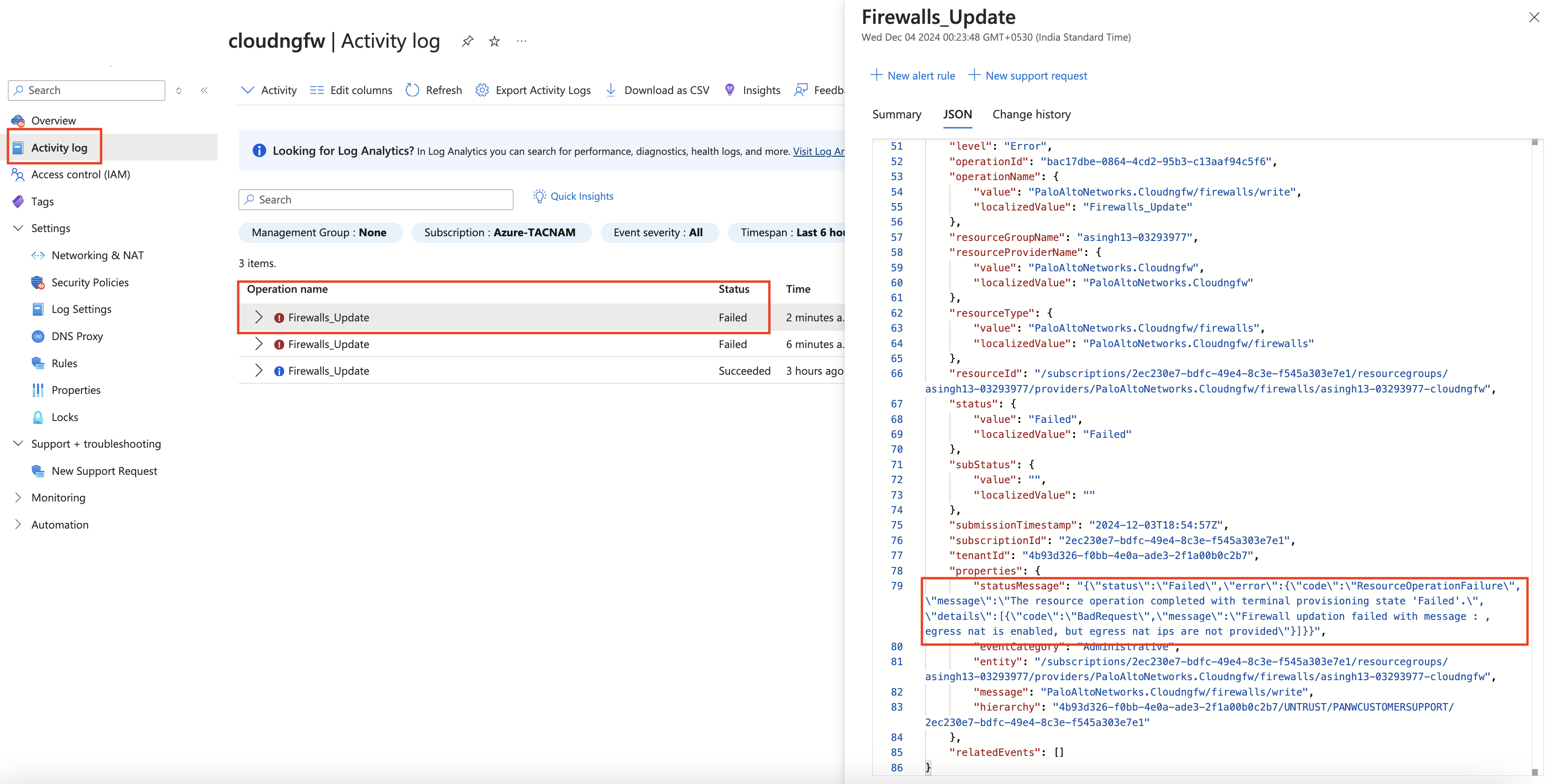

"statusMessage": "{\"status\":\"Failed\",\"error\":{\"code\":\"ResourceOperationFailure\",\"message\":\"The resource operation completed with terminal provisioning state 'Failed'.\",\"details\":[{\"code\":\"BadRequest\",\"message\":\"Firewall updation failed with message : , egress nat is enabled, but egress nat ips are not provided\"}]}}",

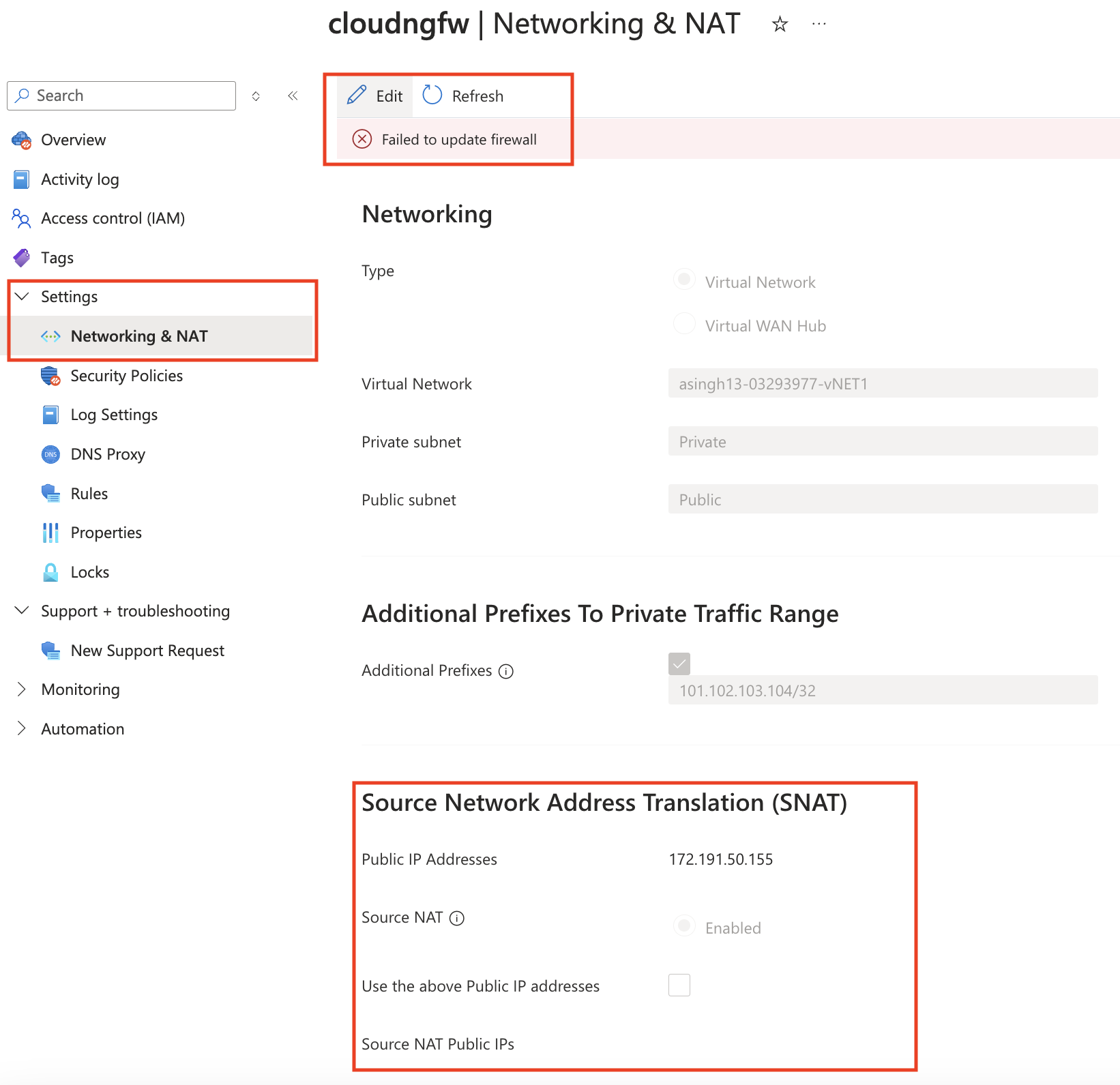

Azure_CNGFW_Networking & NAT.png



Resolution

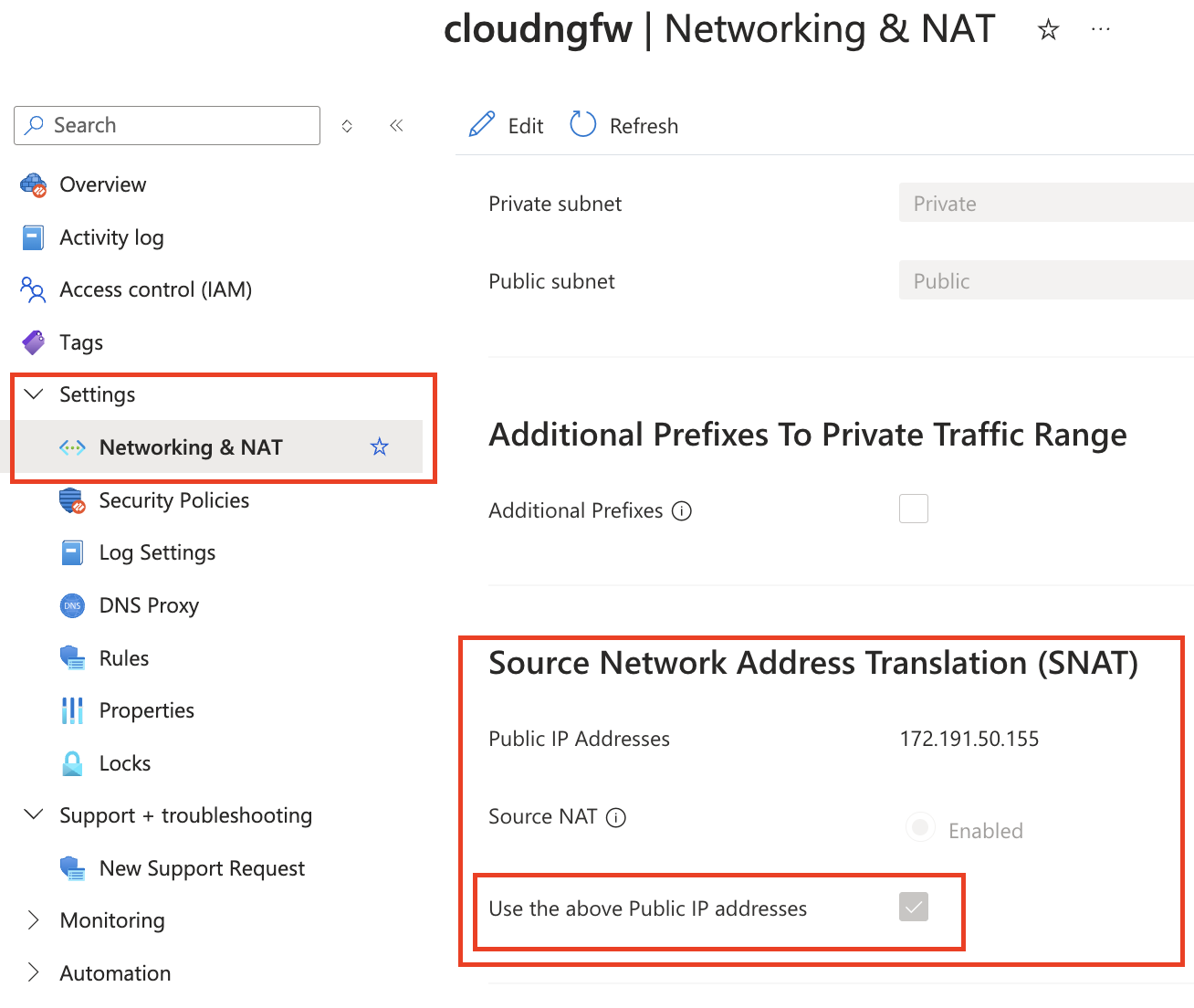

启用出口NAT或源NAT时,请确保配置NAT IP。




Additional Information


不适用
