Threat traffic not detected by the firewall
5155
Created On 09/13/24 08:58 AM - Last Modified 10/16/25 06:27 AM
Symptom
When test threat traffic is being run through the firewall, it is not detecting it as threat.
Examples of how to generate test threat traffic:
How to Check if the Vulnerability Module is Working Properly
How to Test Threat Prevention Using a Web Browser
To tell whether the firewall is detecting the traffic as threat, we can look at the output of the session details.
> show session id 21834
Session 21834
c2s flow:
source: 172.16.212.10 [L3-Trust]
dst: 18.206.19.26
proto: 6
sport: 64925 dport: 80
state: DISCARD type: FLOW
src user: unknown
dst user: unknown
s2c flow:
source: 18.206.19.26 [L3-Untrust]
dst: 10.194.45.212
proto: 6
sport: 80 dport: 1493
state: DISCARD type: FLOW
src user: unknown
dst user: unknown
start time : Fri Sep 13 16:33:43 2024
timeout : 90 sec
time to live : 81 sec
total byte count(c2s) : 3819
total byte count(s2c) : 66
layer7 packet count(c2s) : 10
layer7 packet count(s2c) : 1
vsys : vsys1
application : web-browsing
rule : Trust-to-Untrust
service timeout override(index) : False
session to be logged at end : True
session in session ager : True
session updated by HA peer : False
address/port translation : source + destination
nat-rule : Trust-NAT(vsys1)
layer7 processing : completed
URL filtering enabled : False
session via syn-cookies : False
session terminated on host : False
session traverses tunnel : False
session terminate tunnel : False
captive portal session : False
ingress interface : ethernet1/6
egress interface : ethernet1/3
session QoS rule : N/A (class 4)
tracker stage firewall : mitigation tdb reset
end-reason : threat
The "end-reason" should be stated as "threat".
Environment
The missing profile or application override is a general configuration / feature that applies to any PAN-OS version and any firewall model.
Cause

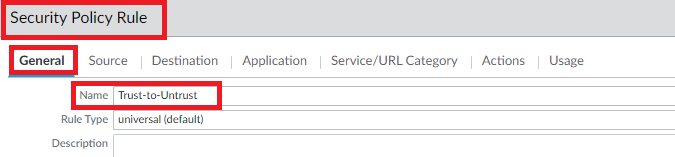

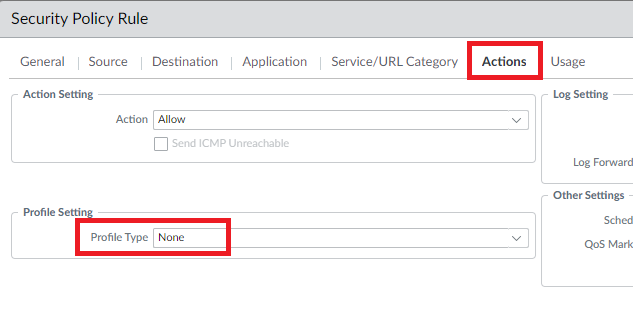

One reason the traffic is not being detected as threat is that the security policy being hit by the traffic does not have Profiles configured.

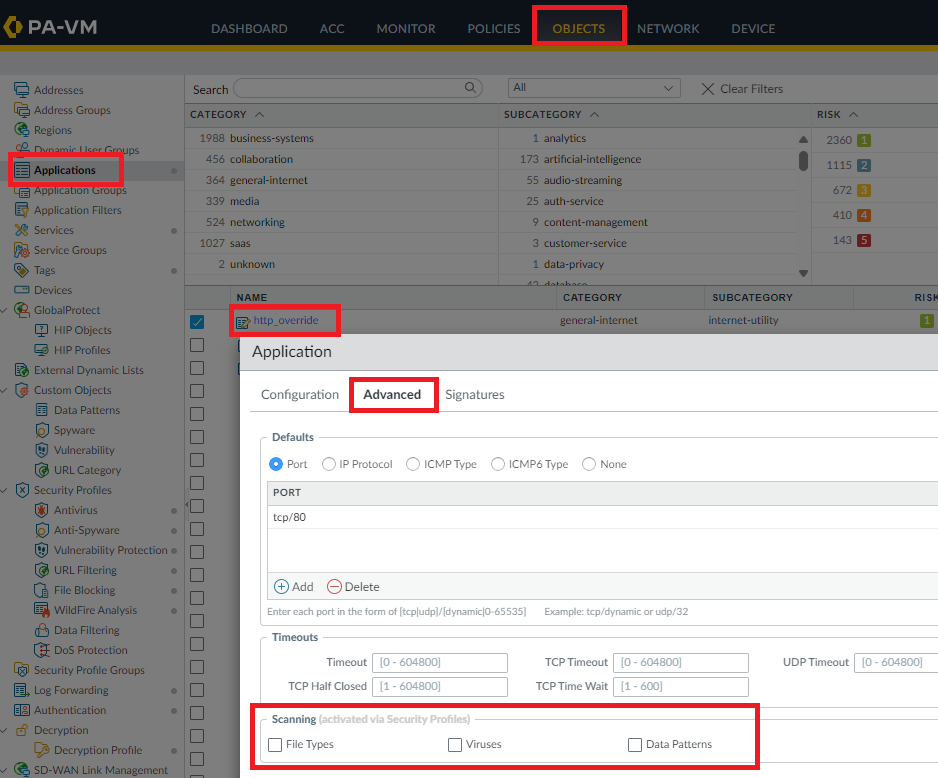

Another reason may be that an Application Override policy was configured that is matching the threat traffic.
If an Application Override policy has been configured and the custom application scanning options is unchecked, the threat engine will stop inspecting the traffic as soon as the custom application is identified.
Resolution
- Have security profiles configured in the security policy
- Ensure that threat traffic is not matching an Application Override policy
Additional Information
How to Check if the Vulnerability Module is Working Properly
How to Test Threat Prevention Using a Web Browser
