Unable to edit DNS server and DNS Suffix configuration on the Global Protect Gateway for Mobile Users on a Panorama.
1781
Created On 02/28/25 08:14 AM - Last Modified 05/09/25 02:31 AM
Symptom
- On Panorama managed Prisma Access:
- Editing the DNS server and DNS Suffix configuration on the Global Protect Gateway for Mobile Users does not work.

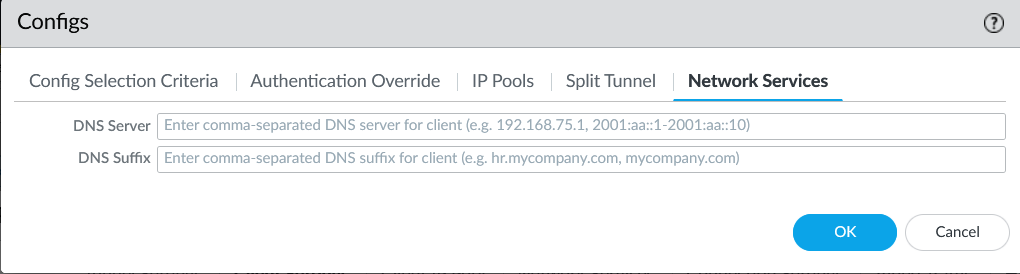

- GUI Path: Network > GlobalProtect > Gateways > (select gateway name) > Agent > Client Settings > (select config name) > Network Services
Environment
- Panorama managed Prisma Access
- Cloud Service Plugin: 5.1
Resolution
- Use the CLI commands to edit the DNS server and DNS suffix settings.
- The command is given below to set the DNS server as 10.0.0.1/32.
admin@Panorama> configure
admin@Panorama# set template Mobile_User_Template config vsys vsys1 global-protect global-protect-gateway GlobalProtect_External_Gateway remote-user-tunnel <gateway-config-name> remote-user-tunnel-configs <gateway-config-name> dns-server 10.0.0.1/32
admin@Panorama# exit
admin@Panorama> show config candidate
...
remote-user-tunnel-configs {
<gateway-config-name> {
...
retrieve-framed-ip-address no;
no-direct-access-to-local-network no;
dns-server 10.0.0.1/32;
