Prisma Cloud : All JSON attributes not being displayed in the auto-suggestion feature of Investigate Tab across various Cloud Providers

Prisma Cloud : All JSON attributes not being displayed in the auto-suggestion feature of Investigate Tab across various Cloud Providers

959
Created On 10/04/24 08:17 AM - Last Modified 10/07/24 02:25 AM


Symptom


​​​​​Example
  • As per AWS public docs, DestinationDescription - Amazon Data Firehose, there are 11 Destination types available for API 'aws-kinesis-firehose-delivery-stream'

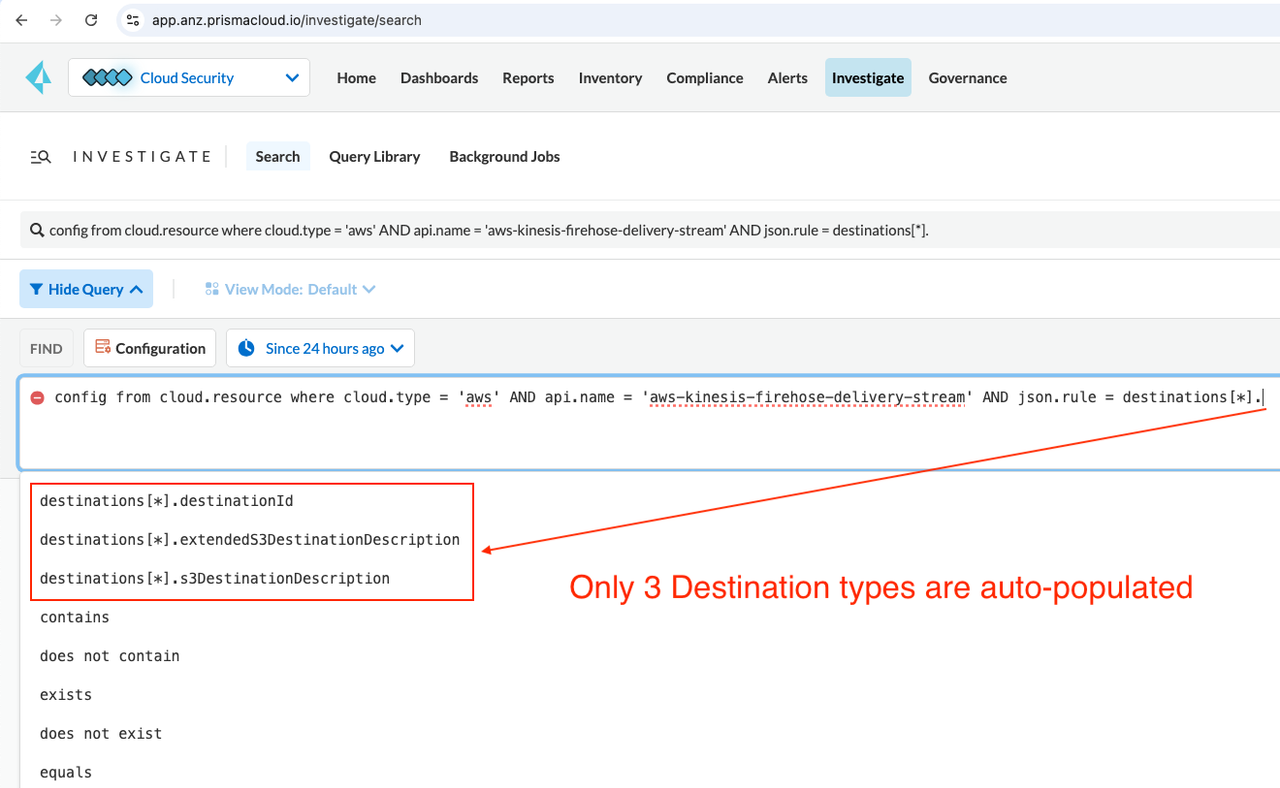

  • However, when running the following RQL in Investigate tab, Prisma Cloud is only auto-populating 3 Destination Types
  1. DestinationId
  2. ExtendedS3DestinationDescription
  3. S3DestinationDescription

RQL

config from cloud.resource where cloud.type = 'aws' AND api.name = 'aws-kinesis-firehose-delivery-stream' AND json.rule = destinations[*].







Environment


  • Prisma Cloud
  • All Cloud Providers


Cause


  • Few JSON attributes are structured as an array
  • The RQL auto-complete capability of the json.rule filters queries for resources fields and all other APIs in Prisma Cloud on a best effort basis and it is not exhaustive
  • All possible attributes (Eg. Destination Types in the above example) or all possible values of all field keys in the resource JSON is not a feasible solution in the auto-complete functionality
  • The functionality is provided more for ease of use allowing the user to select vs. type capability


Resolution


  • While querying via the RQL, you can type out the necessary json.rule filter criteria and is the de-facto recommendation whenever the necessary value does not appear in the visual auto-complete selection

Example

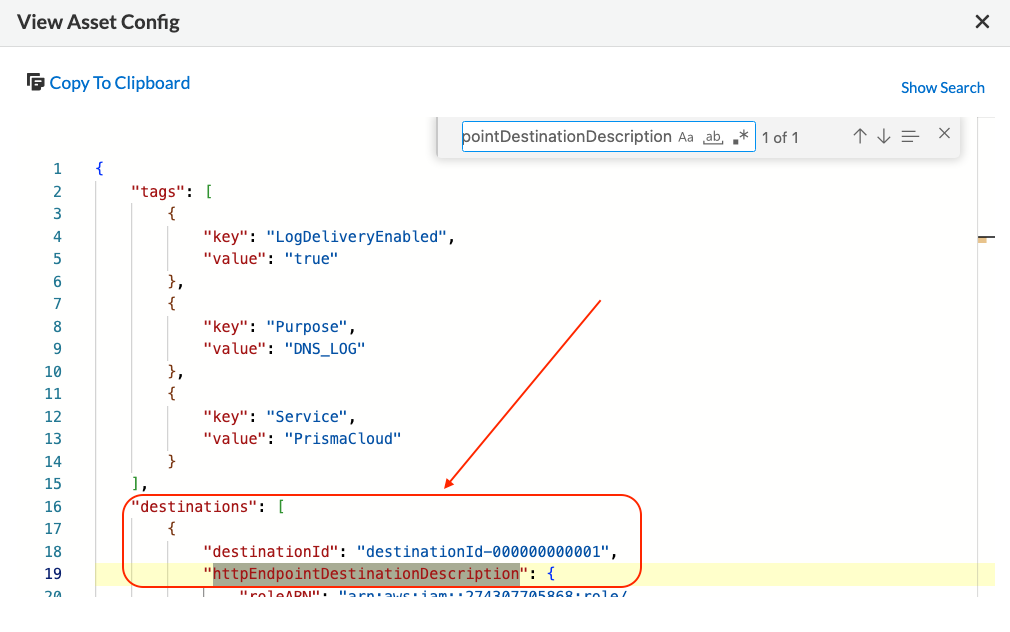

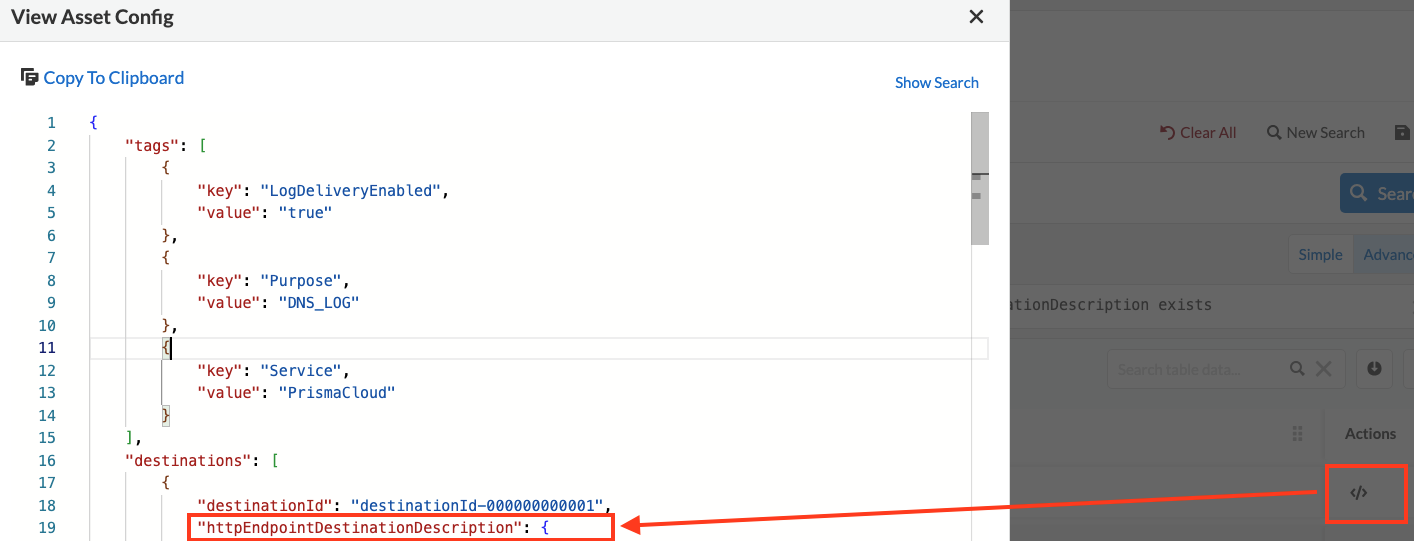

  • When other Destination Types like httpEndpointDestinationDescription, that are described in DestinationDescription - Amazon Data Firehose and not listed by Prisma Cloud, are submitted in the following RQL query, they give expected results

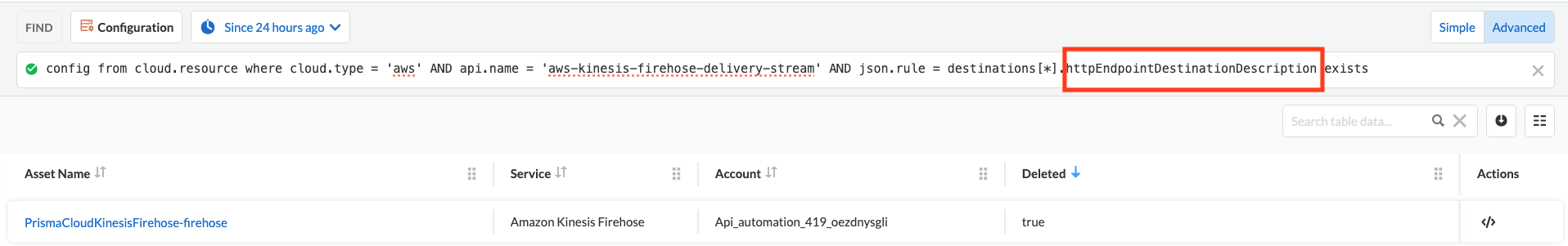

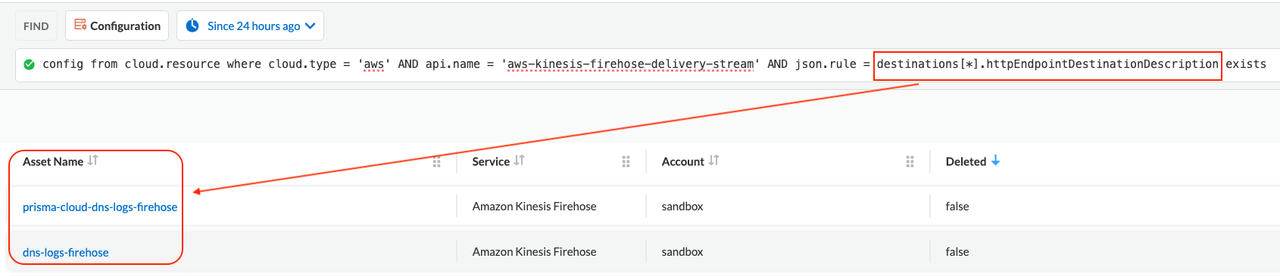

config from cloud.resource where cloud.type = 'aws' AND api.name = 'aws-kinesis-firehose-delivery-stream' AND json.rule = destinations[*].httpEndpointDestinationDescription exists



​​​


Additional Information


  • JSON attributes are case sensitive
  • Example: Use httpEndpointDestinationDescription instead of HttpEndpointDestinationDescription
