The change in the tunnel level BGP ASN is not reflected in the BGP peer for the EasyOnboarding process.

• The change in the tunnel level BGP ASN is not reflected in the BGP peer for the Easy Onboarding process.
• The requirement is to have individual local BGP AS at each new site.
• When attempting the configuration by visiting each branch site as detailed below, the BGP AS setting fails to work and BGP fails to activate.

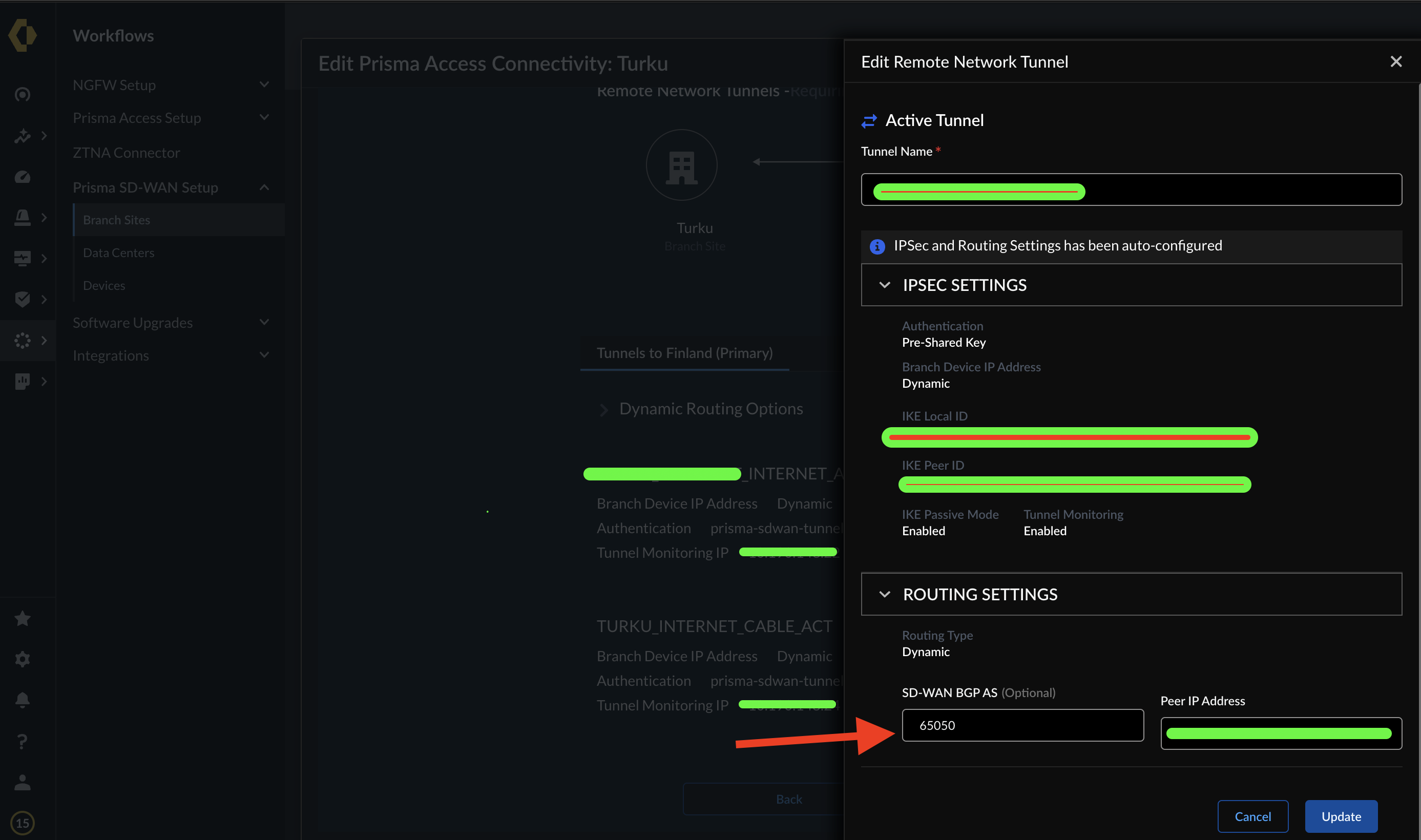

SCM -> workflow -> Prisma SD-WAN Setup -> Branch Sites -> Choose a Site -> Scroll to Bottom -> Prisma Access Connectivity -> Edit Connectivity  -> Step 2 -> Dynamic Routing Options -> Edit -> Edit Remote Network Tunnel  -> SD-WAN BGP AS

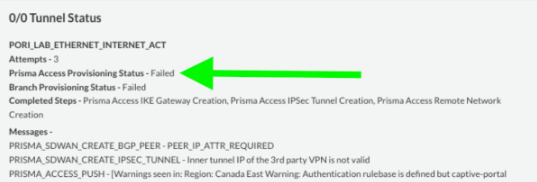

• When the BGP fails and the tunnels are not formed it gives an error "Prisma Access Provisioning Status" as Failed. Screenshots are shown below

• Prisma SD-WAN
• BGP
• Easy Onboarding

Software Issue.

1. The issue has been addressed in version 6.5.2.
2. Upgrading to 6.5.2 will resolve the issue.

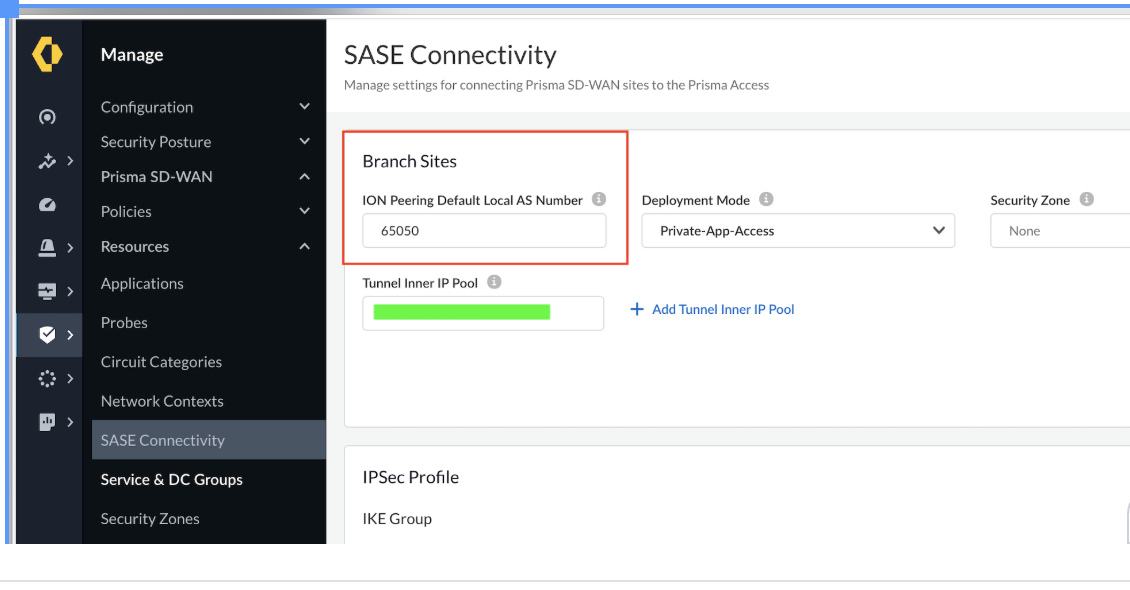

3. As a workaround, Go to the SASE Connectivity illustrated below and adjust the local BGP AS for a site for a temporary fix.
