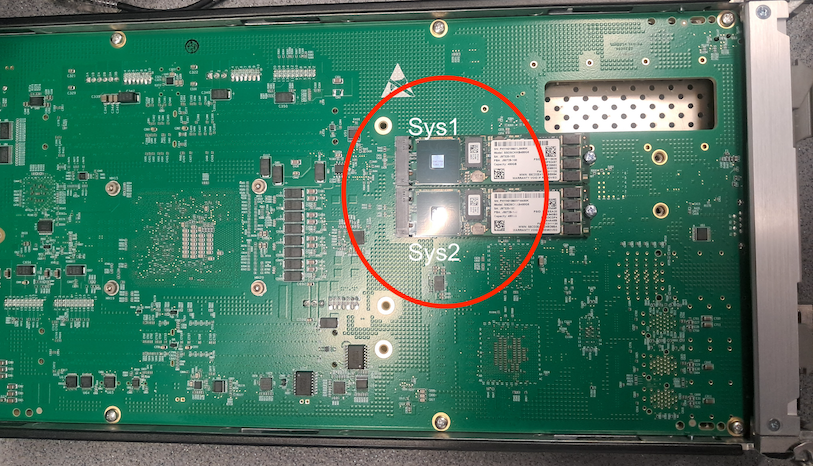

如何识别 PA-5450 MPC 卡上 Sys1 和 Sys2 系统驱动器插槽的位置？

• 按照硬件参考指南更换 PA-5450 平台的故障系统驱动器。
• 如何识别 PA-5450 管理处理器卡 (MPC) 上的 Sys1 和 Sys2 系统驱动器插槽？

• PA-5450 底盘
• 支持的 PAN OS
• 系统驱动器

1. 使用CLI命令记录驱动器的序列号

admin@PA-5450> debug system disk-smart-info disk-1

smartctl 7.1 2020-04-05 r5049 [x86_64-linux-4.18.0-240.1.1.20.pan.x86_64] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Intel S4510/S4610/S4500/S4600 Series SSDs
Device Model:     INTEL SSDSCKKB480G8
Serial Number:    PHY018601L8480K
LU WWN Device Id: 5 5cd2e4 155d1811b
Firmware Version: XC311132
User Capacity:    480,103,981,056 bytes [480 GB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    Solid State Device
Form Factor:      M.2
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-3 T13/2161-D revision 5
SATA Version is:  SATA 3.2, 6.0 Gb/s (current: 6.0 Gb/s)

admin@PA-5450> debug system disk-smart-info disk-2

smartctl 7.1 2020-04-05 r5049 [x86_64-linux-4.18.0-240.1.1.20.pan.x86_64] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Intel S4510/S4610/S4500/S4600 Series SSDs
Device Model:     INTEL SSDSCKKB480G8
Serial Number:    PHYH018603PM480K
LU WWN Device Id: 5 5cd2e4 155d17cb0
Firmware Version: XC311132
User Capacity:    480,103,981,056 bytes [480 GB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    Solid State Device
Form Factor:      M.2
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-3 T13/2161-D revision 5
SATA Version is:  SATA 3.2, 6.0 Gb/s (current: 6.0 Gb/s)

2. 关闭底盘并移除 MPC。请参阅如何更换/访问 PA-5450 MPC

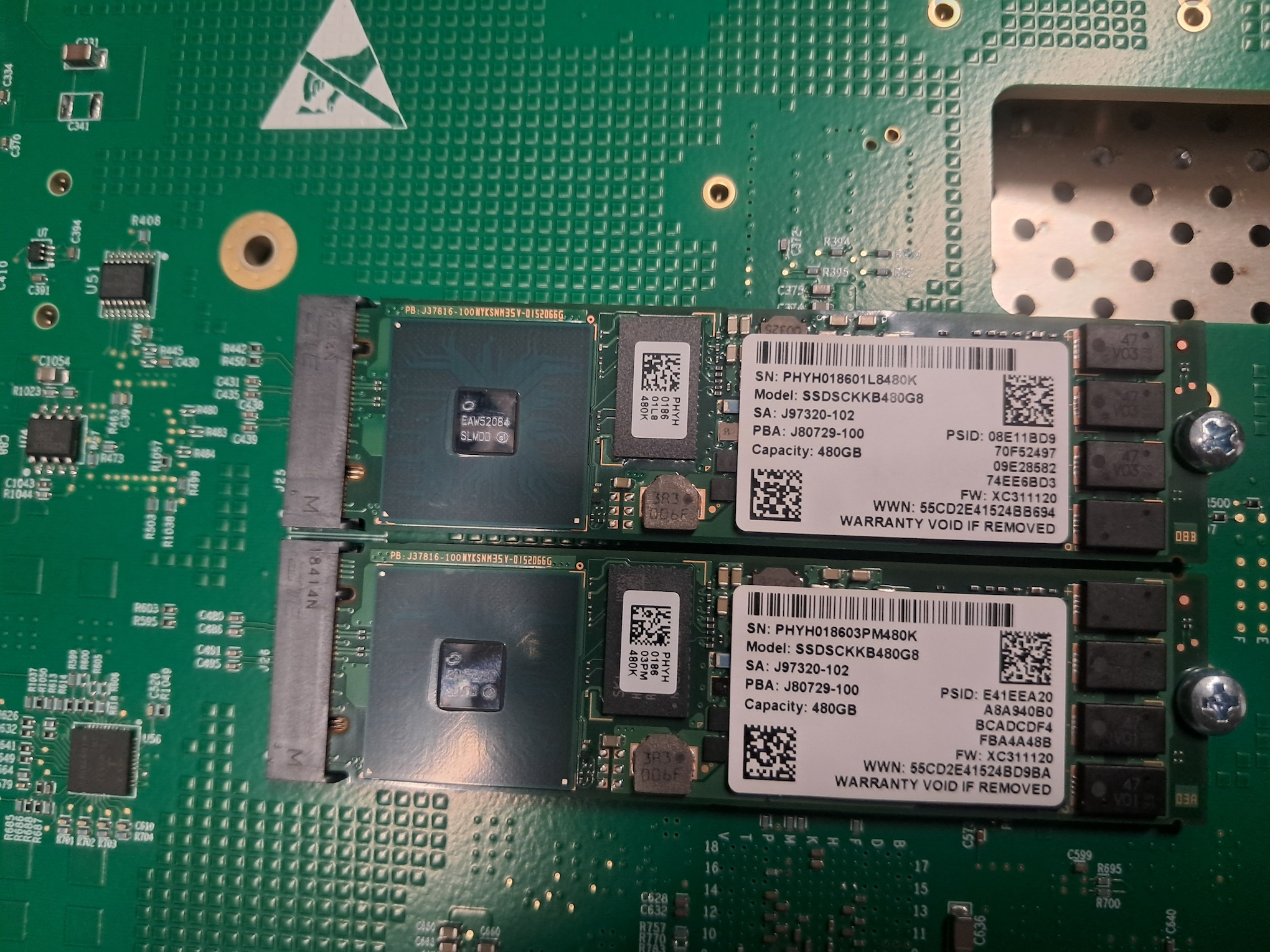

3. 记下磁盘的序列号并将其与命令的输出进行比较

4. 现在，您可以通过驱动器的序列号识别 Sys1 和 Sys2 的正确插槽
