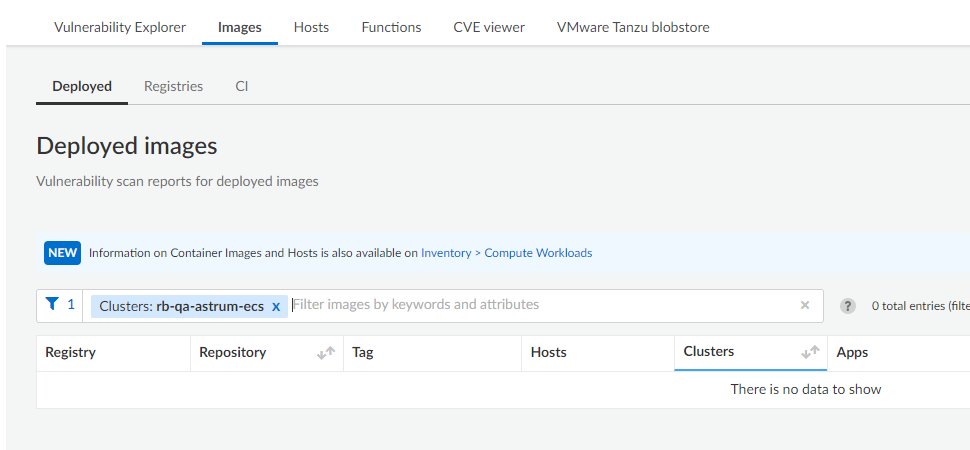

[Prisma Cloud Compute] ECS Fargate clusters not showing up under Monitor-> Vulnerabilities->Deployed Images even though the defenders are successfully connected

• Prisma Cloud Compute Self-Hosted version
• AWS ECS Fargate

• This could be happening if your task definition is missing some of the below mentioned necessary environment variables including the TW_IMAGE_NAME and TW_CONTAINER_NAME.

"environment": [
                {
                    "name": "FIPS_ENABLED",
                    "value": "false"
                },
                {
                    "name": "FILESYSTEM_MONITORING",
                    "value": "false"
                },
                {
                    "name": "TW_CONTAINER_NAME",
                    "value": "xxx"
                },
                {
                    "name": "TW_DEBUG",
                    "value": "true"
                },
                {
                    "name": "TW_IMAGE_NAME",
                    "value": ""
                },
                {
                    "name": "DEFENDER_TYPE",
                    "value": "fargate"
                },
                {
                    "name": "FARGATE_TASK",
                    "value": "xxxx
                }
            ],

 You could be using Terraform to generate task definitions and some of the above environment variables might be missing.

Also verify that entryPoint is configure correctly:

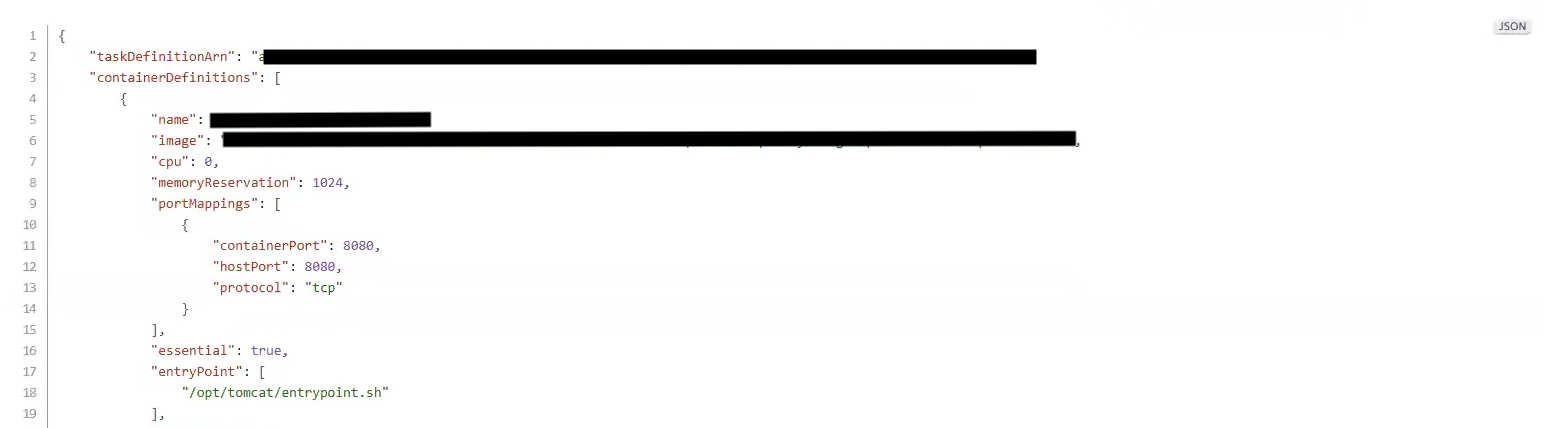

Bad configuration:

The right entryPoint should be like this:

"entryPoint": [
"/var/lib/twistlock/fargate/defender",
"fargate",
"entrypoint",
"/opt/tomcat/entrypoint.sh"
],

• If you are using terraform to generate task definitions, please make sure to compare that task definition with a manually generated protected task definition and make sure that all the environment variables are present and correctly defined.
•  Once the variables are added/corrected , the cluster should show under Deployed Images tab.
