HIP Object Host OS Check for Android and Apple iOS Failing Due to Version Mismatch
19384
Created On 01/15/21 21:57 PM - Last Modified 07/30/25 16:52 PM
Symptom
The default version fields for Google Android and Apple iOS Host Info OS check contains a trailing ".0" which doesn't map correctly in the HIP report
Environment
- Palo Alto Firewall
- PAN-OS 8.1 and above.
- HIP Object configuration.
Cause

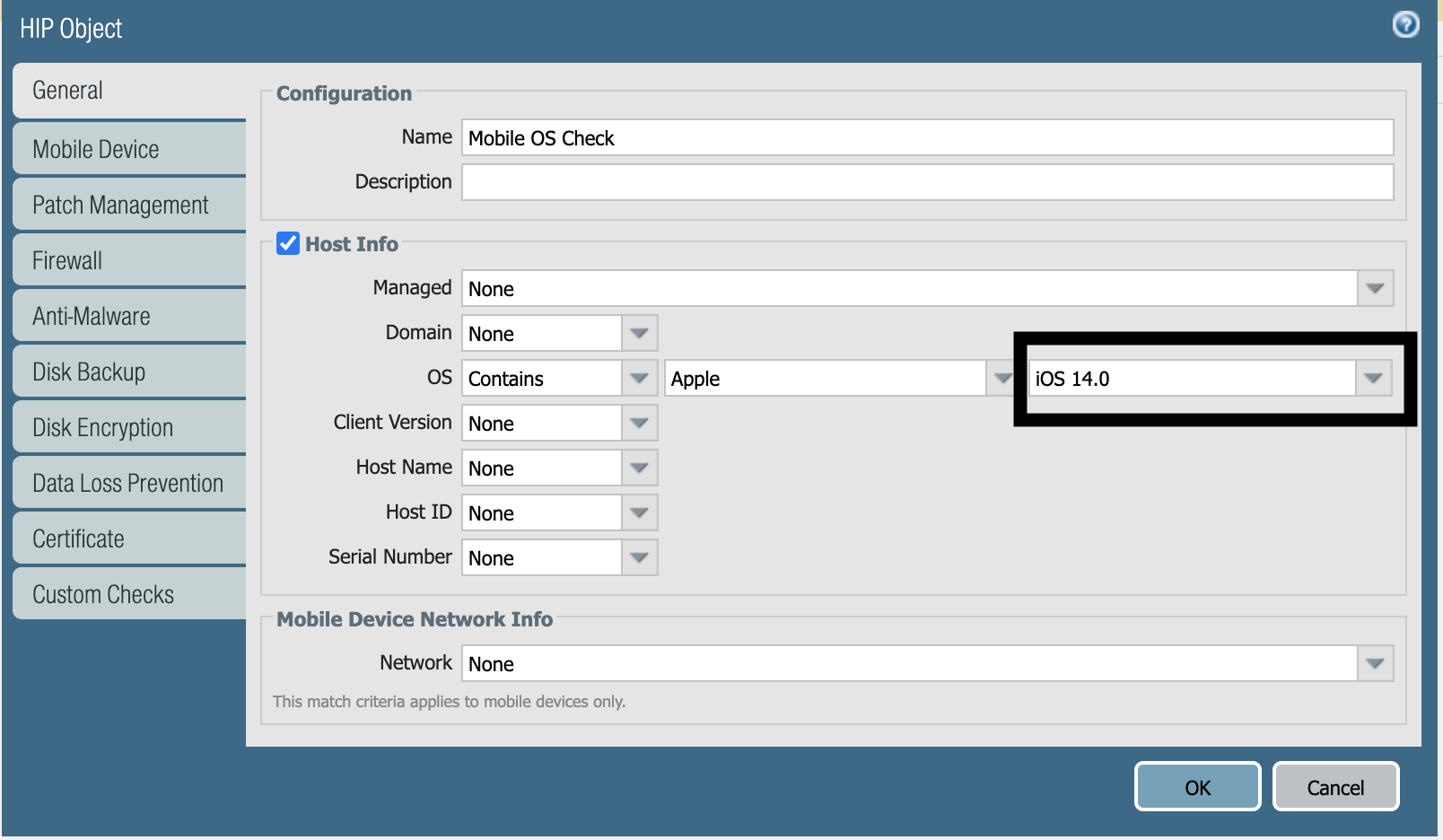

- PAN-OS includes a trailing ".0" for operating system (OS) versions by default for the HIP Host OS check: eg, Apple iOS 14.0
Resolution
To have the HIP report properly match what the device is sending, you can manually create the proper OS object in PAN-OS by completing the following steps:
- Navigate to Objects > GlobalProtect > HIP Objects > Select Add at the bottom of the window pane
- Name the object and use a description that's able to assist you later during troubleshooting (optional)
- Select the checkbox to enable the Host Info section and choose the proper OS parameters including the vendor
Note: In our example we'll be using Apple iOS 14

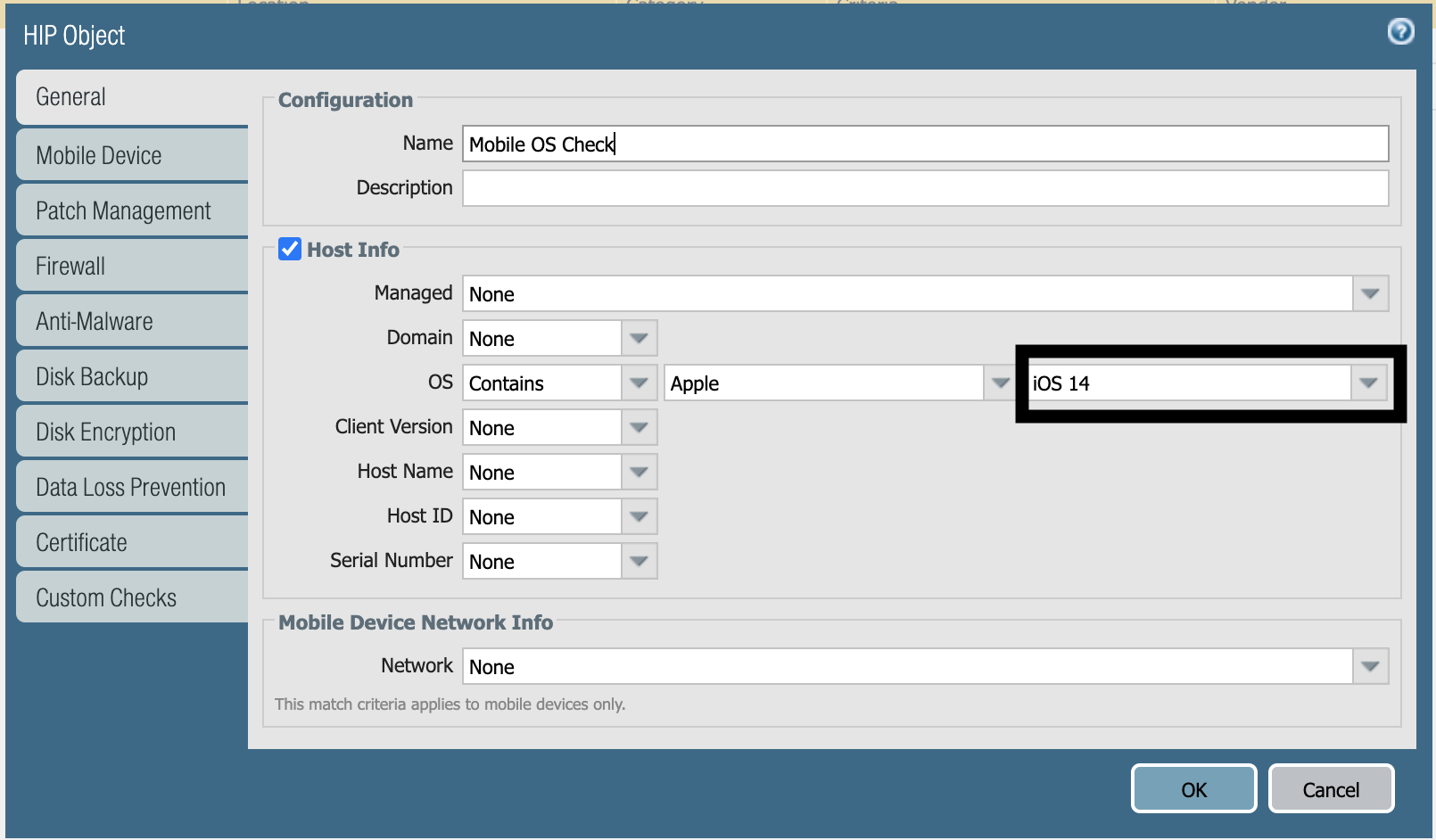

- Rather than selecting a pre-populated option from the dropdown menu, we can type the OS version without the trailing 0 as shown below:
- Select OK and then commit the configuration
Additional Information
For additional information regarding HIP and its features, Refer to Configure HIP-Based Policy Enforcement
