How to add or delete entries on GlobalProtect split tunneling config from the CLI
Objective
Add or delete split tunneling entries quickly from CLI. Useful for including in scripts to automate these tasks if user choses.
Environment
- GlobalProtect™ App 4.1+
- PAN-OS® 8.1 and later releases
Procedure
1. On Palo Alto Networks firewall CLI, these commands are issued in the configure mode.
> configure
2. To add an entry from the firewall's CLI, select one of these options from the following hierarchy
# set vsys <vsys name> global-protect global-protect-gateway <Gateway Name> remote-user-tunnel-configs <Config Name> split-tunneling ?
> access-route subnets need to be accessed by GlobalProtect clients
> exclude-access-route subnets need to be excluded by GlobalProtect clients
> exclude-applications applications need to go out of tunnel
> exclude-domains Domains need to go out of tunnel
> include-applications applications need to go through tunnel
> include-domains Domains need to go through tunnel
<Enter> Finish input
3. To delete an entry from the firewall's CLI, replace the "set" keyword with "delete" keyword.
NOTE: From here on, the options printed after the question mark (?) are left out for brevity.
# delete vsys <vsys name> global-protect global-protect-gateway <gateway name> remote-user-tunnel-configs <config name> split-tunneling ?
4. To add an entry from Panorama, configure it in the specific template where GlobalProtect config is located.
# set template <template name> config vsys <vsys name> global-protect global-protect-gateway <gateway name> remote-user-tunnel-configs <config name> split-tunneling ?
5. To delete an entry from Panorama CLI, replace the "set" keyword with "delete" keyword.
# delete template <template name> config vsys <vsys name> global-protect global-protect-gateway <gateway name> remote-user-tunnel-configs <config name> split-tunneling ?
6. Examples:
- From firewall CLI,
> configure
# set vsys vsys1 global-protect global-protect-gateway <gateway name> remote-user-tunnel-configs <config name> split-tunneling exclude-access-route 4.4.2.2/32
# set vsys vsys1 global-protect global-protect-gateway <gateway name> remote-user-tunnel-configs <config name> split-tunneling exclude-domains list google.com ports 443
# set vsys vsys1 global-protect global-protect-gateway <gateway name> remote-user-tunnel-configs <config name> split-tunneling exclude-applications /Applications/MicrosoftLync.app/Contents/MacOS/MicrosoftLync

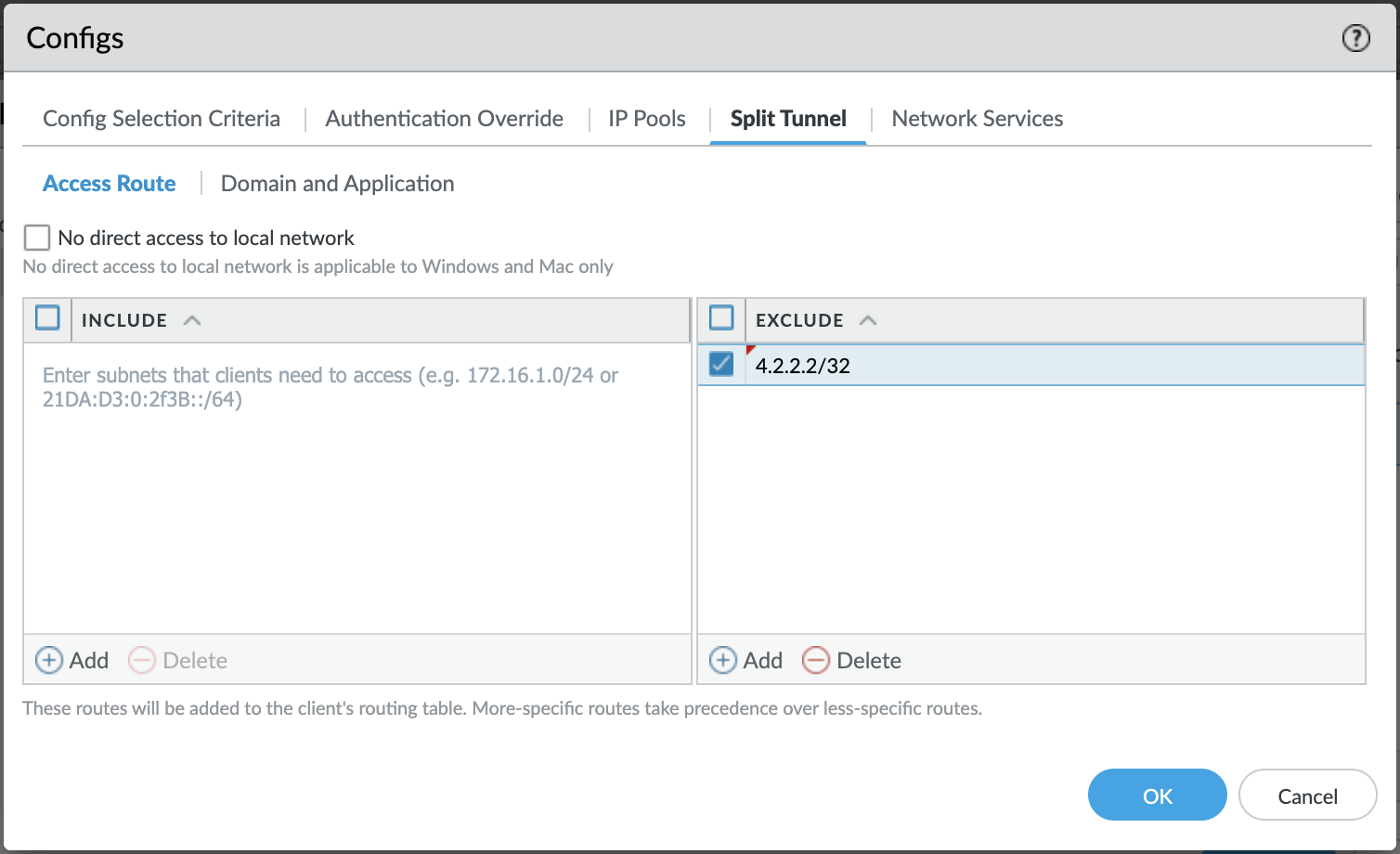

- After refreshing, the Corresponding changes in the Web UI can be found at Network > GlobalProtect > Gateways > Select gateway > Agent > Client Settings > Select config > Split Tunnel
Additional Information
1. Additional reference for configuring GP split tunneling:
https://docs.paloaltonetworks.com/globalprotect/10-0/globalprotect-admin/globalprotect-gateways/split-tunnel-traffic-on-globalprotect-gateways/configure-a-split-tunnel-based-on-the-access-route.html
https://docs.paloaltonetworks.com/globalprotect/10-0/globalprotect-admin/globalprotect-gateways/split-tunnel-traffic-on-globalprotect-gateways/configure-a-split-tunnel-based-on-the-domain-and-application.html
