BGP: How to Aggregate a Supernet to multiple peers and to Advertise different Subset of specific Routes to each peer?

BGP: How to Aggregate a Supernet to multiple peers and to Advertise different Subset of specific Routes to each peer?

7140
Created On 12/30/20 18:26 PM - Last Modified 01/15/21 01:45 AM


Objective


This KB article is to provide the procedure to aggregate a supernet to multiple peers and to advertise different subset of specific routes to each peer.

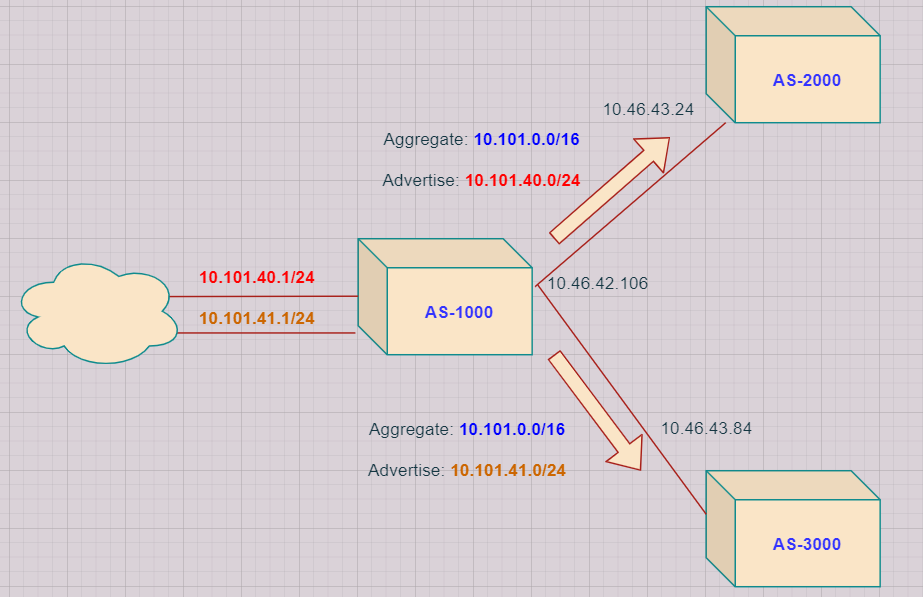

Example:
  • Aggregate: 10.101.0.0/16 to AS-2000 and AS-3000.
  • Advertise: 10.101.40.0/24 to AS-2000.
  • Advertise: 10.101.41.1/24 to AS-3000.
User-added image

Environment


  • PAN OS versions: 8.1.x, 9.0.x, 9.1.x, 10.0.x.

Procedure


  1. Create a Redistribution Profile (this example is using connect as source type).
User-added image
  1. Create BGP Peer.
User-added image
  1. Create Export Rule to block and allow.
User-added image

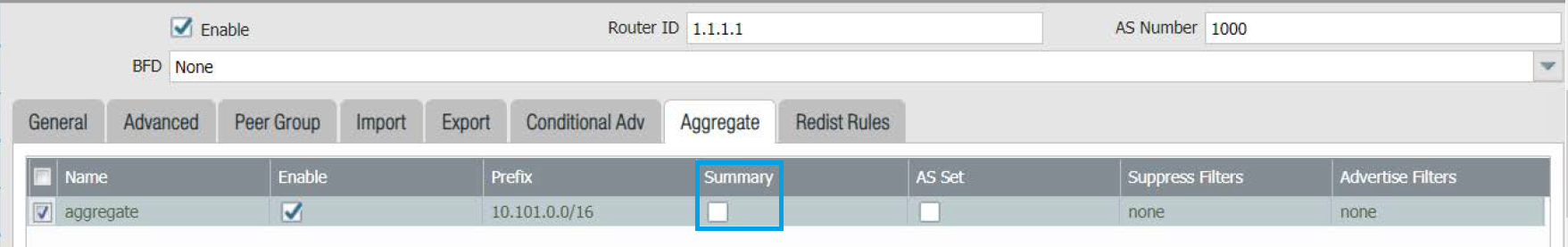

  1. Enable Aggregate Rule with Summary checkbox is unchecked.
User-added image
  1. Apply Redistribution Profile to Redistribution Rule.
User-added image

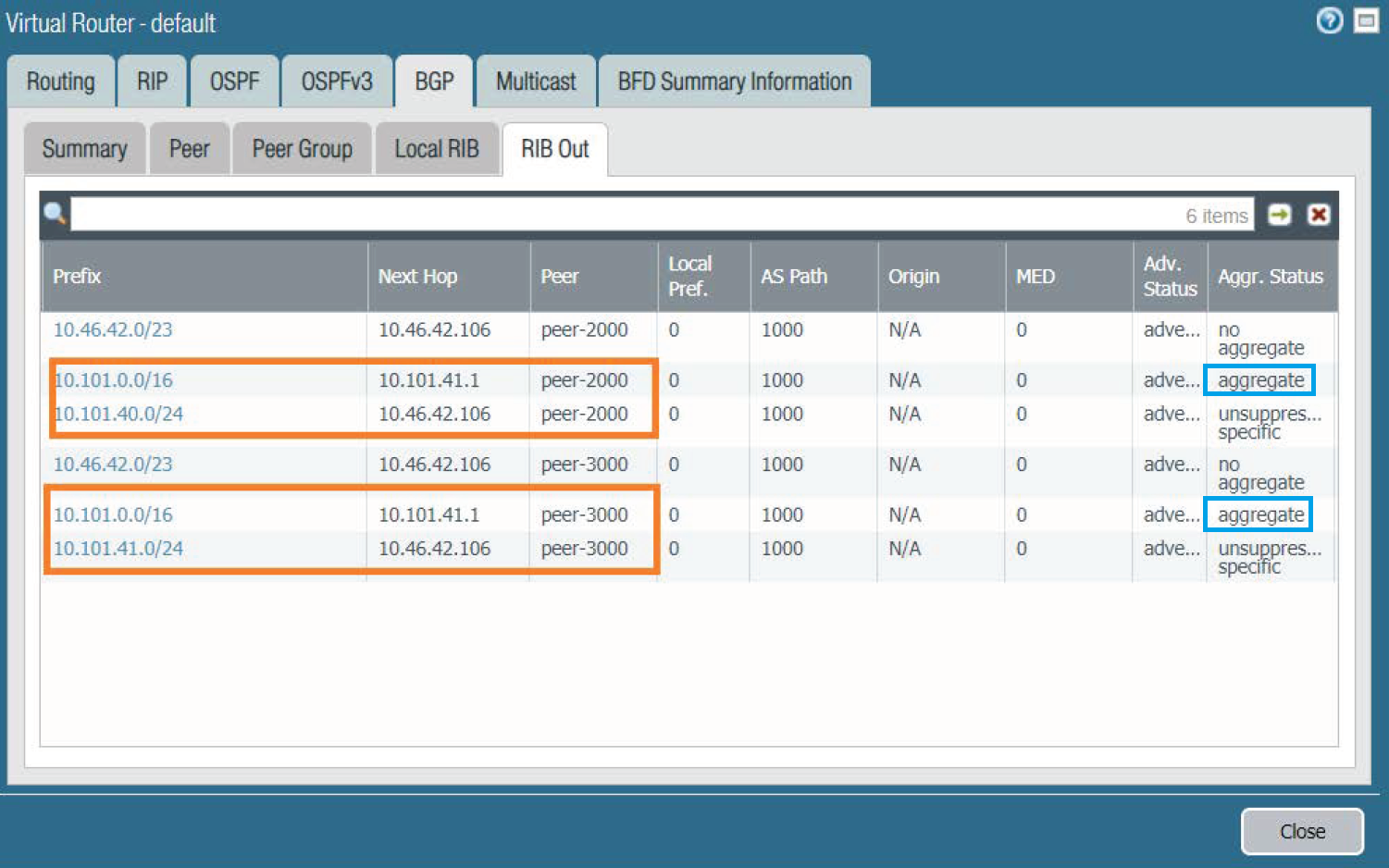

  1. Result - Rib Out
User-added image
