错误:无法连接到 GlobalProtect 网关。 请联系您的 IT 管理员。
50308
Created On 10/28/20 23:07 PM - Last Modified 03/26/21 18:45 PM
Symptom
- GlobalProtect 代理错误: 无法连接到 GlobalProtect 网关。 请联系您的 IT 管理员。
- PANGPA.log显示以下情况:
(T13736)Debug( 101): 10/26/20 09:20:06:110 connect failed with 5 seconds timeout. (T13736)Debug( 599): 10/26/20 09:20:06:110 Failed to connect to <Portal/Gateway IP address/FQDN> on 443 with return value -1 and socket error 0(0) (T13736)Debug( 784): 10/26/20 09:20:06:110 do_tcp_connect() failed (T13736)Error(10527): 10/26/20 09:20:06:110 ConnectSSL: Failed to connect to '<Portal/Gateway IP address/FQDN>'. Disconnect ssl. (T13736)Debug(10540): 10/26/20 09:20:06:110 Cannot get server cert of <Portal/Gateway IP address/FQDN> (T13736)Debug(6060): 10/26/20 09:20:06:110 Already tried both ipv4 and ipv6 for gateway <Gateway IP address/FQDN> (T13736)Debug(6070): 10/26/20 09:20:06:110 pretunnel latency (manual gateway) is 1 (T13736)Error(3473): 10/26/20 09:20:06:110 Failed to connect to gateway <Gateway IP address/FQDN>. (T13736)Debug(5447): 10/26/20 09:20:06:110 Show Gateway GW01: Could not connect to the GlobalProtect gateway. Please contact your IT administrator. (T13736)Info (2619): 10/26/20 09:20:06:110 Failed to retrieve info for gateway <Gateway IP address/FQDN>
Environment
- PA-3020
- PANOS 8.1.16
- 全球保护版本:5.1.5
Cause

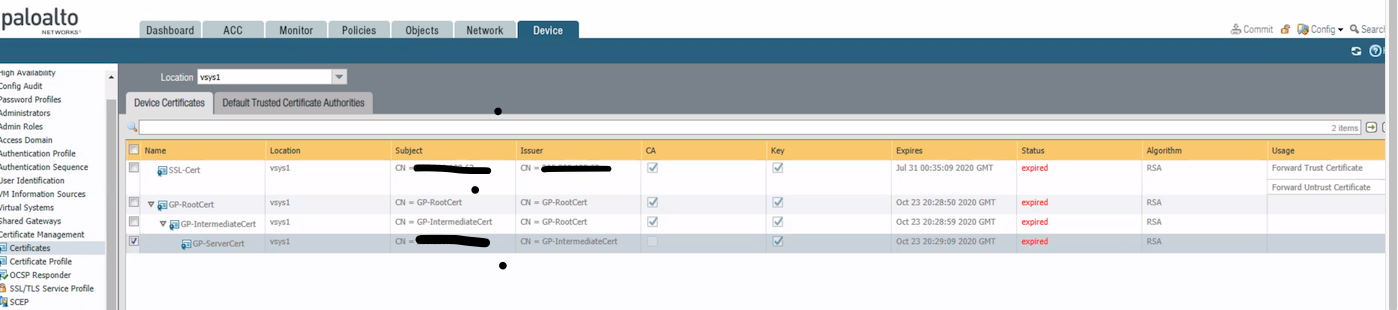

- 证书状态显示:已过期
Resolution
解决方案1
- 续订证书
- 如果证书具有以下路径:
==>> Root certificate =====>>Intermediate certificate =====================>>GlobalProtect
- 首先续订根证书。
- 续期中级证书第二。
- 最后续订 GlobalProtect 证书。
- 设备证书管理下的> 证书>证书>选择>证书
- 使用集团 Policy 对象将证书导入客户证书存储或向客户推送证书( GPO )
