How do you use and setup the LAN interface in Prisma SD-WAN?

• Prisma SD-WAN

The following are configuration options for internet ports:

• Description
• Tags: for organizational and reporting purposes; used by CloudBlade applications for dynamic configuration
• Interface Type: port or bypass pair
• Use This Port For: location to specify internet
• Scope: local-only or global advertisement
• Circuit Label
• IP Address/Mask, Default Gateway, DNS Servers
• MAC: can be a custom MAC address
• External NAT Address & Port: used to specify an external NAT address (if behind NAT), but not generally required
• IP MTU
• Physical: speed and duplex

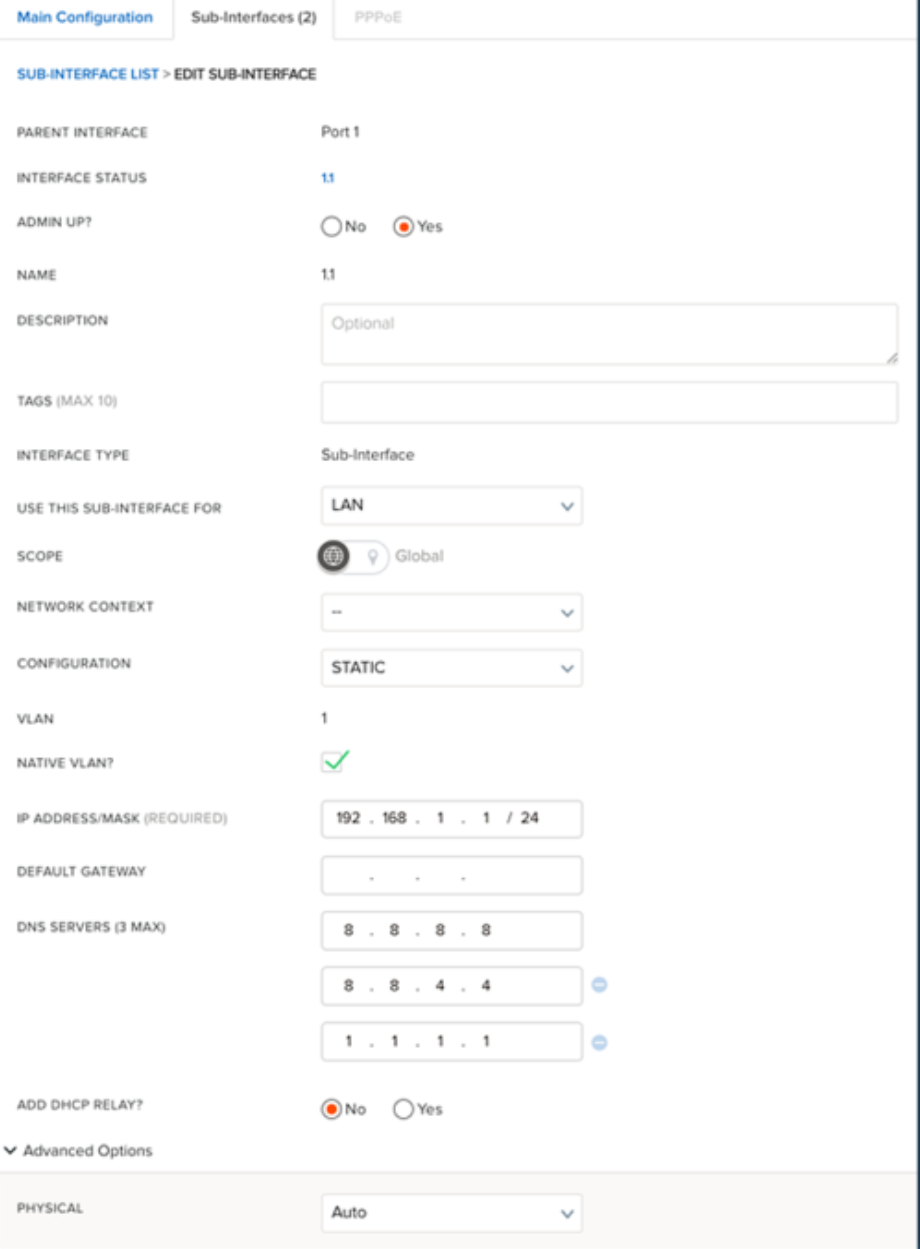

A LAN interface is used as a Layer 3 gateway for clients. A LAN interface can be used for the following purposes:

• As an interface with the LAN (client side)
• As a transit network for environments with L3 switches
• As a sub-interface as NATIVE or with a VLAN tag
• For static and BGP LAN routing
• Assigned to a port or a bypass pair
• As a DHCP relay or listener for a local DHCP server
• For network context definition to denote the originating network for traffic and in path-selection policies to configure different paths and priorities for traffic coming from different networks:
  • For example, Gmail traffic from corporate wi-fi and guest wi-fi can have different policies and different network contexts.
