当 Firewall "服务路线"与以太网接口配置时 Panorama ，为什么 Panorama 显示连接到 firewall "管理接口"？

• PANOS 版本： 8.1.x， 9.0.x， 9.1.x， 10.0.x
• Hardware
• VM

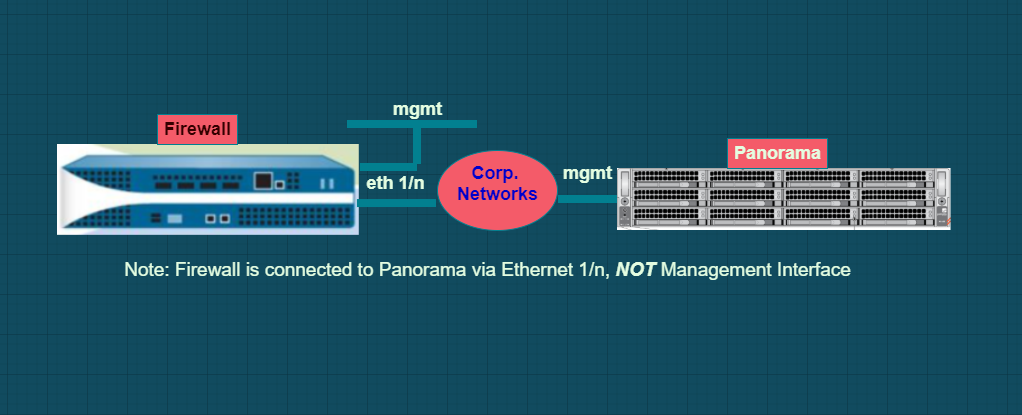

• 拓扑结构

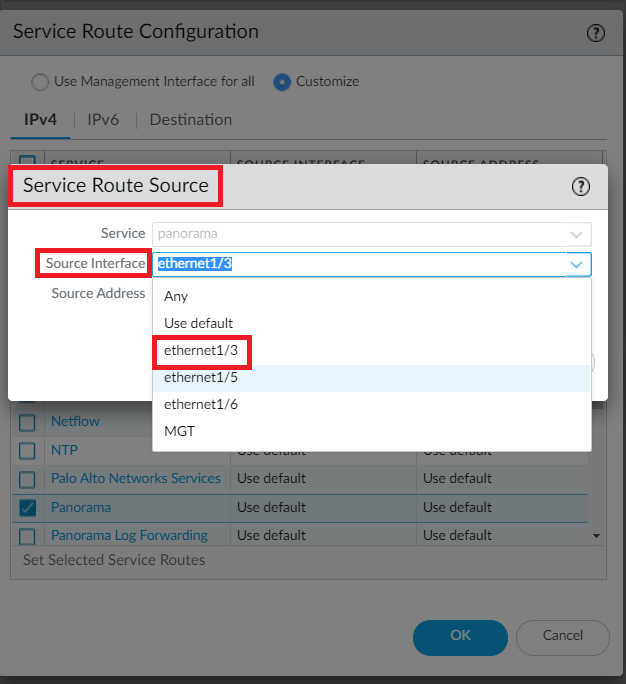

• Firewall服务路线

• Panorama:

panorma> show devices connected | match <firewall's serial-number>

<firewall's serial-number>             <firewall's hostname>        <firewall's management-interface-ip>  unknown                                yes
  Certificate subject Name: <firewall's serial-number>

panorama> show netstat numeric yes | match 3978
tcp6 0 0 <panorama's ip-address>:3978 <firewall's ethernet-ip-address>:52570 ESTABLISHED

• Firewall:

Firewall> show system info
hostname: Firewall
ip-address: <mgmt ip>
public-ip-address: unknown
serial: <serial-number>

Firewall> show netstat numeric yes | match 3978
tcp 0 0 <firewall's ethernet-ip-address>:39938 <panorama's ip-address>:3978 ESTABLISHED

1. 打开 IP 的地址 firewall Panorama 取自显示系统信息命令的 firewall
2. 对于非 ZTP firewall ， Panorama 将显示 IP firewall mgmt接口的地址
