GlobalProtect users with app status "Connected You are on the internal corporate network." lose access to internal/external resources after some time

• GlobalProtect users connected to internal gateway are unable to access internal/external resources after some time, even if the connection status on GlobalProtect app shows "Connected You are on the internal corporate network.".

• The issue is related to environments with user-based policies, where user-to-ip-mapping is retrieved from GlobalProtect.

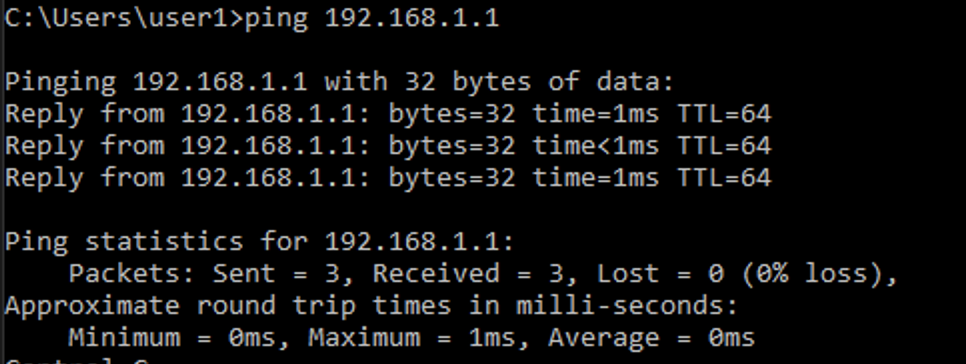

• An example where the user is able to reach internal/external resources.

• On the firewall GUI under the Monitor > Traffic, "user1" matched the allow rule presented before.

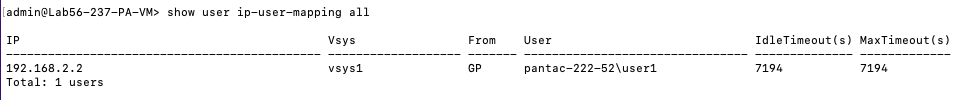

• The command issued below shows User-to-IP-mapping is done via GlobalProtect.

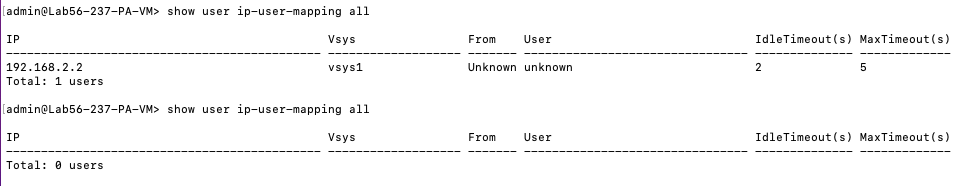

• After 120 minutes (7200 seconds) that is close to the moment when Login Lifetime expired, the user-to-IP-mapping is no longer visible on the firewall.

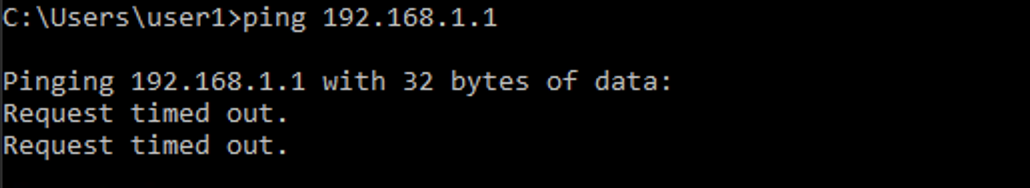

• The client machine is unable to reach the resources because the user-to-IP-mapping is deleted.

• As a result, the allow policy is not matched because the user is not verified.

• Palo Alto Firewalls
• Supported PAN-OS versions
• GlobalProtect (GP) App
• GlobalProtect users connected to internal gateway
• Internal Host Detection (IHD)
• User-based policies

• user-to-IP mapping is deleted after the internal gateway login lifetime expires, even if the mapping is refreshed on hourly HIP checks.
• GP users will temporarily lose access to internal/external resources because the user is not matching user-based security policy rule.

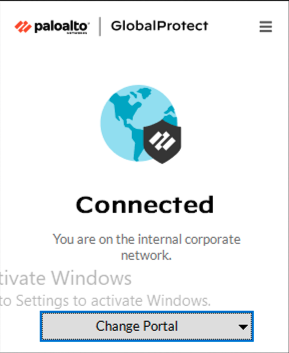

• GP app shows "Connected You are on the internal corporate network." as long as IHD is successful.

1. Increase the Login Lifetime value to match user's business hours. In this manner, the user-to-IP mapping should remain present throughout their working hours until a fresh login/logout is issued.

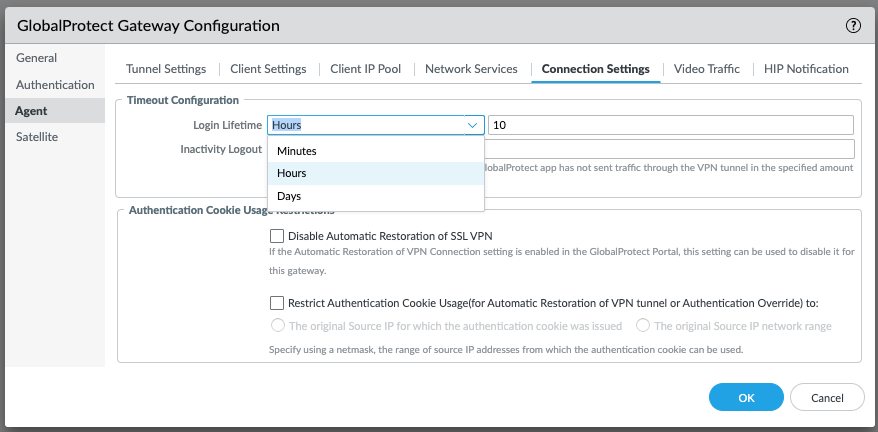

GUI: Network > GlobalProtect > Gateways > [gateway-name] > Agent > Connection Settings

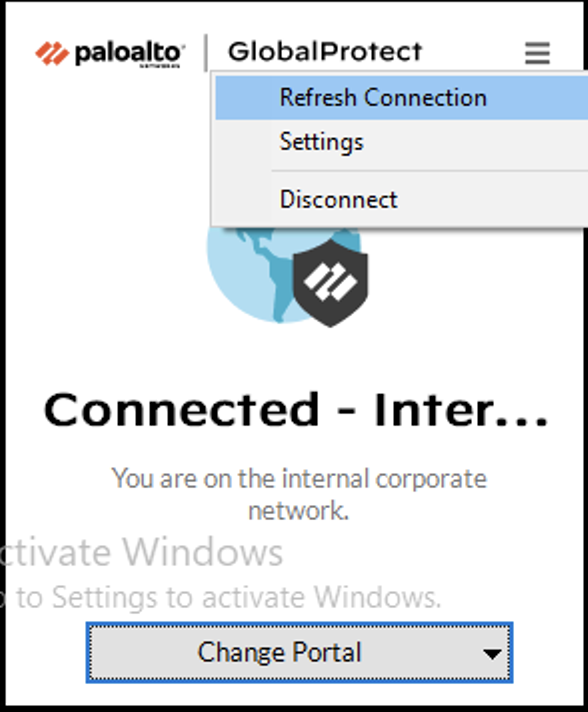

2. Perform "Refresh Connection" from GP app to refresh the gateway connection. This will recreate the user-to-IP mapping and user's traffic will match the user-based security policies.

Other reason fo the same behavior: GlobalProtect Client Shows "Connected You are on the internal corporate network" but There is no IP Address-to-Username Mapping of the User
