What is the easiest way to check SD-WAN session distribution by rule?
9306
Created On 07/29/22 21:56 PM - Last Modified 06/08/23 14:47 PM
Question
What is the easiest way to check SD-WAN session distribution by rule?
Answer
- If there is a complain about the quality of a service and/or application traffic using SD-WAN, it might be good to know the percentage of connections on each link for the related traffic.
- The easiest way to get necessary information is using the CLI by running the commands below referring the policy name which the traffic hits.

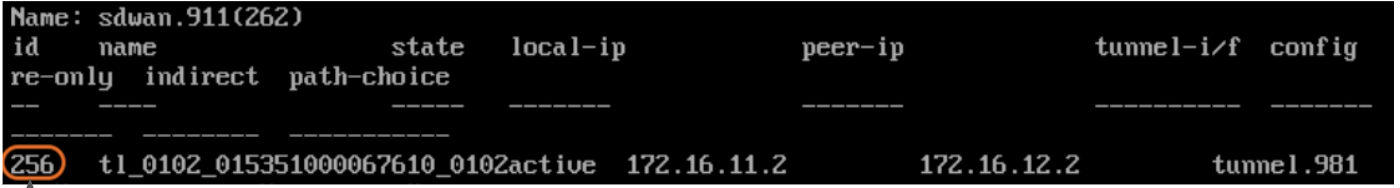

> show sdwan connection all => This command will list all SD-WAN interface information.
Sample output

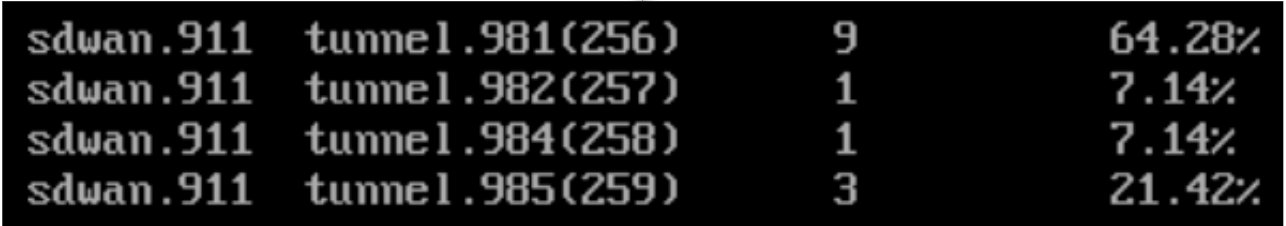

> show sdwan session distribution policy-name [SD-WAN Policy Name] => Displays necessary information based on the policy name.
Sample output
