When using SAML authentication, GlobalProtect prompts for authentication after reboot
7642
Created On 07/18/22 23:16 PM - Last Modified 03/19/24 08:46 AM
Symptom
- SAML Authentication method is used for GlobalProtect Clients
- Users are prompted for credentials when the PC is rebooted or woken from sleep.
Environment
- Palo Alto Firewalls or Prisma Access
- Supported PAN-OS
- GlobalProtect (GP) Connect-method: User-logon (Always On)
- SAML authentication
Cause
- When the laptop is rebooted (or) woken from sleep the GP portal is not reachable immediately.
- In such cases if SSO is enabled, it will overwrite the GP saved username, and try to do lookup for cached config based on the windows login username.
- Hence the recommendation is not to enable SSO with SAML.
- Same behavior is applicable if authentication override cookies are accepted on the GP Gateway.
Resolution
Below are the 4 configuration settings that should be configured to help achieve this:

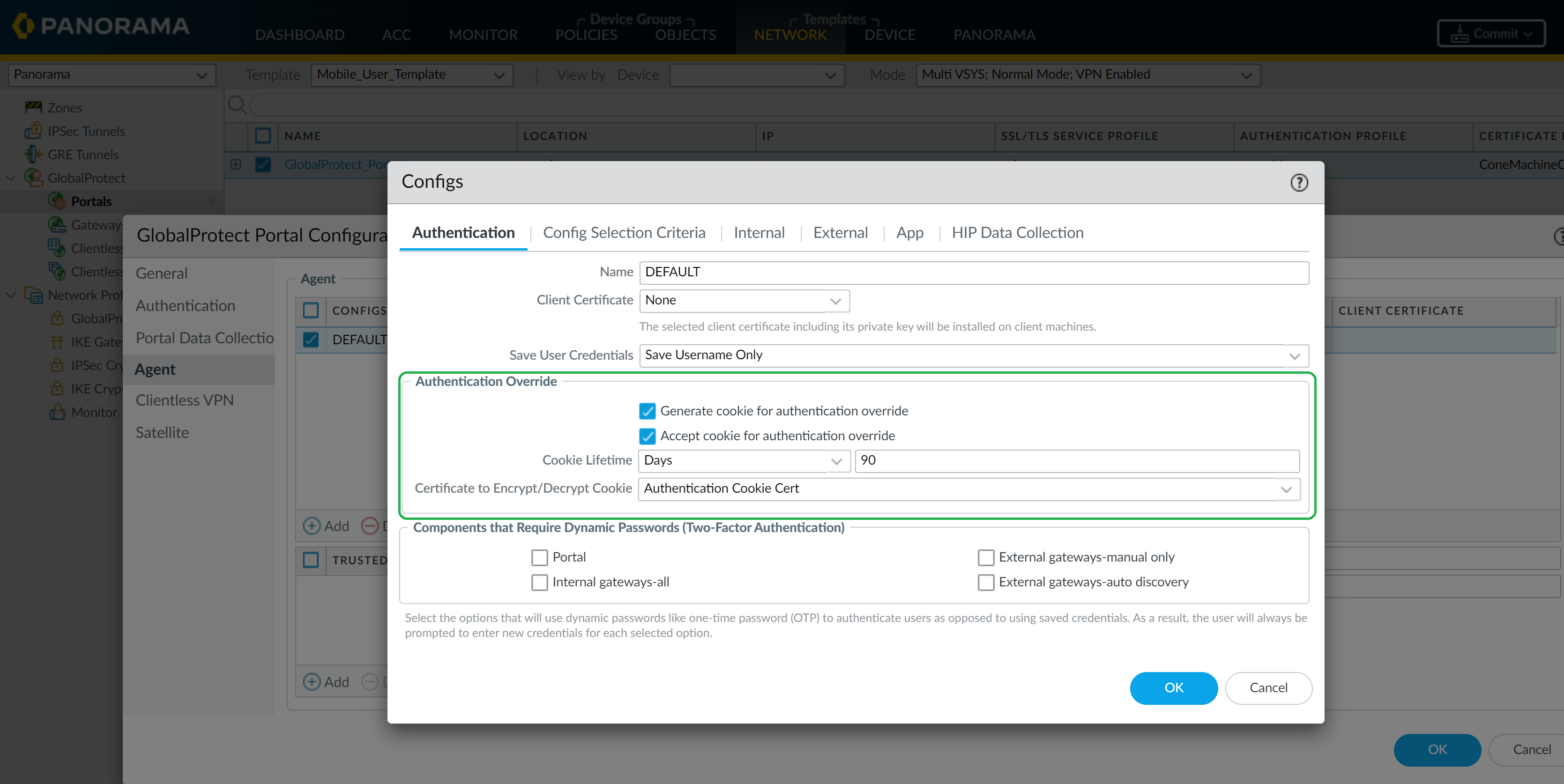

- Generate and accept cookie with a cookie lifetime of 90days was enabled on the Portal side
GUI: Network Tab > GlobalProtect > Portals > GlobalProtect_Portal > Agent > Select the specific agent config

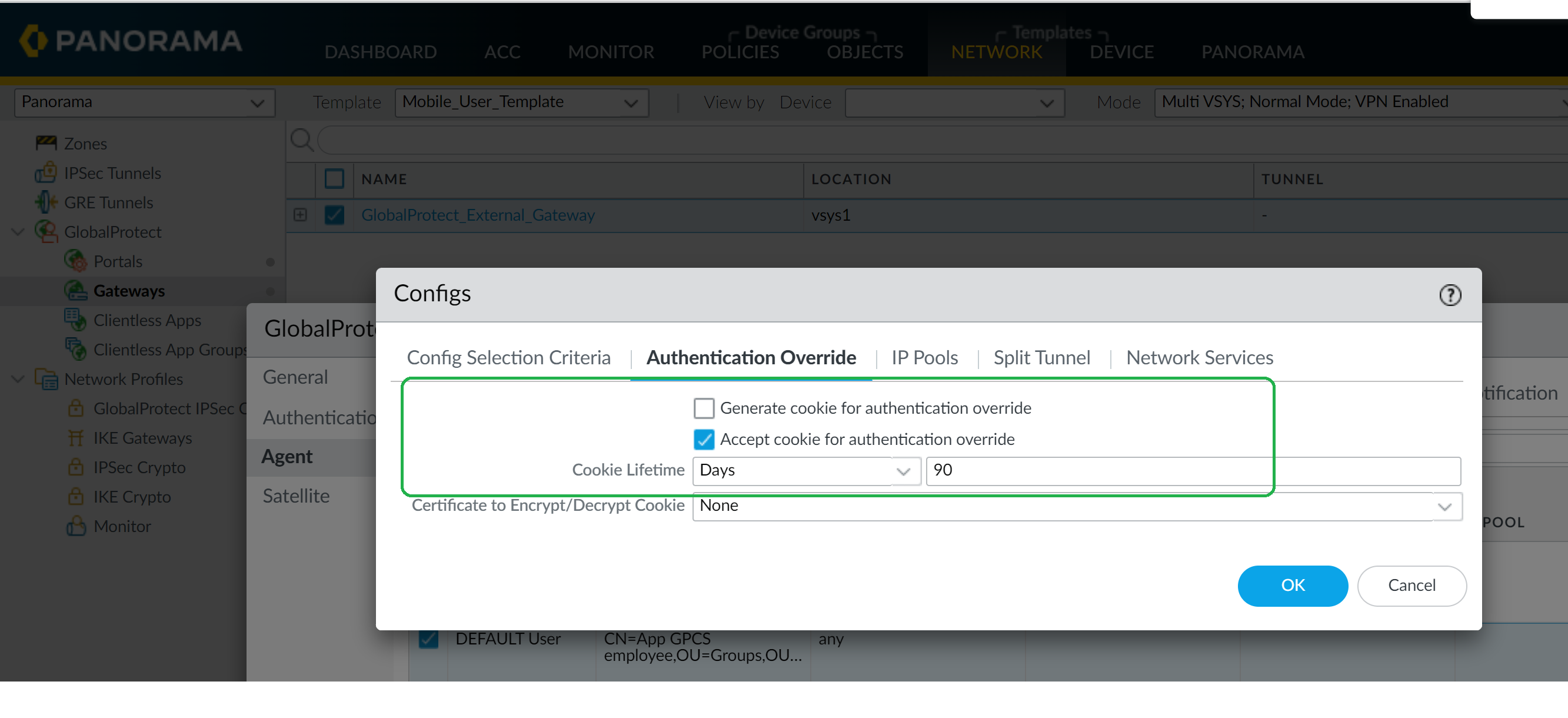

- Only Accept cookie for a lifetime of 90days was enabled for the Gateway
GUI: Network > GlobalProtect > Gateways > GlobalProtect_External_Gateway > Agent > Select the specific agent config > Authentication Override

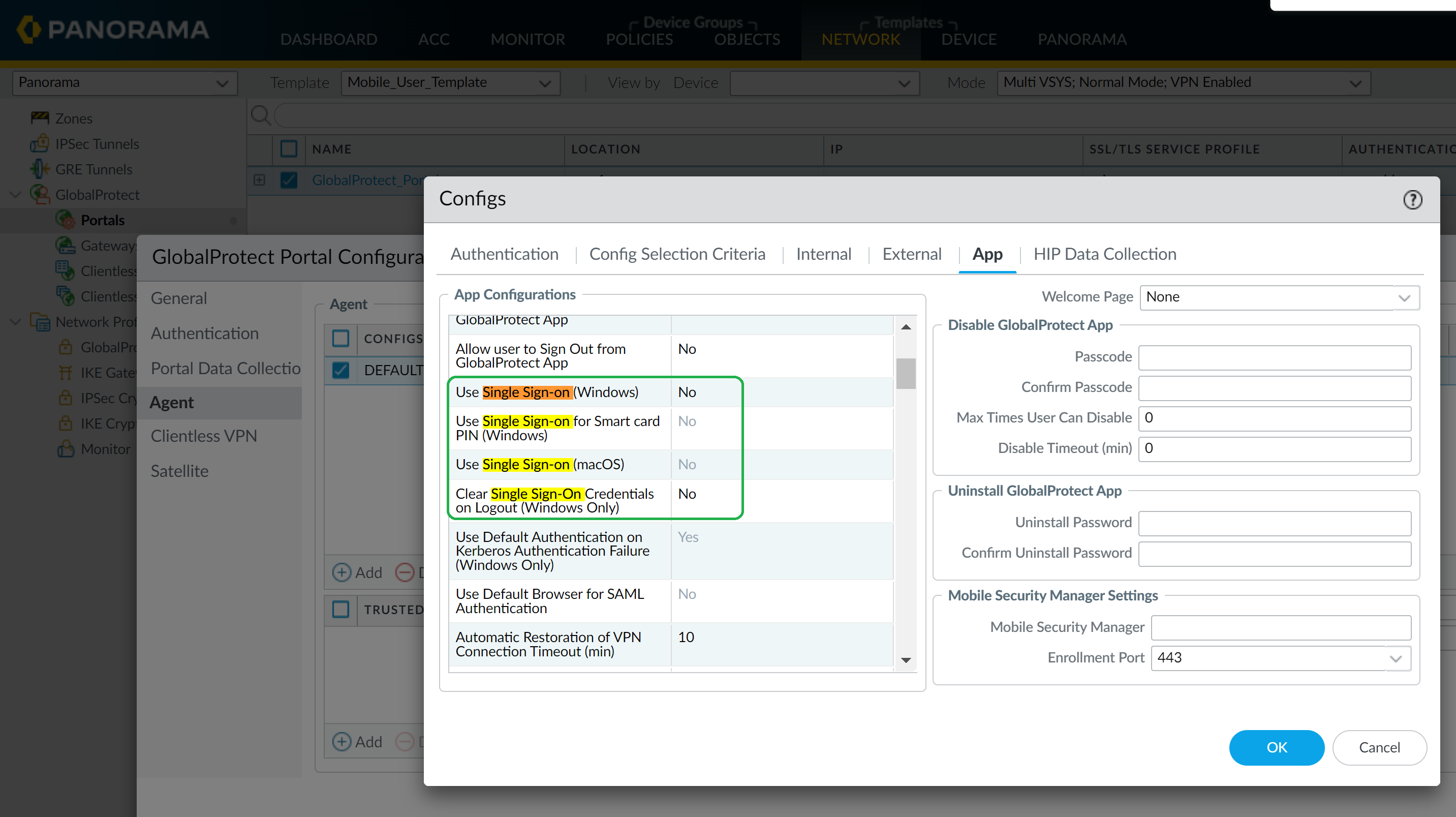

- Single Sign-on for Windows and MAC is was unchecked
GUI: Network > GlobalProtect > Portals > GlobalProtect_Portal > Agent tab > Select the specific agent config > App Tab

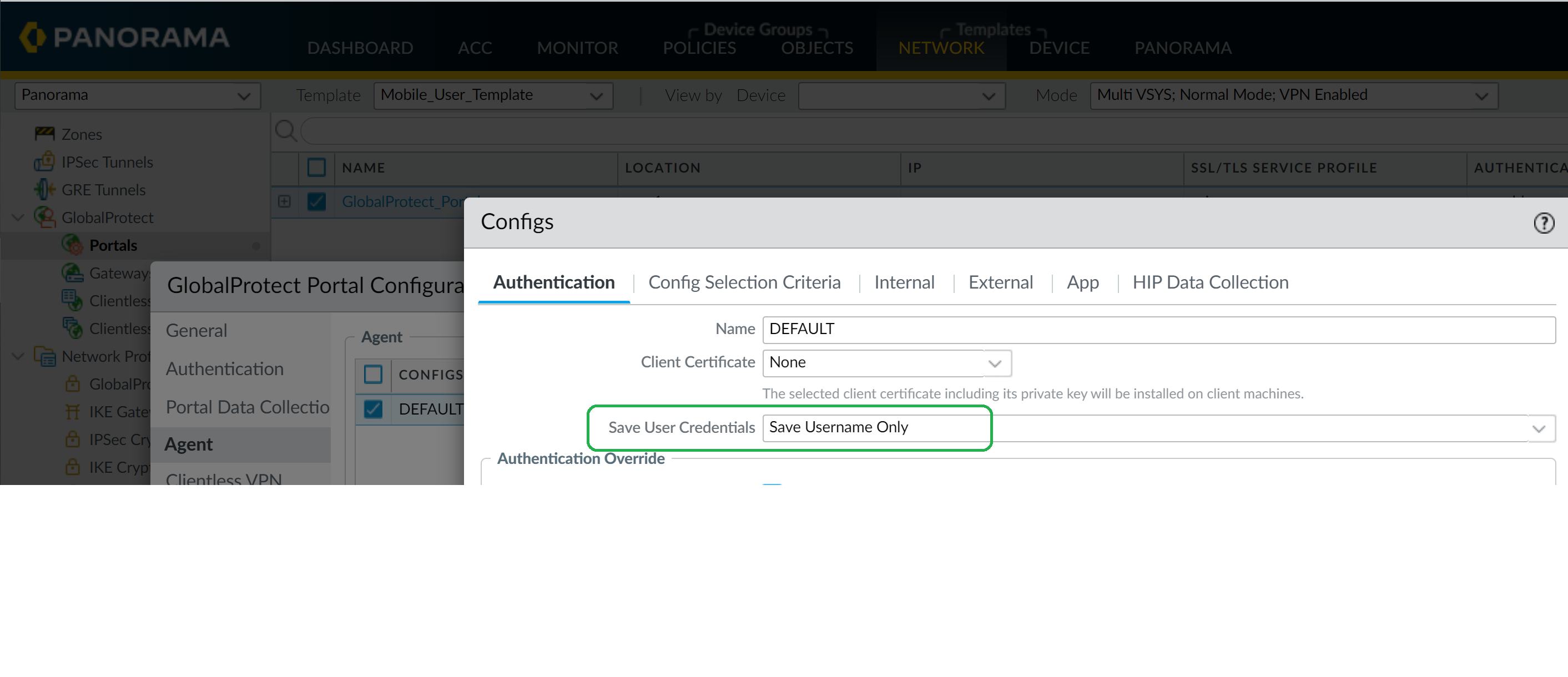

- Save user credentials is set to Save username only
GUI: Network > GlobalProtect > Portals > GlobalProtect_Portal > Agent tab > Select the specific agent config

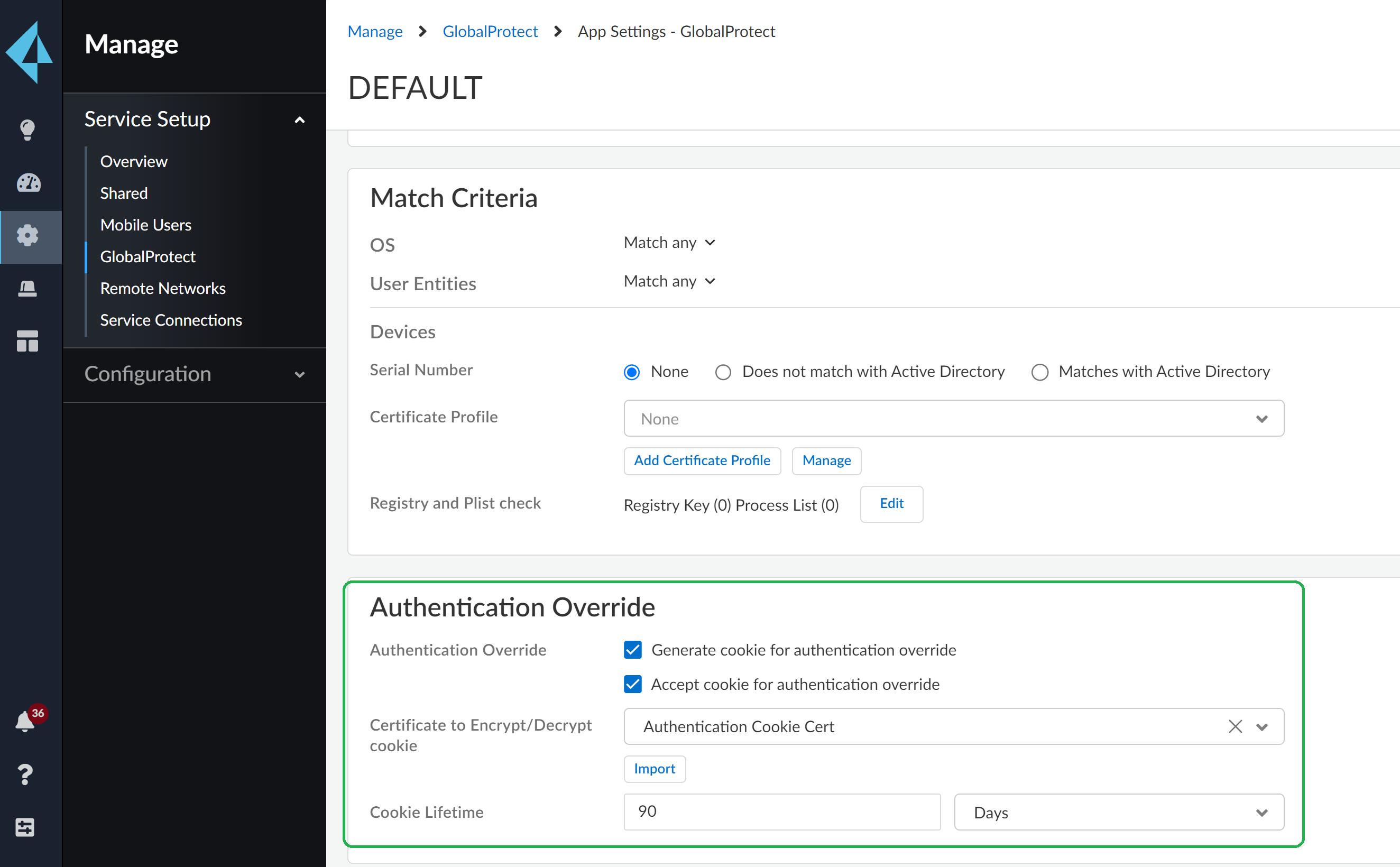

- Generate and accept cookie with a cookie lifetime of 90days was enabled on the Portal side
GUI: Service Setup > GlobalProtect Tab > GlobalProtect App > App Settings > Select the desired app config > Authentication Override

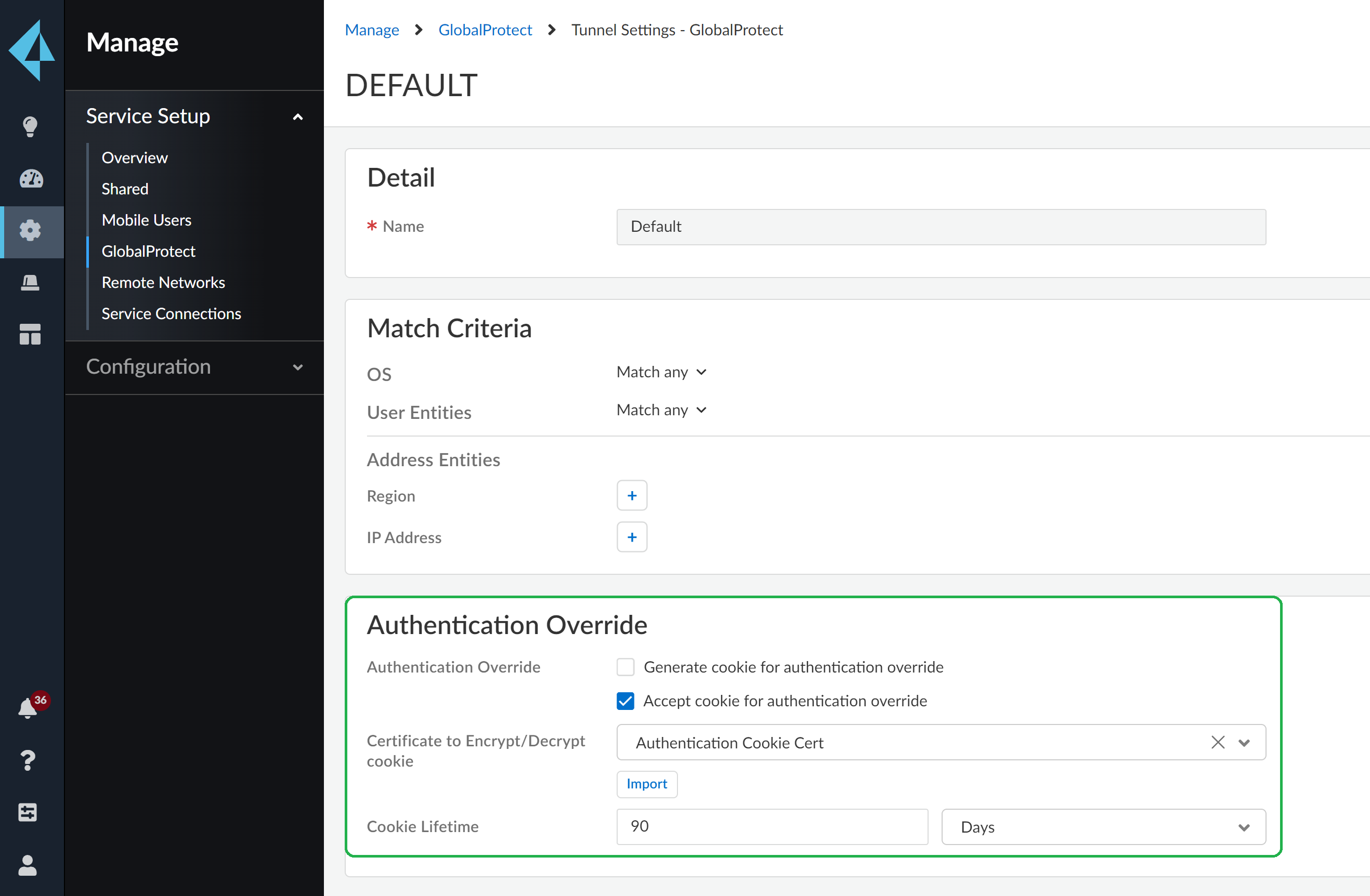

- Only Accept cookie for a lifetime of 90days was enabled for the Gateway
GUI: Service Setup >> GlobalProtect Tab >> GlobalProtect App >> Tunnel Settings >> Select the desired tunnel config >> Authentication Override

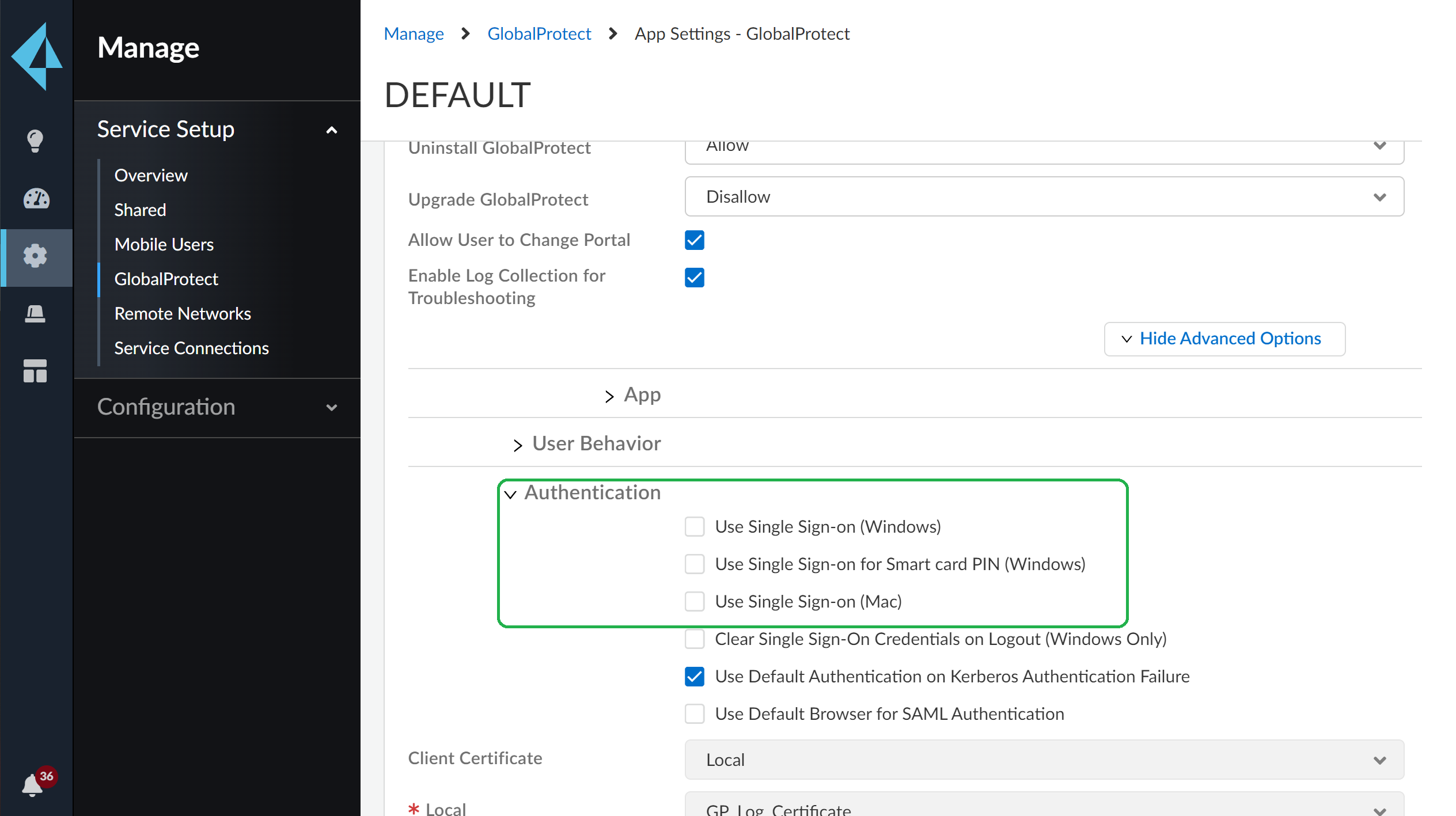

- Single Sign-on for Windows and MAC is was unchecked
GUI: Service Setup > GlobalProtect Tab > GlobalProtect App > App Settings > Select the desired app config > App Configuration > Show Advanced Options > Authentication

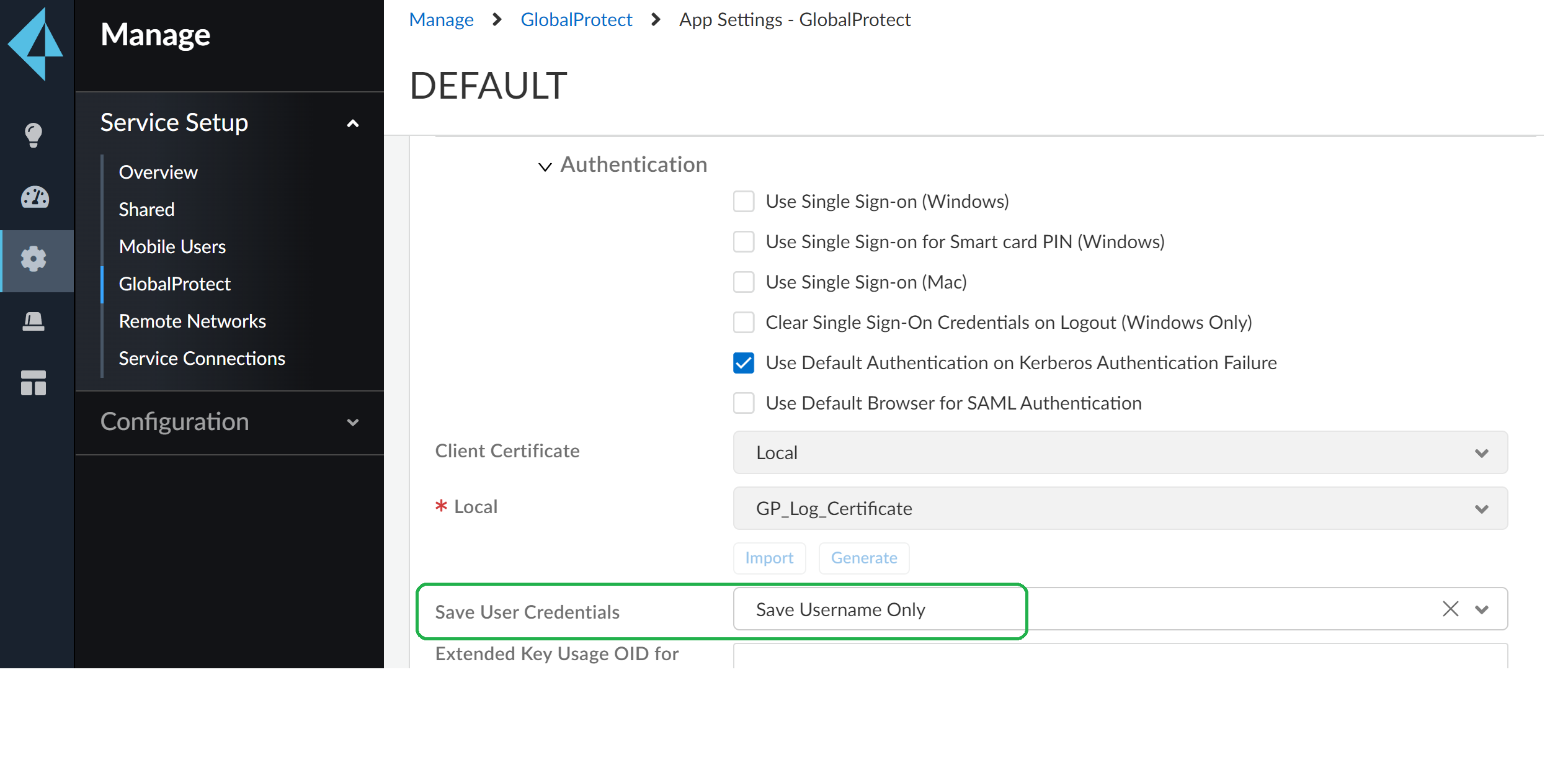

- Save user credentials is set to Save username only
GUI: Service Setup > GlobalProtect Tab > GlobalProtect App > App Settings > Select the desired app config > App Configuration > Show Advanced Options > Authentication
Additional Information
How the authentication flow would look like when both SAML and GlobalProtect SSO are enabled
