How to Configure Captive Portal
301778
Created On 07/18/22 22:57 PM - Last Modified 05/06/26 18:20 PM
Objective
To Configure Captive Portal (Authentication Portal ) Using Redirect Mode And Local Authentication
Environment
- Palo Alto Firewalls.
- PAN-OS 9.1 and above.
- Captive Portal (Authentication Portal).
Procedure

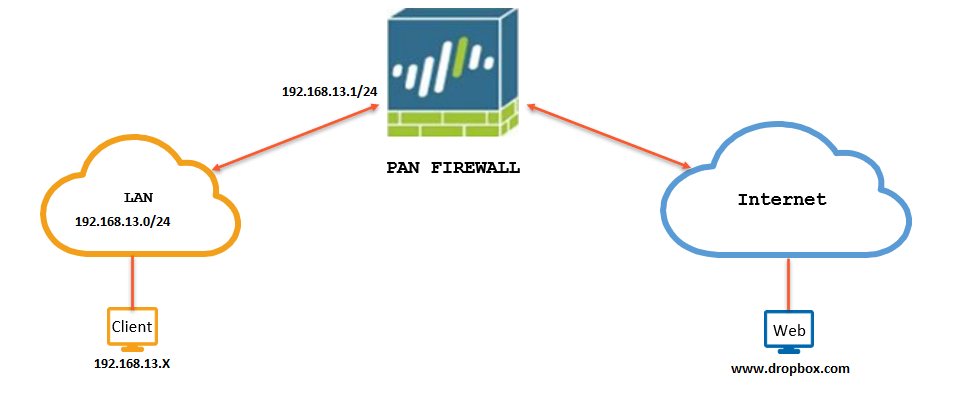

Configuring Captive Portal is documented here . This article provides an example using the following Network Diagram.

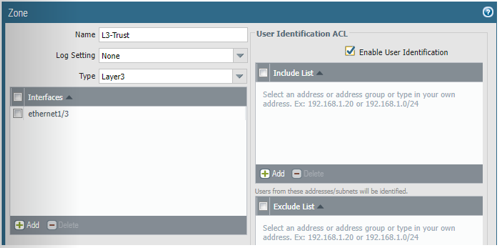

- Enable user identification on the internal zone.
Go to Network > Zones > Select the zone > Enable User Identification.

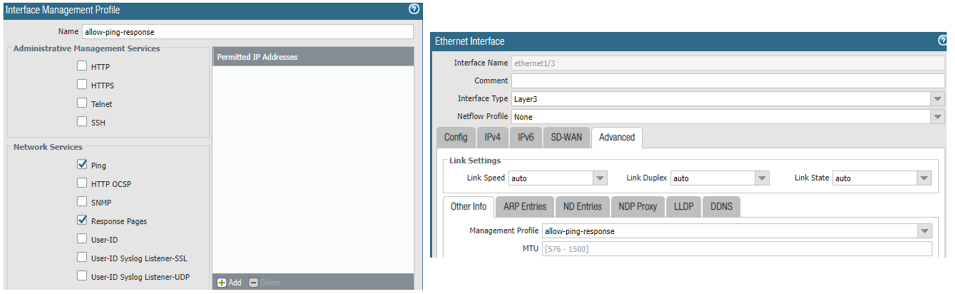

- Configure an interface management profile with response pages enable and associate it to the internal interface. Note: Do not attach the interface management profile (with Response Pages enabled) to internet facing interfaces.
Go to Network > Interface > Select the interface > Advanced Tab > Create Management Interface Profile.

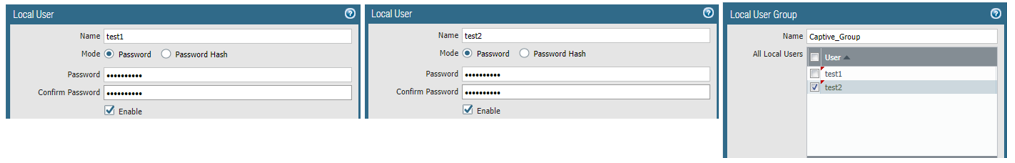

- Create the users and user group.
Go to Device > Users > Add Users/User Group.

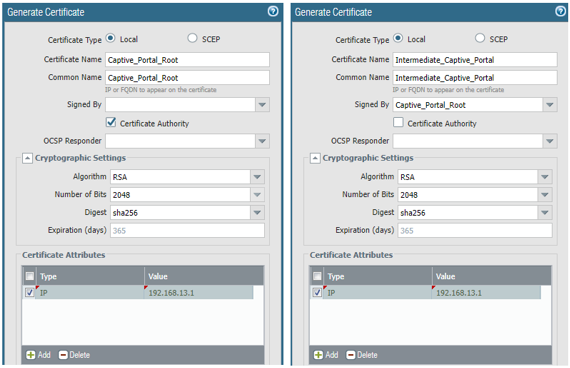

- Configure the certificates.
Go to Device > Certificates > Generate
- Create SSL Profile and attach the certificate.
Go to Device > SSL/TLS Service Profile > Add

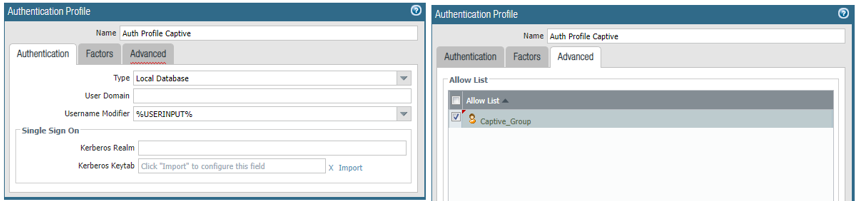

- Configure an authentication profile and add the created group.
Go to Device > Authentication Profile > Add

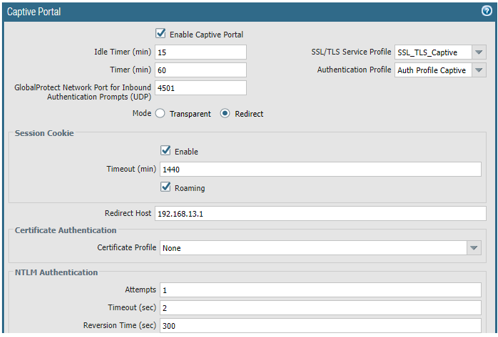

- Enable captive portal (Authentication Portal).
Note: The Captive Portal redirect host must be an IP address or FQDN assigned to a trusted firewall interface. It must be reachable only from your internal network and strictly isolated from the untrust/internet zone.
Go to Device > User Identification > Captive Portal

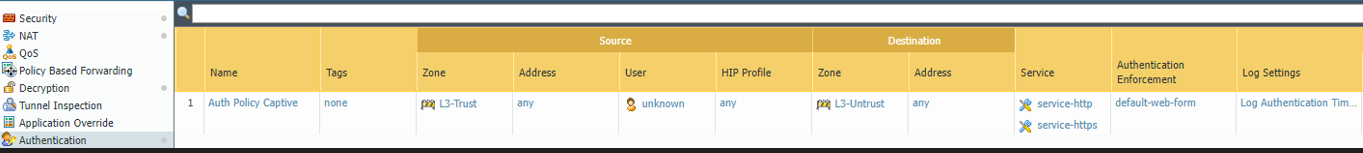

- Create an authentication policy.
Go to Policies > Authentication > Add

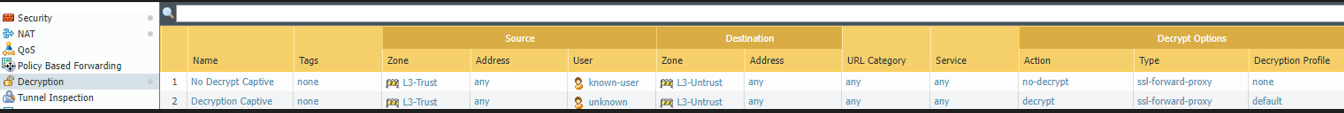

- Configure decryption policies.
Go to Policies > Decryption > Add

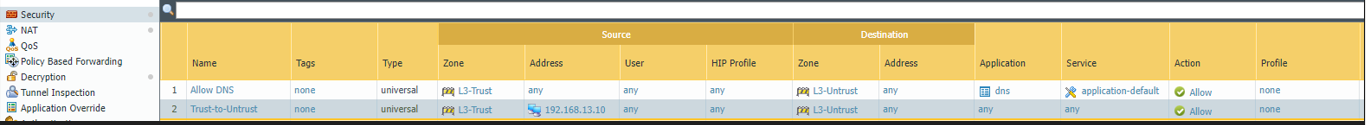

- Create a security policy to allow DNS and Captive portal traffic.
Go to Policies > Security > Add
- Import the certificates into the trusted root CA from the clients.
Go to Device > Certificates > Select the certificate > Export Certificate

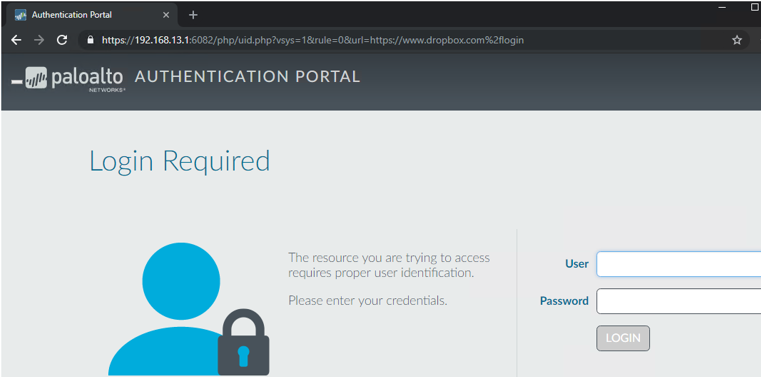

Once the certificates were added to the trusted root CA on the clients, open a web browser. Trying to connect to web sites will display the captive portal box.
