Prisma Cloud Compute: WAAS unable to block internet attacks for a Web Server hosted behind a Reverse Proxy Server

Sample Setup

{Internet} ---- [Reverse Proxy Server] ---- [Apache HTTP Web Server]

• Apache HTTP Web Server hosted behind a Reverse Proxy Server.
• Prisma Cloud Defender installed on the Web Server.
• However, Prisma Cloud WAAS unable to block internet attacks (such as SQL injection or SQLi) for this Web Server.

• Prisma Cloud Compute
• Reverse Proxy

• The attack will not be blocked by providing either the IP address or Hostname of the Internal Web Server under:

Compute > Defend > WAAS > Host > Rule > App definition > Protected endpoints > HTTP host.

• Review the WAAS Events under Monitor > Events > WAAS for hosts > Select an Attack type > Aggregated WAAS Events.

In the following example, we select the Attack type 'SQL Injection' to view all the Aggregated WAAS Events for this attack.


• The HTTP data section will provide decoded URL of the HTTP Host (Reverse Proxy Server URL in our case).
• Change the HTTP Host to this URL under:

Compute > Defend > WAAS > Host > Rule > App definition > Protected endpoints > HTTP host.

• For more information, refer: WAAS Troubleshooting
• To perform curl-based tests that can be used to verify endpoints have been properly defined, refer: App Firewall Settings

Eg. To test SQL injection, run the following command:

curl -I http://<http_hostname>:<external_port>/\?id\=%27%20OR%20%271

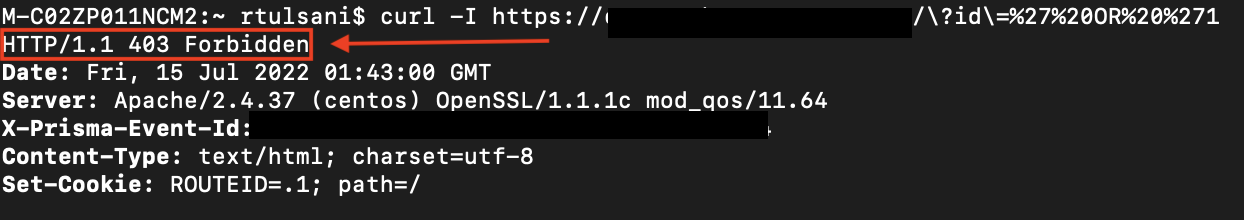

• If the attack is blocked successfully, you should see an HTTP 403 Forbidden message.
