How to export threat capture from a Panorama managed firewall using API
234
Created On 07/13/22 13:55 PM - Last Modified 11/17/25 20:02 PM
Objective
The objective of this article is to demonstrate how to export a threat capture from a firewall managed by Panorama using API.
Environment
- PanOS firewall
- Panorama management server
Procedure

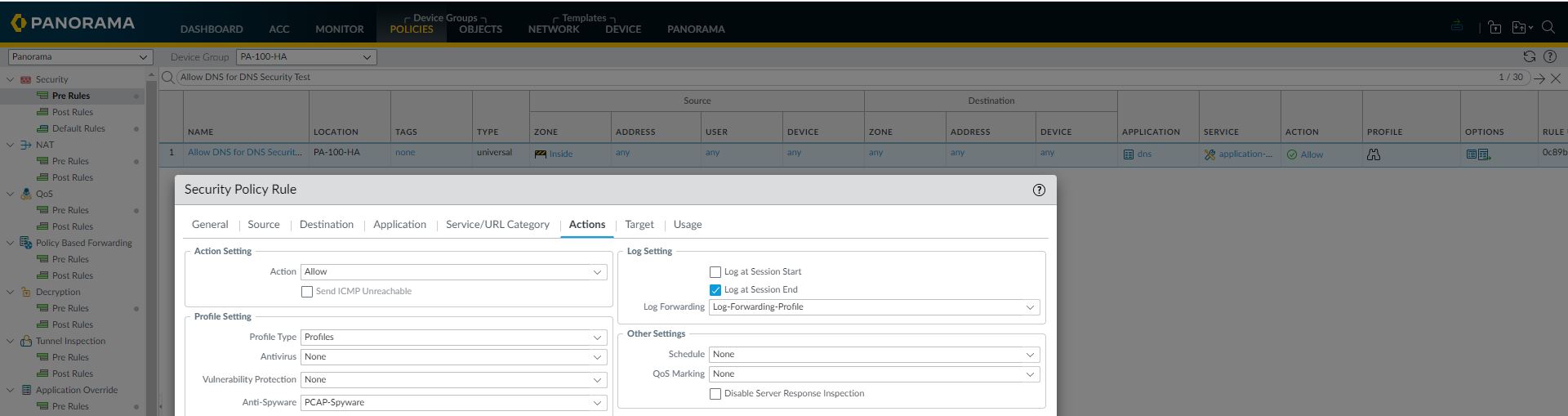

- For the purpose of this demo, one needs a firewall with a DNS security license. Basic security policy is created to allow DNS traffic and Anti-Spyware security profile with packet capture option enabled is attached to the policy.
- One needs to generate an API key for the Panorama management server. Either of the commands below can be used:
curl -k -X GET 'https://<panorama>/api/?type=keygen&user=<username>&password=<password>'or
curl -k -X POST 'https://<panorama>/api/?type=keygen&user=<username>&password=<password>'Note: Do not use semicolon character at the end of the command syntax.
A successful API call returns status="success" along with the API key within the key element:
<response status="success">
<result>
<key>api-key-test==</key>
</result>
</response>
- On a Windows machine behind the VM firewall, one can do nslookup for test C2 domain test-c2.testpanw.com.
C:\Users\admin>nslookup test-c2.testpanw.com 192.168.10.1 Server: UnKnown Address: 192.168.10.1 DNS request timed out. timeout was 2 seconds. DNS request timed out. timeout was 2 seconds. *** Request to UnKnown timed-out

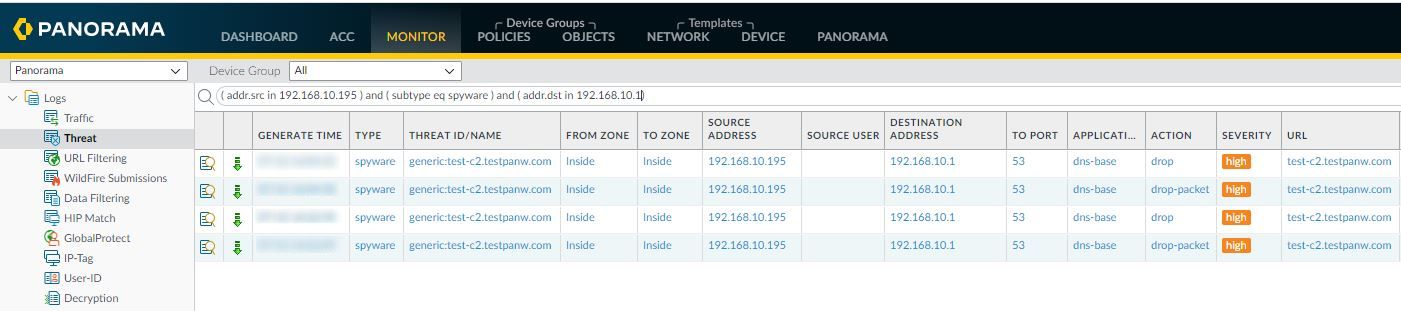

- The DNS request will be blocked and a threat log will be generated. Also a threat capture will be created, if enabled.

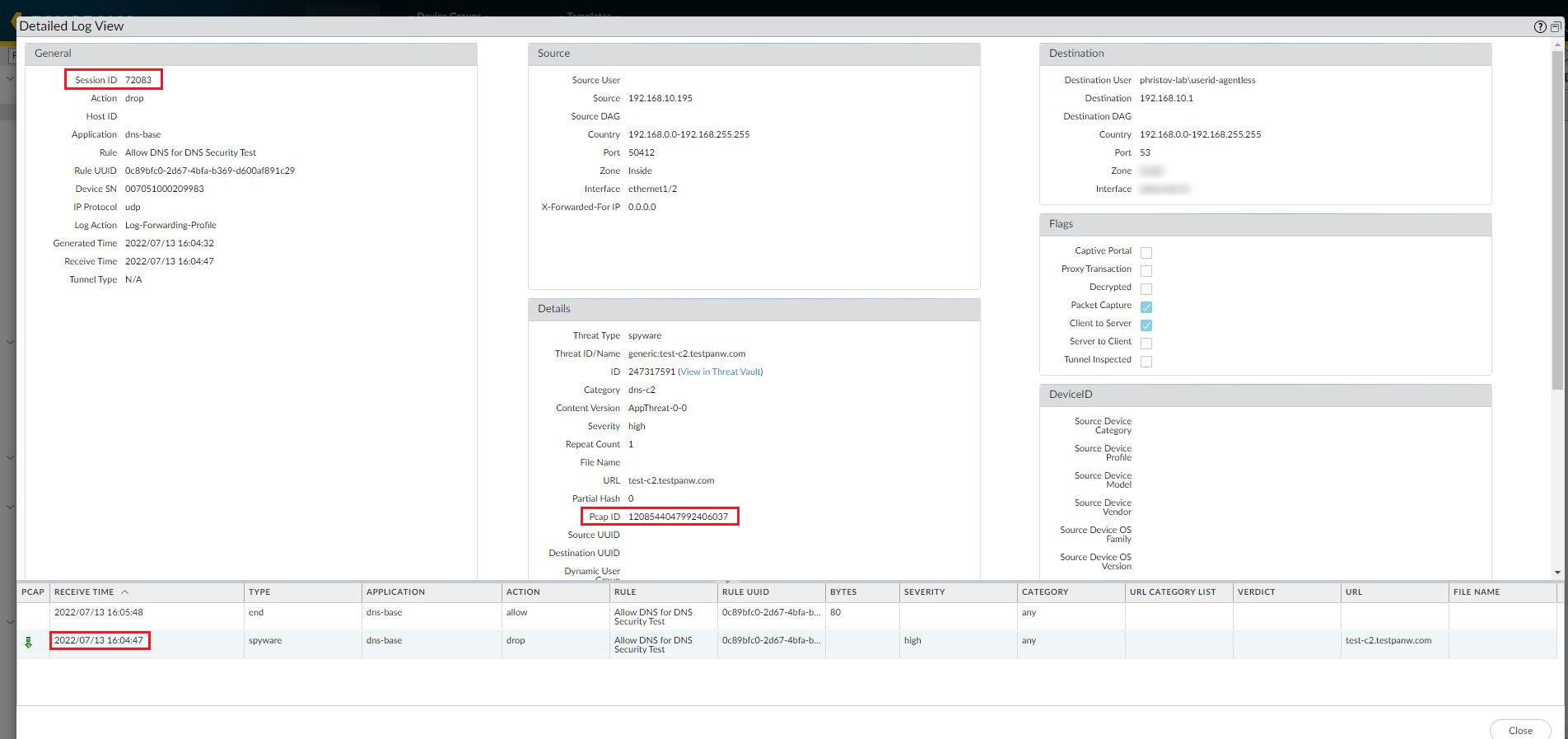

- One needs to check the details of the threat log and take a note of: session-id, pcap-id and receive-time as shown in the screenshot below:
- With that information available, one can query the firewall from Panorama via API. In the example below, one needs to replace: Panorama address, API key, firewall hostname, session-id, pcap-id and search-time parameters.
curl -k -X GET "https://panorama/api/?type=export&category=threat-pcap&key=api-key-test==&device_name=<firewall-hostname>&sessionid=72083&pcapid=1208544047992406037&search-time=2022/07/13+16:04:47" -o threat-pcap.pcap % Total % Received % Xferd Average Speed Time Time Time Current Dload Upload Total Spent Left Speed 100 120 100 120 0 0 83 0 0:00:01 0:00:01 --:--:-- 84

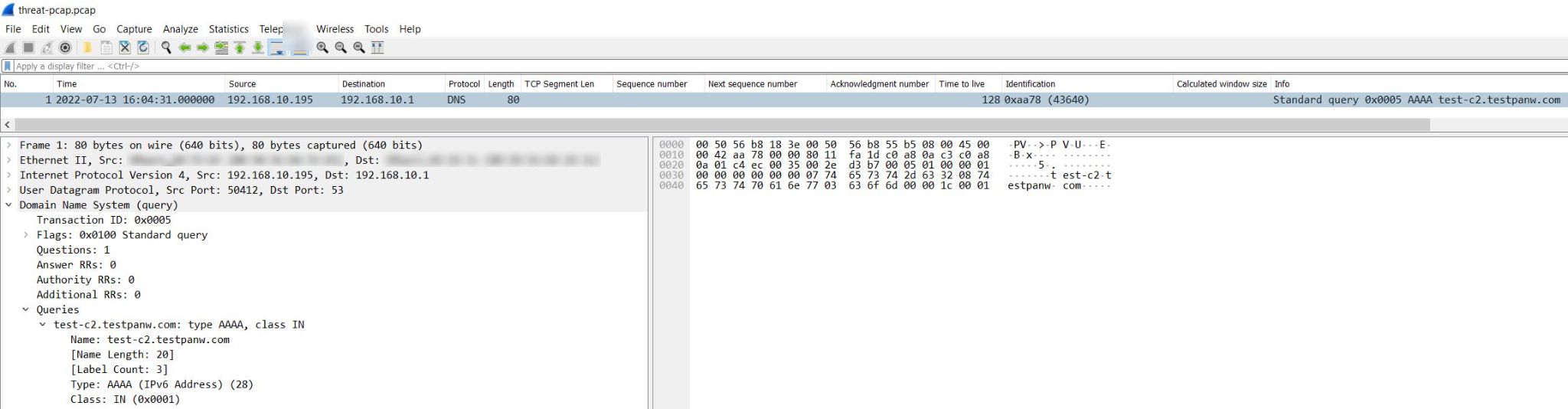

- The threat capture opened in Wireshark shows the DNS query packet for domain test-c2.testpanw.com
Additional Information
HOW TO CONFIGURE EXTENDED PACKET CAPTURE
