How to see the Activity Graph for all WAN links in Prisma SDWAN?
1392
Created On 07/04/22 13:14 PM - Last Modified 01/07/26 03:53 AM
Objective
How to see the Activity Graph for all WAN links in Prisma SDWAN?
Environment
- Prisma SDWAN
- Activity Graphs
Procedure

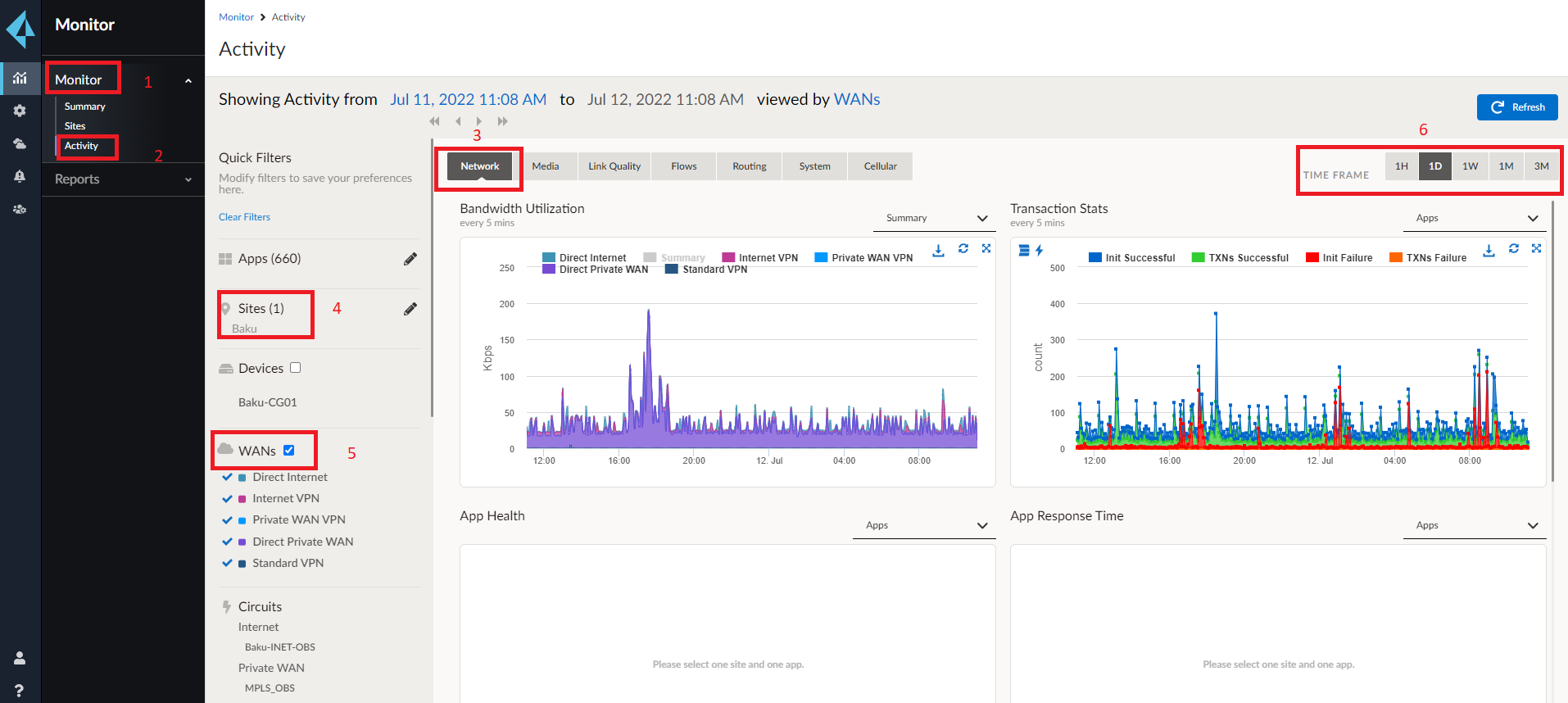

- Under the Prisma SD-WAN portal, go to GUI: Monitor > Activity > Network > Sites > WANs.
- Select Time frame as required eg. 1H, 1D, 1W, 1M, 3M).
- The activity graphs are displayed as shown below,

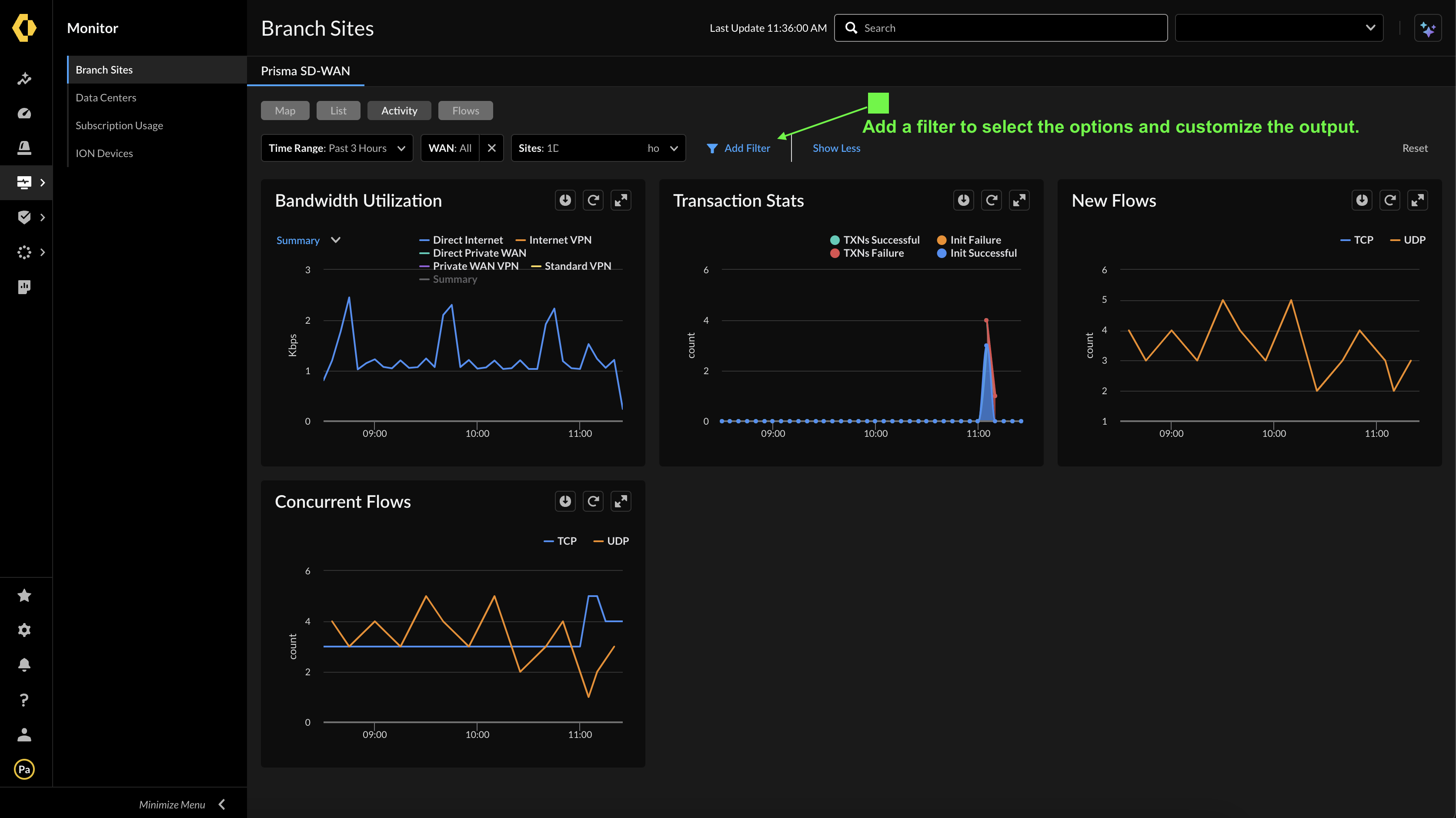

StrataCloudmanager portal: Monitor-->Branch-sites-->Prisma sdwan--> Activity.

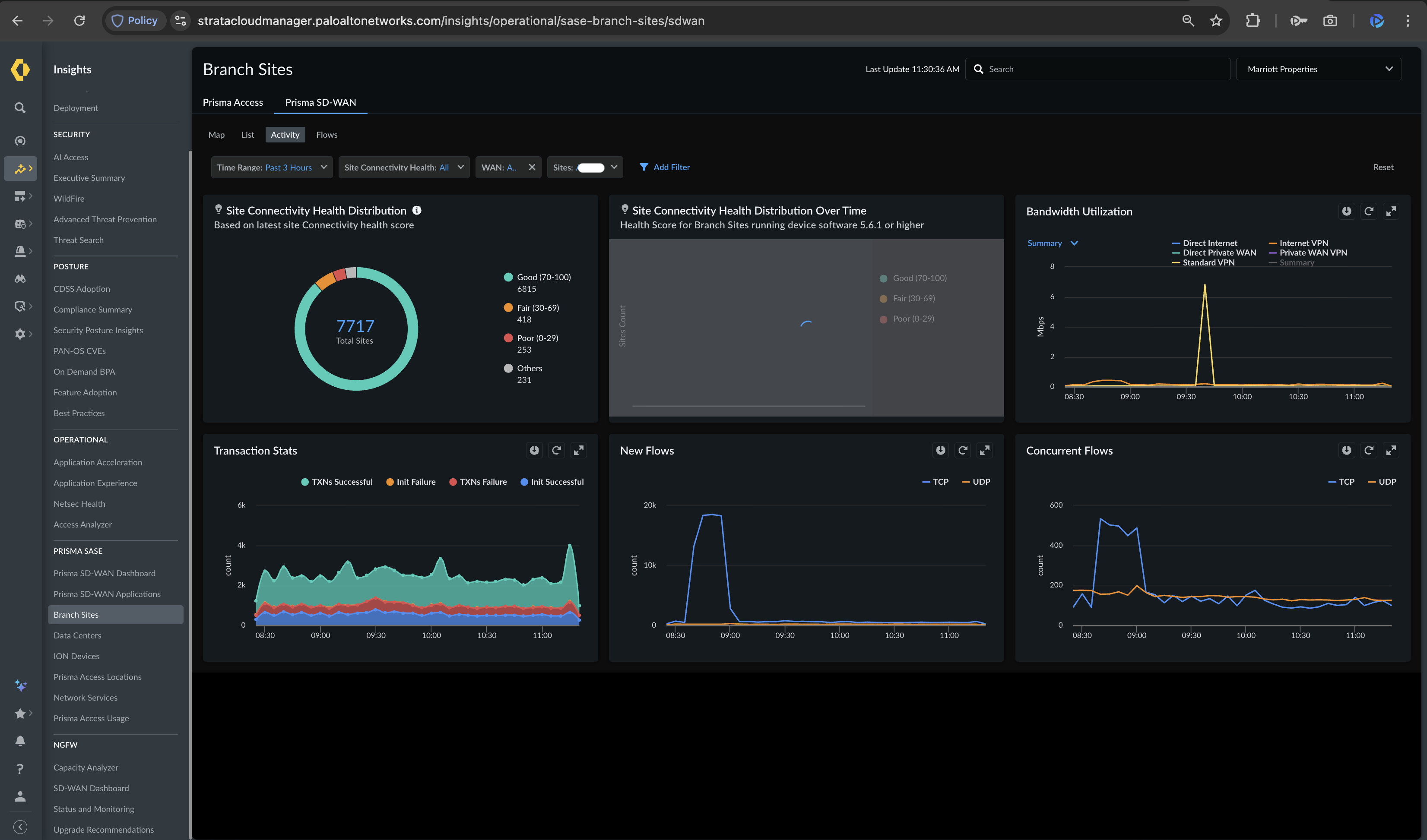

New StrataCloudmanager portal: insights--> Branch sites --> Prisma sdwan --> Activity
Additional Information
For more information, refer: Network Activity Charts
