How to block IKE Version 1 traffic with application signature

• Palo Alto Firewall
• Supported PAN-OS
• Custom Application.

​​​​​Step1: Create a custom application

On the Web UI:

1. Navigate to Objects > Applications
2. Click Add to bring up the Application dialog

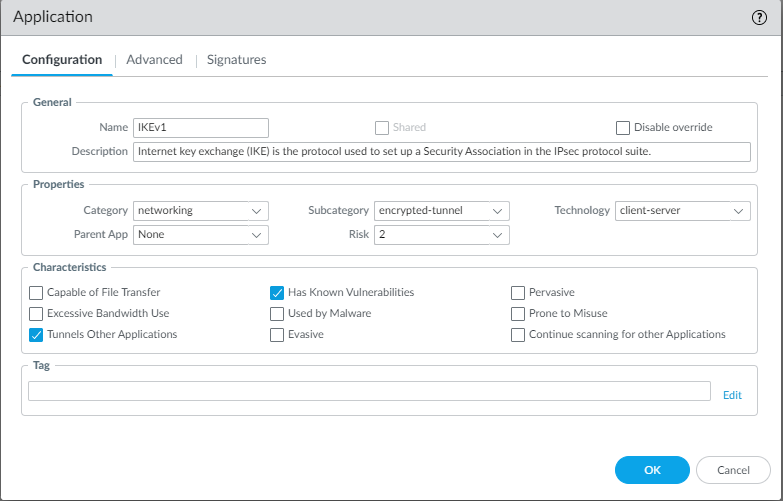

3. Under Configuration, we will configure the following fields:

• General
  • Name: IKEv1
  • Description: Internet key exchange (IKE) is the protocol used to set up a Security Association in the IPsec protocol suite.
• Properties
  • Category: networking
  • SubCategory: encrypted-tunnel
  • Technology: client-server
  • Parent App: ike
  • Risk: 2
• Characteristics
  • Evasive: no
  • Excessive Bandwidth Use: no
  • Used by Malware: no
  • Capable of File Transfer: no
  • Has Known Vulnerabilities: yes
  • Tunnels Other Applications: yes
  • Prone to Misuse: no
  • Widely Used: yes

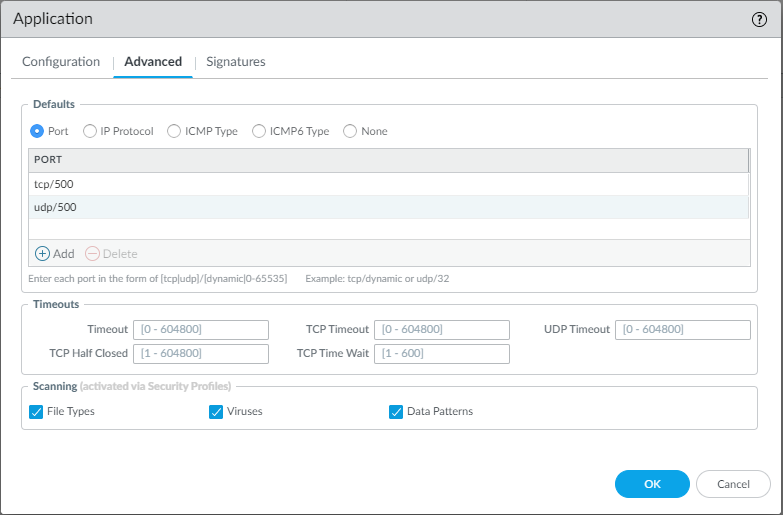

4. Under Advanced, we will configure the following fields:

• Defaults
  • We will check Port
  • Under PORT we will Click add and write: tcp/500
  •  Click add and write: UDP/500
• Timeouts - We will leave as default
• Scanning
  • We will check File Types, Viruses, Data Patterns

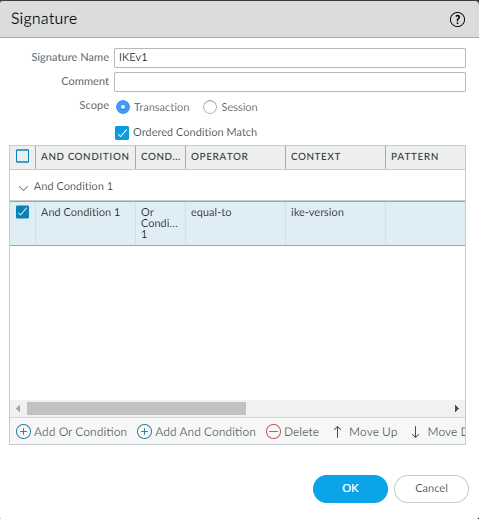

5. Under Signatures, we will configure the following

• Click Add to bring up the Signature dialog
  • In the Signature Name Field write the Signature name
  • In the Scope Field choose Transaction
  • Check the Ordered Condition Match option

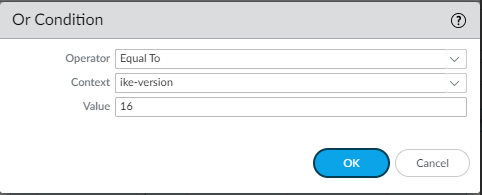

• Click Add and Condition to bring up the Condition dialog
  • On Operator choose Equal To
  • On Context choose ike-version
  • On Value write 16

Explanation on the "value field" - Ike version field contains 8 bits, first 4 bits for the numbers after the decimal point and the second 4 bits for the before the decimal point
For example: IKE version 1 is presented as 1.0, in binary it will present as 0001000 which equal to 16.
IKE version 2 is presented as 2.0, in binary it will present as 0010000 which equal to 32.

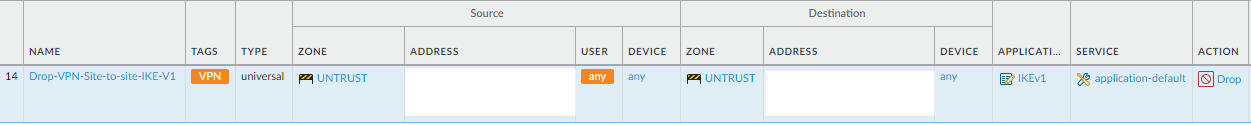

Step2: After creating the custom application Add this application to security rule with drop action:

Step3: Verify the IKEv1 negotiation is dropped in the security policy as shown in the following log:


And on the firewalls Tunnels panel:
