When configuring DNS Proxy Object on Panorama commit fails with error "server-profile is invalid"

When configuring DNS Proxy Object on Panorama commit fails with error "server-profile is invalid"

8600

Created On 05/30/22 23:46 PM - Last Modified 10/21/24 19:29 PM

DNS

Virtual Systems

PAN-OS

Panorama

Next-Generation Firewall

Symptom

Configure DNS proxy object on Panorama
Select the DNS Server profile
Commit and Push to Firewalls fail with error similar to "server-profile is invalid" and 'DNS Server Profile' is not a valid reference

Validation Error:
dns-proxy -> DNSProxy -> server-profile 'DNS Server Profile' is not a valid reference
dns-proxy -> DNSProxy -> server-profile is invalid
No DNS default obj found
(Module: dnsproxyd)
client dnsproxyd phase 1 failure
Commit failed

Environment

Palo Alto Networks Firewall and Panorama
Supported PAN-OS
DNS Proxy Objects
Multiple virtual systems

Cause

Multi Vsys is not enabled on the Firewall.

Resolution

Enable the multi-vsys option on the Firewall (Step 1 of Configure Virtual System )
For the Firewalls that does not support "multi-vsys, select the location as "Shared"
For the Firewalls supporting multi-vsys enable the multi-vsys option and select the correct vsys
Commit should work without issue

Example:

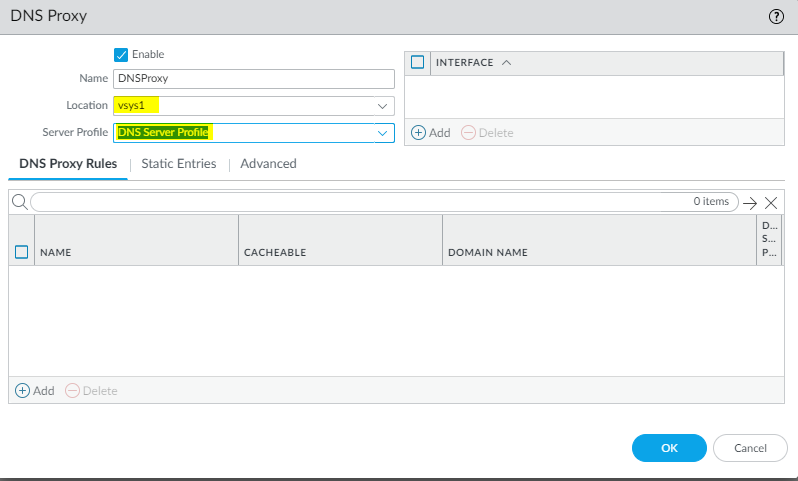

DNS proxy object with vsys1 as a Location

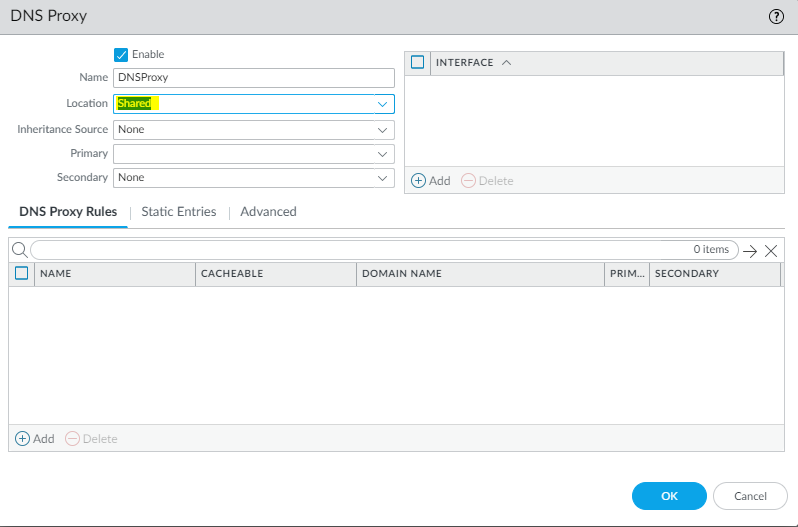

DNS proxy object with Shared a Location

Additional Information
