How to Upgrade VM-Series Model (and Stop Upgrade)

How to Upgrade VM-Series Model (and Stop Upgrade)

221
Created On 05/08/22 23:26 PM - Last Modified 05/17/22 17:38 PM


Resolution
To upgrade a VM-Series NGFW model:
  1. Login to Customer Support Portal for the account which owns the asset.
  2. You can upgrade VM-Series NGFWs two ways, (a) using Assets > Devices or (b) Assets > Network Security.
Assets > Devices

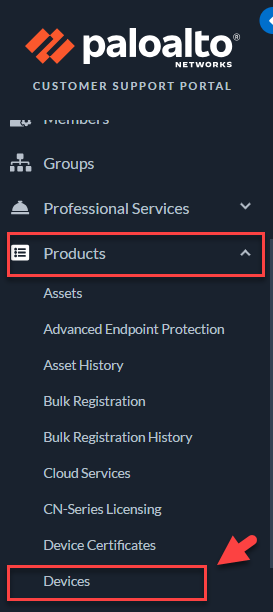

1. Click Assets >. Devices.

Screen Shot 2022-05-16 at 3.20.58 PM.png

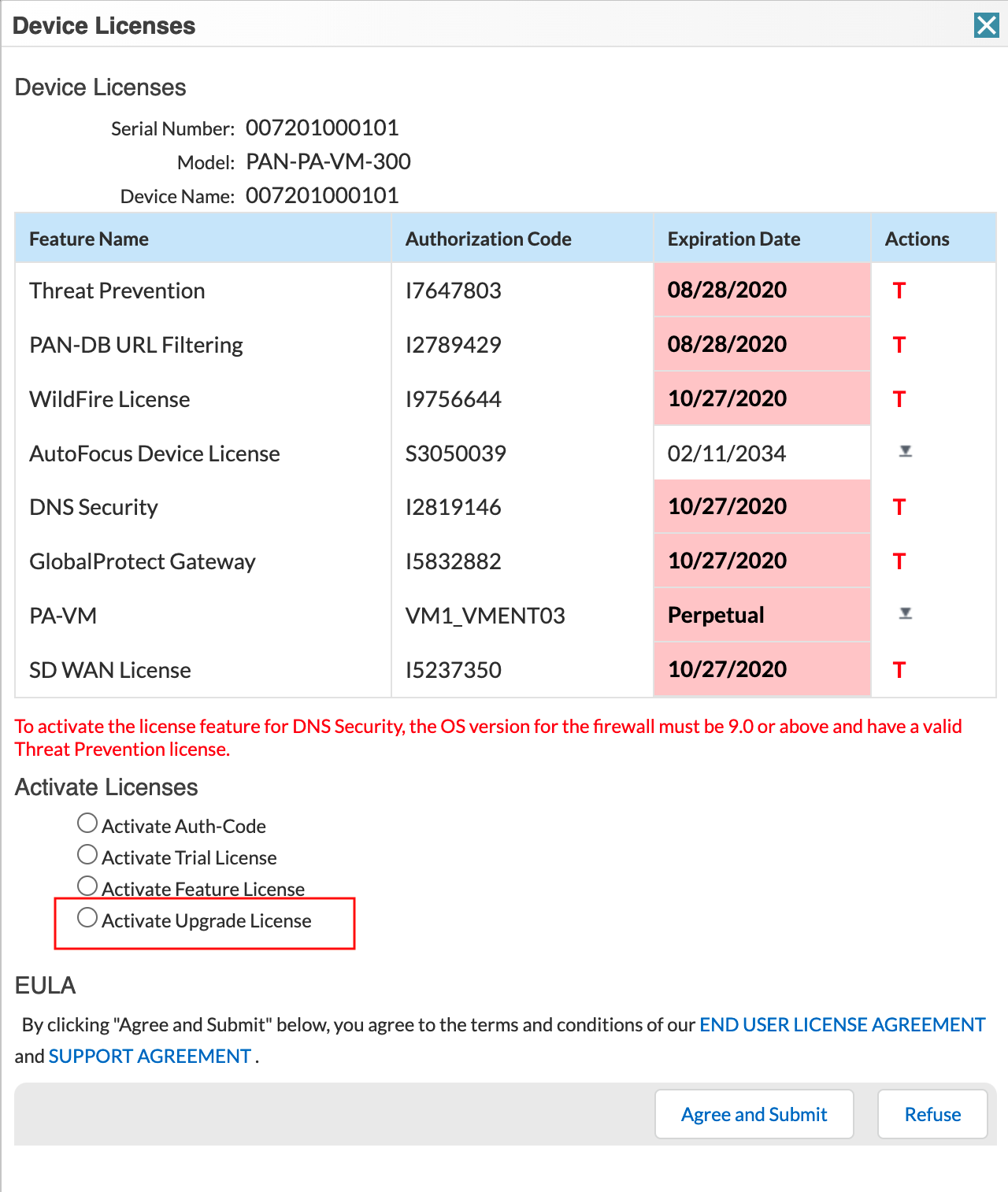

2. Find the device, click on the Actions icon for the VM-Series device.  Then, select Activate Upgrade License.

Screen Shot 2022-05-16 at 6.53.43 PM.png

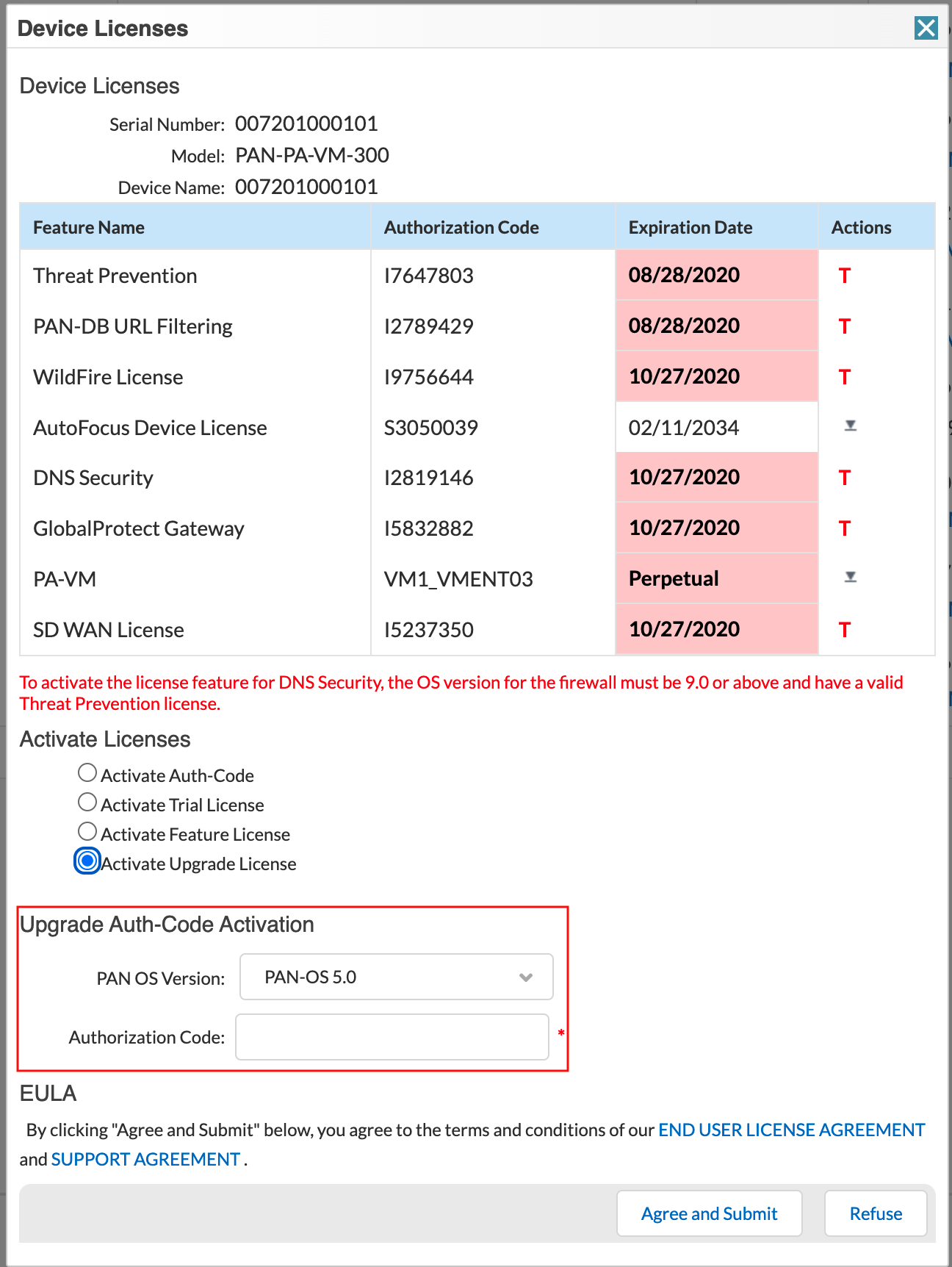

3. Select PAN OS Version, and enter your purchased Authorization Code.  Click Agree and Submit.

Screen Shot 2022-05-16 at 6.55.30 PM.png
4. Stop upgrade.  If a VM-Series NGFW is undergoing an upgrade, CSP displays a message that this NGFW is being upgraded, and you can stop the upgrade.  However, if the upgrade completes, you will not be able to rollback the upgrade.


Assets > Network Security

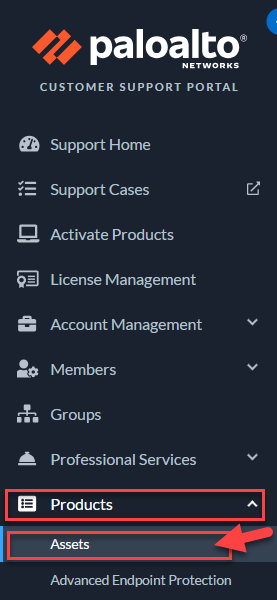

  1. Click Assets > Network Security.
Screen Shot 2022-05-03 at 1.35.11 PM.png

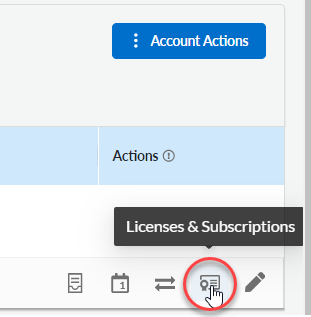

        2. Find the device, click on the Licenses icon for the device.

Screen Shot 2022-05-08 at 4.24.30 PM.png

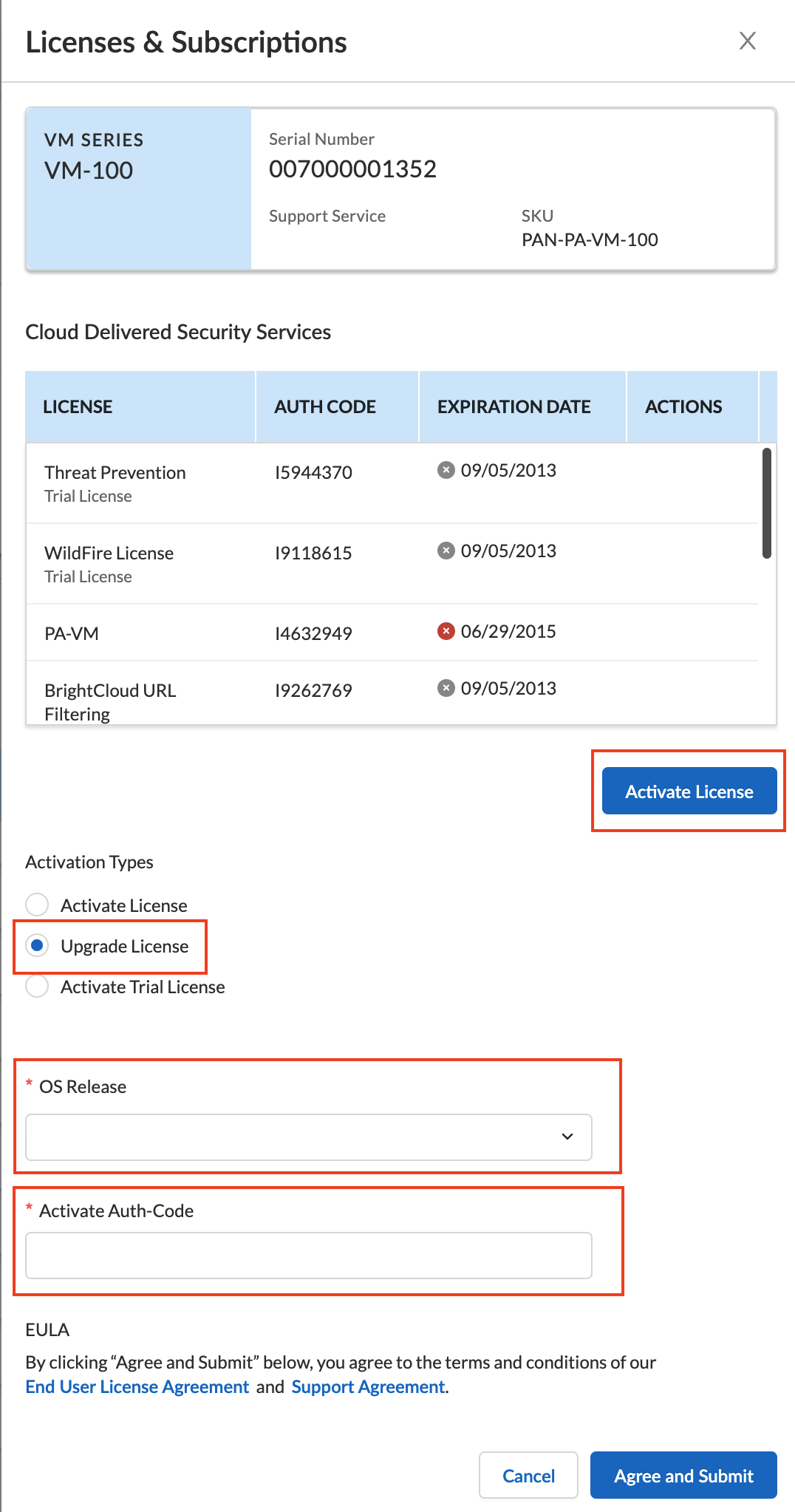

4. Click Activate License button, select Upgrade License.  Select OS release and enter Auth Code.   Then, click Agree & Submit.

Screen Shot 2022-05-08 at 4.28.11 PM.png
.
5. Stop upgrade.  If a VM-Series NGFW is undergoing an upgrade, CSP displays a message that this NGFW is being upgraded, and you can stop the upgrade.  However, if the upgrade completes, you will not be able to rollback the upgrade.
