How to view Azure Cloud NGFW NAT Rules & Hit Count from Panorama WebUI

How to view Azure Cloud NGFW NAT Rules & Hit Count from Panorama WebUI

5114
Created On 02/07/24 03:04 AM - Last Modified 06/28/24 00:40 AM


Objective


View Cloud NGFW NAT Rules configured through Azure portal and Hit Counts on it from Panorama WebUI.

Environment


  • Cloud NGFW (Next Gen Firewall) on Azure
  • Panorama
  • NAT

Procedure


  1. Make sure you already have NAT rules configured under Cloud NGFW on Azure.
Login to Azure > Cloud NGFWs by Palo Alto Networks > Select your Firewall > Settings > Networking & NAT

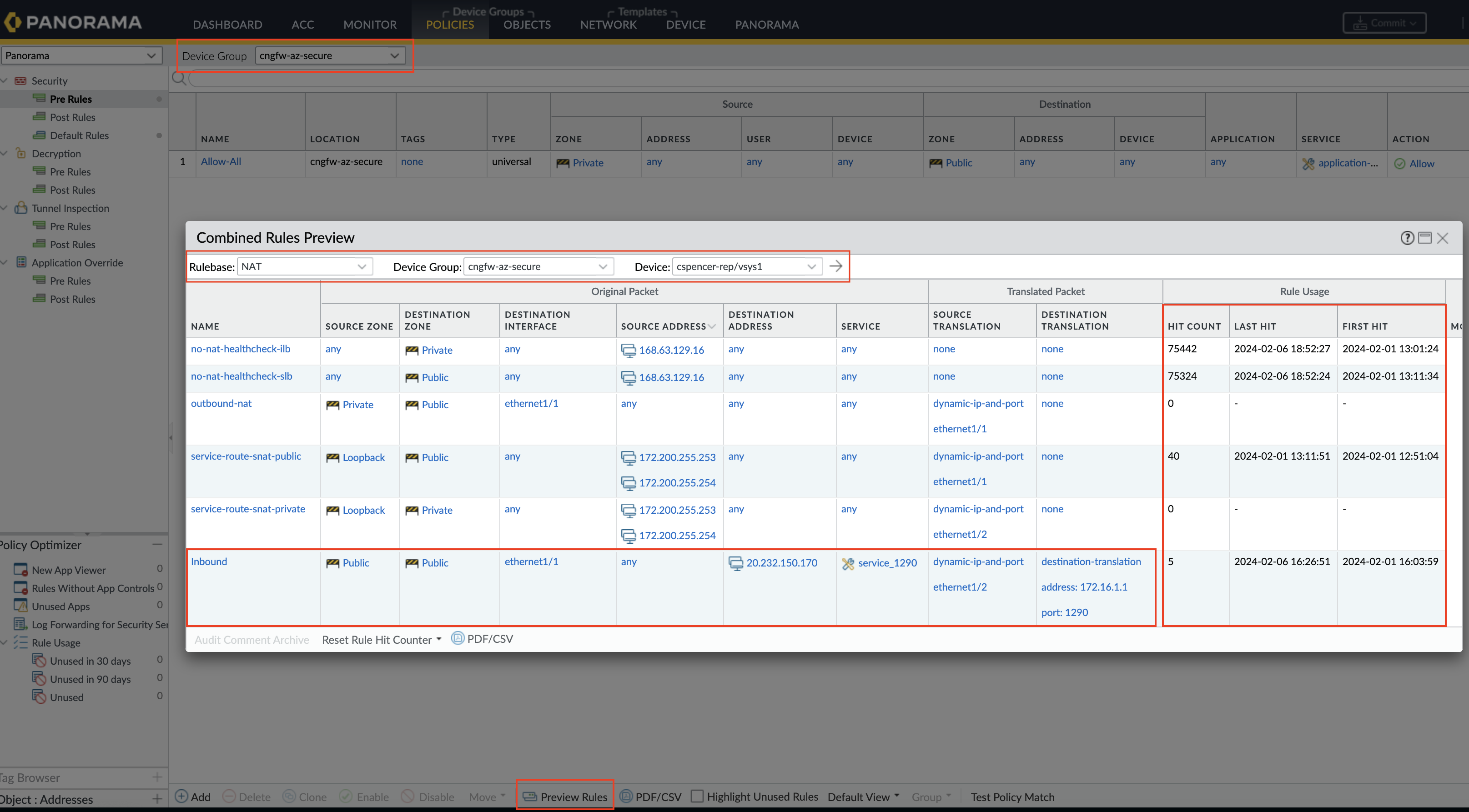

  1. On Panorama, select Cloud NGFW Device Group: Click on Preview Rules at the bottom of the screen and set the Rulebase to NAT, Device Group & Device to your Cloud NGFW to see the NAT rules and Hit Count.
Login to Panorama > Device Group > Policies  > Select your Cloud NGFW device group > Preview Rules
