Cómo solucionar problemas de conexión e incorporación del firewall con Strata Cloud Manager
17376
Created On 12/19/23 21:58 PM - Last Modified 10/15/25 14:58 PM
Objective
Solución de problemas de conexión entre el firewall y Strata Cloud Manager
Environment
- Cortafuegos
- Administrador de nubes Strata
Procedure
- Primero asegúrese de haber seguido todos los pasos del documento Incorporar un firewall .
- Permitir la comunicación entre Palo Alto Networks Next-Gen Firewall (NGFW) y Strata Cloud Manager en los puertos TCP y nombres de dominio completos (FQDN) .
- Check the output of the CLI command:
> show cloud-management-status Managed by Cloud Management Service Endpoint : cyzf2994-f01f-48f7-ab8c-d1cd4b439200.prod.us.ngfw.cloudmgmt.paloaltonetworks.com Connected : yes DNS: msg: Successfully resolved FQDN status: success timestamp: 2023/11/07 12:43:15 TCP: msg: TCP channel established status: success timestamp: 2023/11/07 12:43:15 SSL: msg: SSL channel established status: success timestamp: 2023/11/07 12:43:15

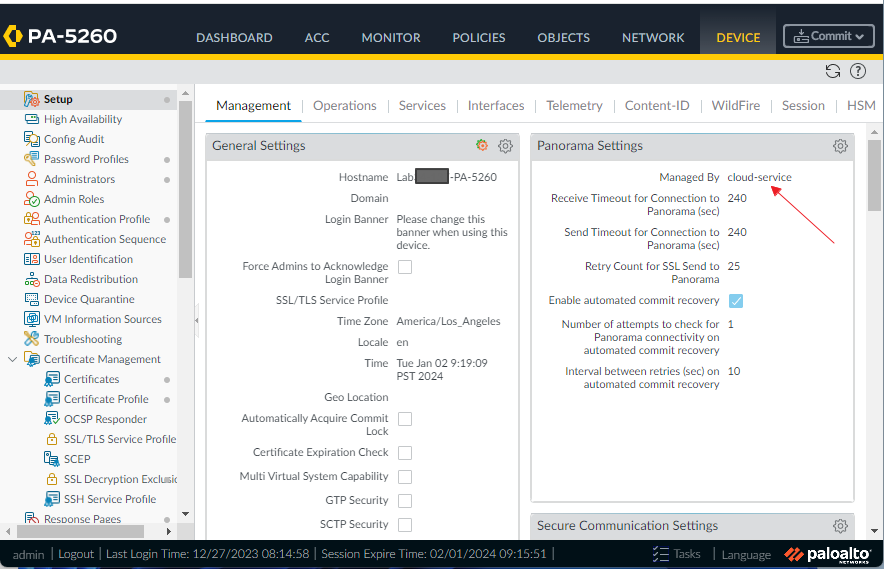

- Si el FQDN del punto final no aparece en el resultado del comando anterior, lo más probable es que no haya configurado el cortafuegos para que lo administre el servicio en la nube. Vaya a Dispositivo > Configuración > Administración y edite la Configuración de Panorama .
- If the DNS doesn't show that it successfully has resolved FQDN in the command above, verify that both ntp and dns are configured properly under Dispositivo > Configuración > Servicios
> show ntp > traceroute host <Endpoint fqdn that is in the output of step 2 >
- If the TCP channel is not showing as established in the command above, then check the ms.log and look for message similar to below:
> less mp-log ms.log: 2023-10-09 13:24:27.060 -0700 Error: pan_comm_get_tcp_conn_gen(comm_utils.c:702): COMM: cannot connect. remote ip=35.69.247.210 port=3978 err=Connection timed out(110) sock=18 2023-10-09 13:26:58.612 -0700 Error: pan_comm_get_tcp_conn_gen(comm_utils.c:702): COMM: cannot connect. remote ip=35.69.247.210 port=3978 err=Connection timed out(110) sock=18 2023-10-09 13:29:17.876 -0700 Error: pan_comm_get_tcp_conn_gen(comm_utils.c:702): COMM: cannot connect. remote ip=35.69.247.210 port=3978 err=Connection timed out(110) sock=18 2023-10-09 13:31:37.140 -0700 Error: pan_comm_get_tcp_conn_gen(comm_utils.c:702): COMM: cannot connect. remote ip=35.69.247.210 port=3978 err=Connection timed out(110) sock=18
You can also use the output of the CLI command:> show netstat numeric-hosts yes numeric-ports yes | match 3978 tcp 0 1 192.168.34.137:52324 35.69.247.210:3978 SYN_SENT <<<<<
which indicates that the firewall is sending the SYN but there is a device in between the firewall and the Virtus server / endpoint of the Strata Cloud Manager that is blocking the SYN/ACK. Note: 35.69.247.210 is the IP address that the FQDN of the Virtus server "cyzf2994-f01f-48f7-ab8c-d1cd4b439200.prod.us.ngfw.cloudmgmt.paloaltonetworks.com" (shown in the output of the CLI command in step 2) resolves. - If TCP connection is established but the output for the SSL is empty as shown below:
TCP: msg: TCP channel established status: success timestamp: 2023/12/19 13:37:25 SSL: msg: status: timestamp:Then this most likely indicates a problem with the SSL handshake or a device blocking the SSL connection. To verify this, perform a tcpdump on the management interface with the host being the IP address to which the Endpoint FQDN resolves:> tcpdump filter "host 35.69.247.210"
Export the packet capture to an SCP server so you can check which device is resetting the connection.> scp export mgmt-pcap from mgmt.pcap to user1@192.168.222.88:/home/user1/
Also, since this traffic is identified as SSL on port 3978, make sure that your gateway FW's security policy rule, if applied to this traffic, is not configured with service "application-default". Otherwise it will not allow this traffic.
Additional Information
Palo Alto Networks NGFW (Managed by Strata Cloud Manager) utiliza el puerto no estándar dedicado 3978 para comunicarse con Strata Cloud Manager de valor predeterminado. En PAN-OS 11.2 , puede configurar la incorporación de NGFW (Managed by Strata Cloud Manager) a Strata Cloud Manager para que utilice el puerto de destino 443 en lugar del puerto 3978. Puede revisar la nueva función aquí:
https://docs.paloaltonetworks.com/pan-os/11-2/pan-os-release-notes/features-introduced-in-pan-os/management-features?otp=concept-nk2_nxh_2bc#concept-nk2_nxh_2bc
