LACP エラー : イーサネット x/y idx z 受信した PDU パートナーがローカル アクターと一致しません
7534
Created On 11/16/23 23:26 PM - Last Modified 12/19/23 05:21 AM
Symptom
システムログから
critical lacp ethern link-do 0 LACP interface ethernet1/16 moved out of AE-group ae1. Selection state Unselected(Link down) critical lacp ethern nego-fa 0 LACP interface ethernet1/16 moved out of AE-group ae1. Selection state Unselected(Negotiation failed) critical lacp ethern nego-fa 0 LACP interface ethernet1/15 moved out of AE-group ae1. Selection state Unselected(Negotiation failed) critical lacp ethern nego-fa 0 LACP interface ethernet1/14 moved out of AE-group ae1. Selection state Unselected(Negotiation failed) critical lacp ethern nego-fa 0 LACP interface ethernet1/13 moved out of AE-group ae1. Selection state Selected
l2ctrld.log から
+0000 post LACP event to DP: if_idx 28, up 1
+0000 log ethernet1/13 idx 28 join lag
+0000 ethernet1/13 idx 28 set to unselected, clear actor sync
+0000 ethernet1/13 idx 28 received pdu partner does not match local actor
+0000 Recved LACPDU actor:
sys_pri 32768, system_mac 02:8e:38:13:4c:a7, key 1, port_pri 32768, port_num 341, state 0x3f partner
sys_pri 4000, system_mac 00:23:04:ee:be:63, key 32779, port_pri 32768, port_num 16642, state 0x3d Selecting ethernet1/13, idx 28
Environment
任意の PA ファイアウォール
PAN-OS 10.0.0 以降
Cause
問題の原因は、次の
1が原因である可能性があります。 ファイアウォールとピアデバイス
2の両方で、LACPモード、伝送速度設定の設定を確認します。 ピア・デバイスで、予期しないPDU
3を送信している可能性がある問題。 SFP の互換性
4. ケーブル接続またはポートの問題
Resolution

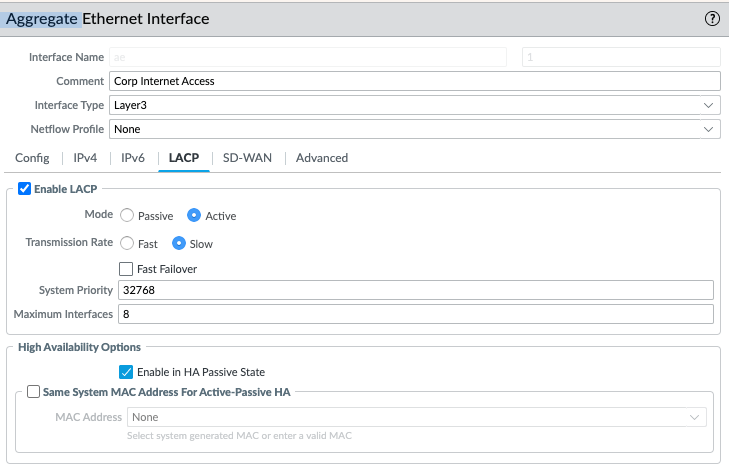

1.必要なモード、つまりアクティブ/パッシブおよび伝送速度の低速/高速が設定されている
ことを確認してください2。 お客様は、設定に不一致がある場合にトラブルシューティングを行い、ピアデバイスのログを確認する必要があります。
3. 両方のピアが SFP の互換性
を確認する必要があります 4. 両方のピアでレイヤ 1 の問題を確認する必要があります
