ACC shows spike in bytes transmitted.
13905
Created On 08/10/20 15:36 PM - Last Modified 12/22/22 03:58 AM
Symptom
- When reviewing ACC activities one may observe traffic spike for specific destination or application for short period of time.

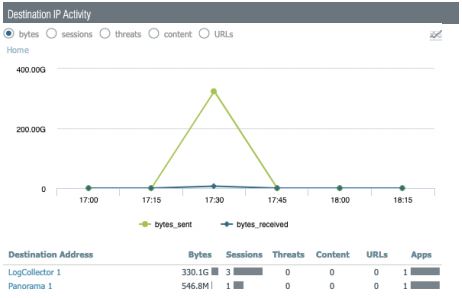

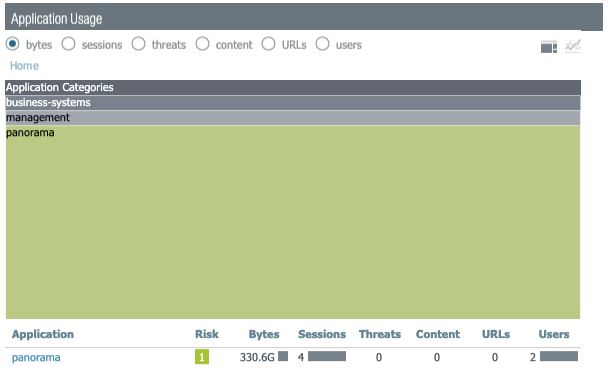

- In the example below filter for the past 30 minutes show the firewall has sent 330GB logs to a dedicated Log Collector.
Environment
- Palo Alto Firewall
- Supported PAN-OS
- ACC ( Application Command Center)
Cause
- The amount of bytes is calculated and recorded at the end of the session.
- The amount of bytes we see in the ACC is the total amount of bytes transmitted during the lifetime of a session and can be expected behavior depending on how long the session has been active.
- In the example, this was a session which was active for a few months and the traffic details were recorded at the end of the session.
Resolution
Review the Session information on the firewall for the related traffic under Monitor>Traffic logs to find consistency with the ACC Tab.
Additional Information
Other considerations when using ACC:
- ACC runs on Summary Database and not on Detailed Database.
- Summary Databases does not include logs when action is Deny.
- Summary Databases are created every 15 minutes.
