SSL decryption error (Inbound) incomplete chain
24625
Created On 07/13/20 19:36 PM - Last Modified 08/20/20 08:52 AM
Symptom
- SSL decryption (Inbound) worked as expected on the firewall
- But when a customer runs cURL command from specific devices they receive error message "SSL error incomplete chain"
- The error affected a few machines in the network. The affected systems did not have certificate stores.
- Checking the certificate using https://www.ssllabs.com/ssltest/index.html, we received the same error listed below
Error: This server's certificate chain is incomplete
Environment
- Any PAN-OS
- Palo Alto Firewall with Decryption configured.
- End hosts does not have certificate store (example: old Novell systems)
- Certificates imported on the Firewall.
Cause
Certificates imported in the wrong order causes "SSL error incomplete chain" error on systems that do not have a local certificate store.
Resolution

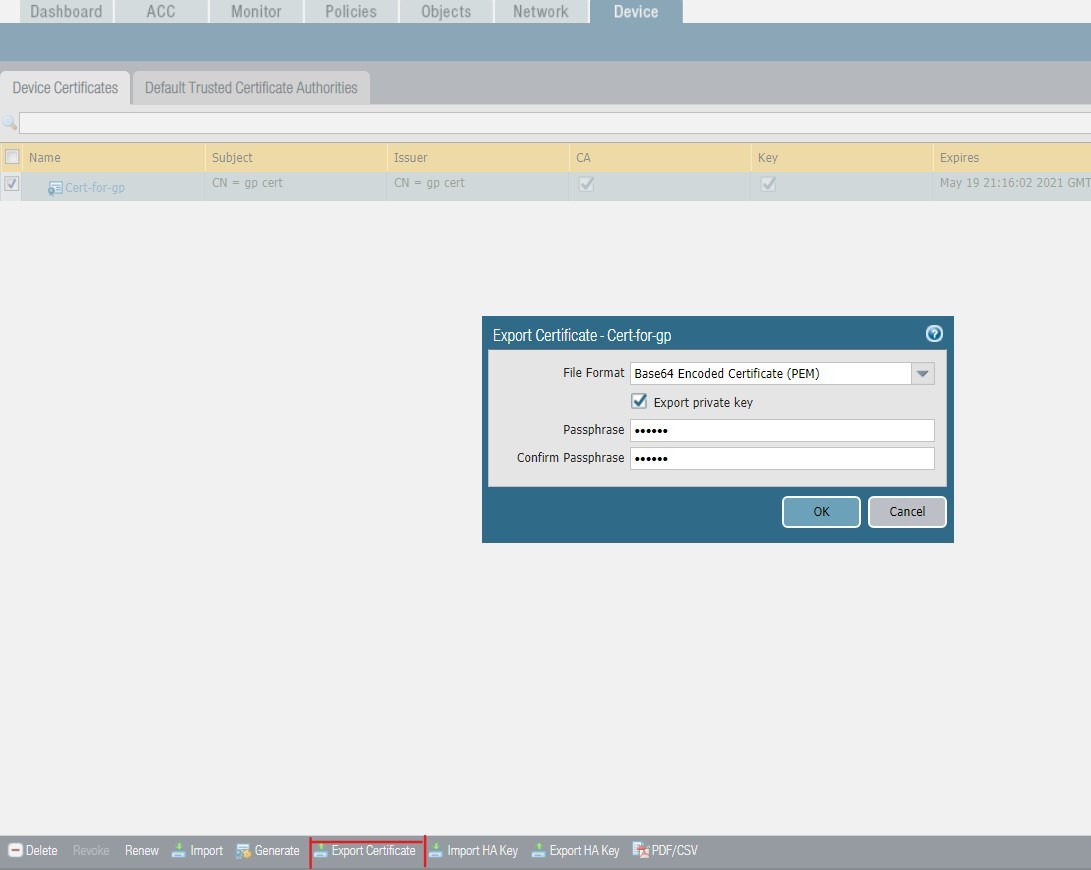

- From the firewall export the existing Certificates including the private key using GUI: Device > Certificate Management > Certificate > Select the certificate > Export Certificate, check the checkbox "Export private key" and enter any Passphrase.
- Save the exported certificate to the local desktop
- Repeat this process for all certificates

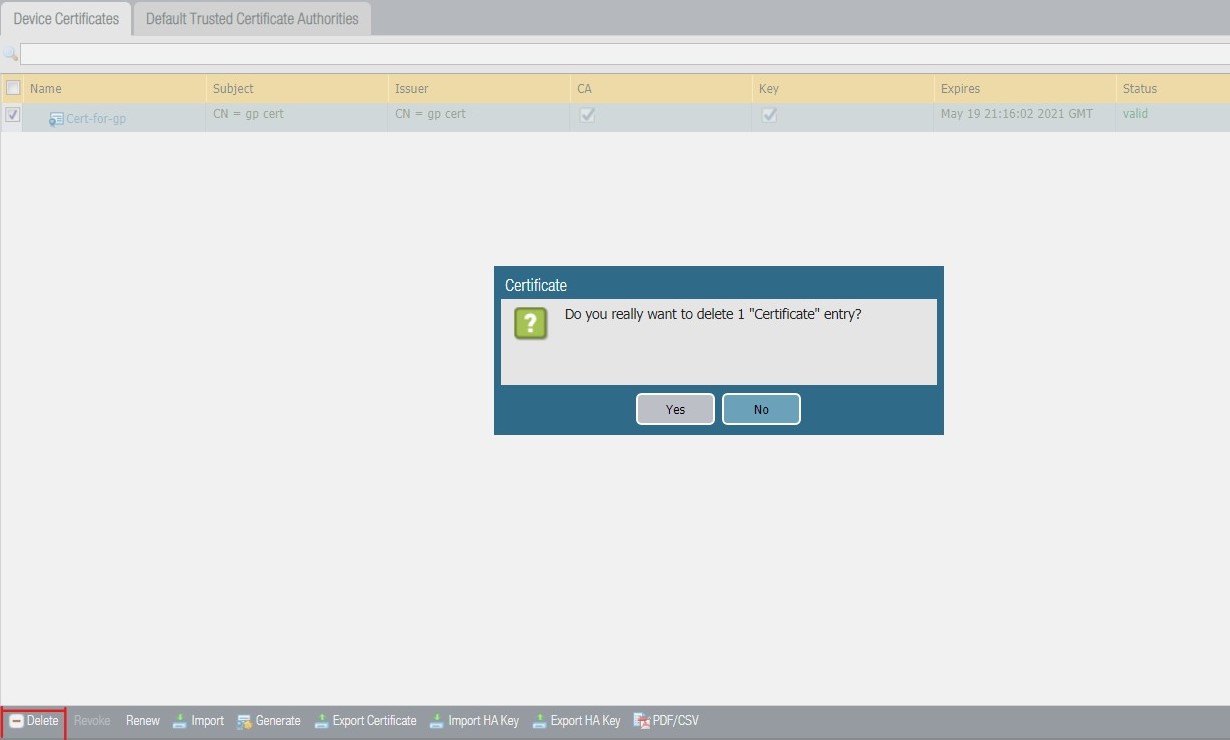

- Once certificates are saved, Delete the existing certificates from the firewall using GUI: Device > Certificate Management > Certificate > Select the certificate > Delete. Note that if the certificate is being used, it will show an error. Remove the references for the certificate and try again.
- Re-import the certificate in the correct order which is
- Root CA
- Server certificate.
- Client Certificate.

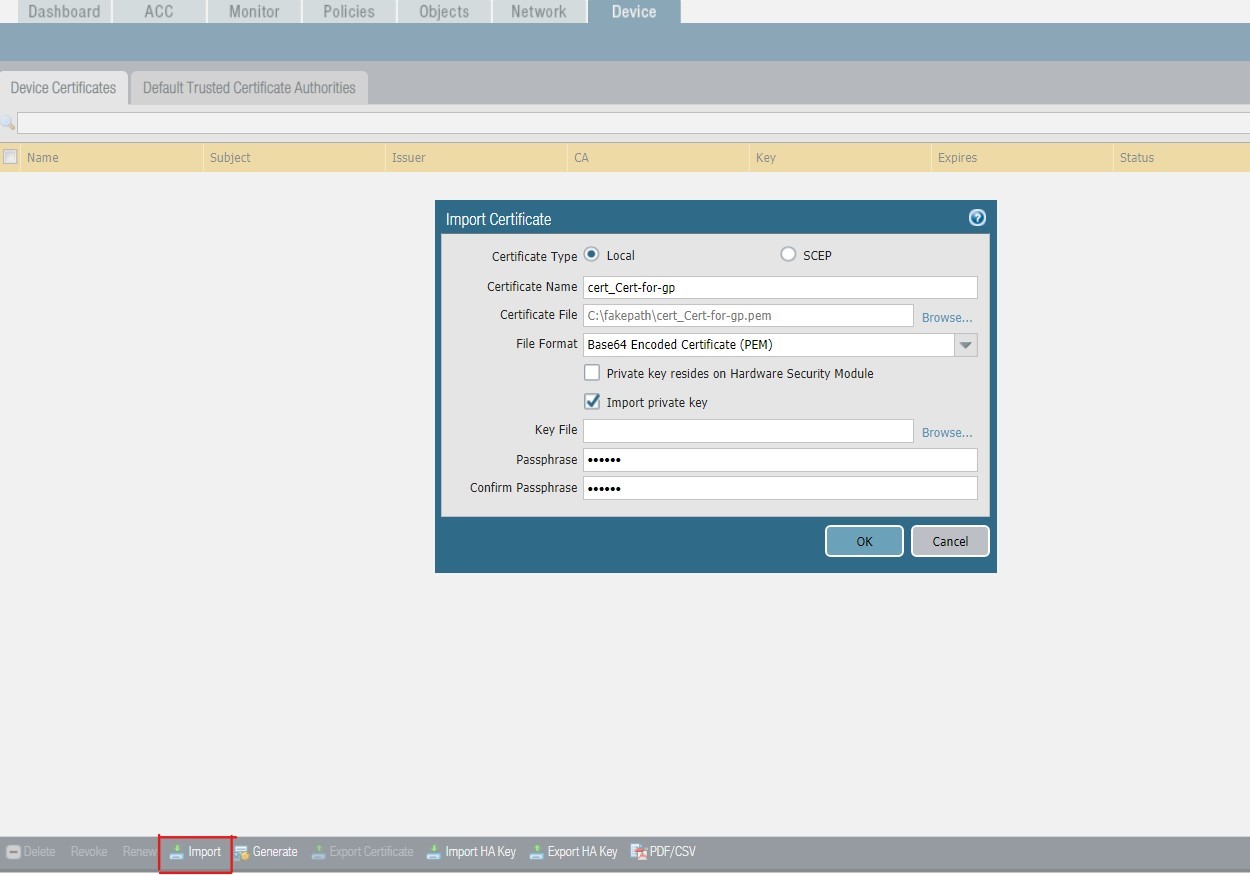

Use GUI: Device > Certificate Management> Certificate >Import (Enter the required information such as Certificate Name, Certificate File location and check the checkbox "Import Private Key" and enter the Passphrase, refer to the screenshots below.
- Add the certificate back in the respective profiles such as certificate profile / ssl-tls-profile etc and commit the configuration.
- Retest the certificate using curl or SSL labs URL, the error should not be seen.
