How to Block IP in IP application CVE-2020-11896 and CVE-2020-11898
13911
Created On 07/08/20 19:04 PM - Last Modified 07/08/20 19:05 PM
Objective
How to block ip in ip traffic to mitigate CVE-2020-11896 and CVE-2020-11898
Environment
All Palo Alto Firewalls and Palo Alto OS's 8.1 and up
Procedure
To block IP in IP traffic simply create a deny rule toward the top of the rule stack.

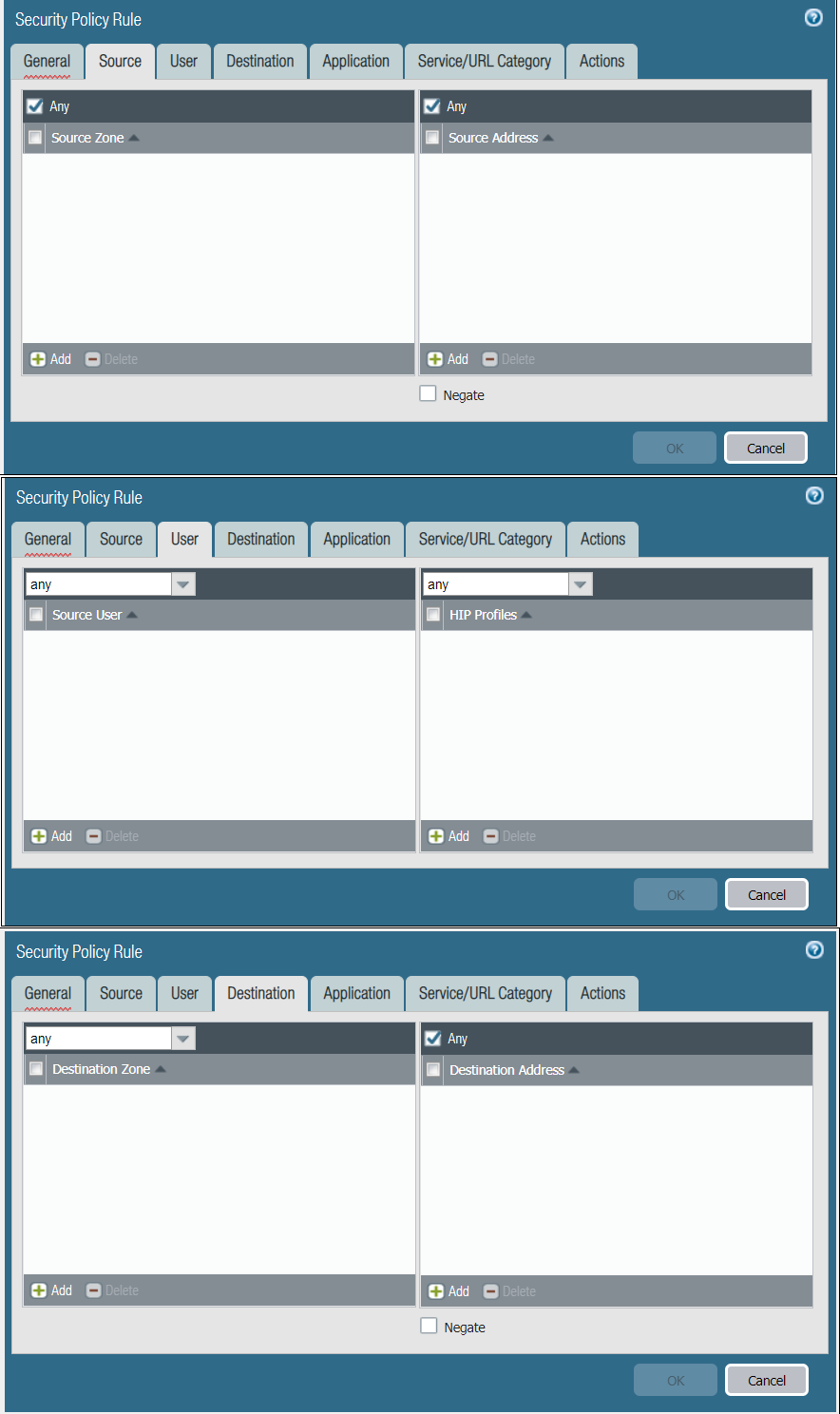

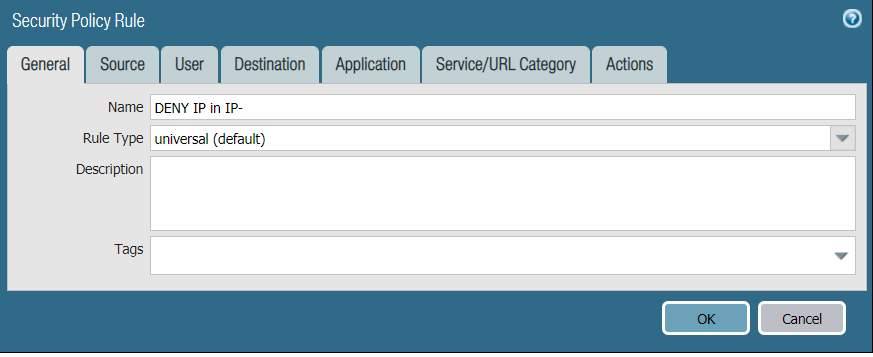

Name the rule, then set Source, User, and Destination to the endpoints or network area you wish this rule to cover.
In my example I want to cover the entire network so I set them to ANY.

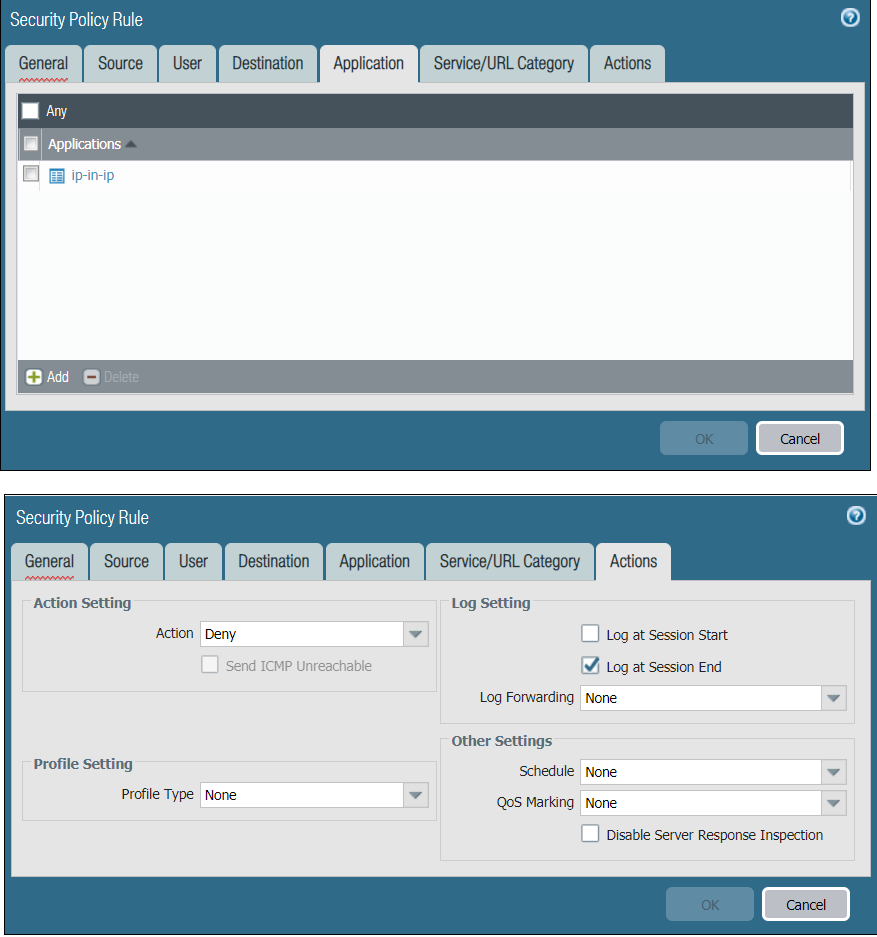

Now add the application IP to IP in the application Tab.
And set the action to Deny.

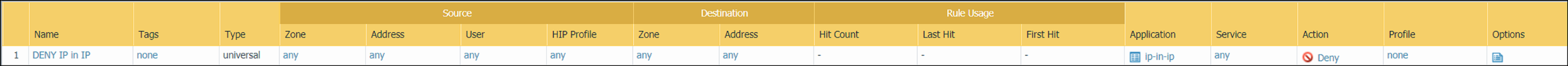

Your finished rule will look like this. Remember to commit the changes.
If at any time you wish to add more applications to this block list you can go to the Application tab and add the applications.
