How to configure Authentication policies when Captive Portal with SAML authentication in Palo Alto Networks firewall.
32091
Created On 07/02/20 06:58 AM - Last Modified 08/01/20 02:23 AM
Objective
This article explains additional caveat to configure Authentication Policies.
To know the fundamental configuration for SAML configuration, please see the following section in PAN-OS Administrator's Guide.
Environment
- Configure Captive Portal with SAML Authentication.
- Traffic to IdP for SAML path through the firewall.
Procedure
- Configure Authentication policy for SAML Authentication by following the steps in the documentation Configure SAML Authentication
- An example configuration is described below.

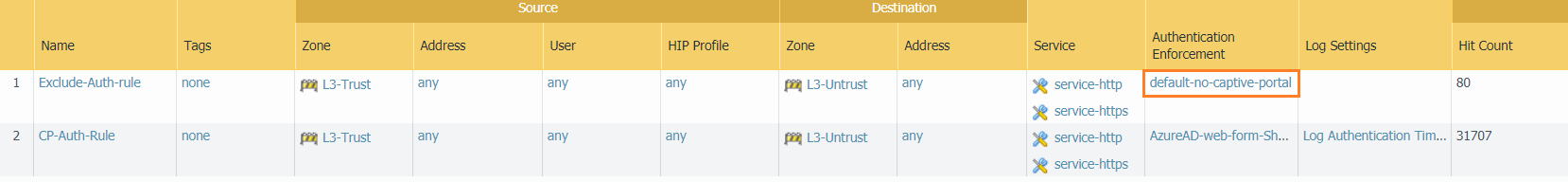

- In the screenshot, "CP-Auth-Rule" is configured.
- However, if only "CP-Auth-Rule" is configured without the Exclude-Auth-rule, the Request to IdP also matches the "CP-Auth-Rule" and it never reaches to the IdP.
- To avoid the situation, configure another Authentication Policy which excludes traffic from Service Provider (It is Captive Portal in this scenario) to IdP from matching Captive Portal.
- It is "Exclude-Auth-rule" in the screenshot.
- Set "default-no-captive-portal" in Authentication Enforcement, and apply "Custom URL Category" which includes URL of IdP.
- Then, locate it upper to "CP-Auth-Rule".
- Request to IdP is excluded from processing Captive Portal by "Exclude-Auth-rule".
