Which Slot is to be selected when Panorama is used to configure an Ethernet interface

Which Slot is to be selected when Panorama is used to configure an Ethernet interface

15722
Created On 07/01/20 19:38 PM - Last Modified 07/25/24 20:17 PM


Objective

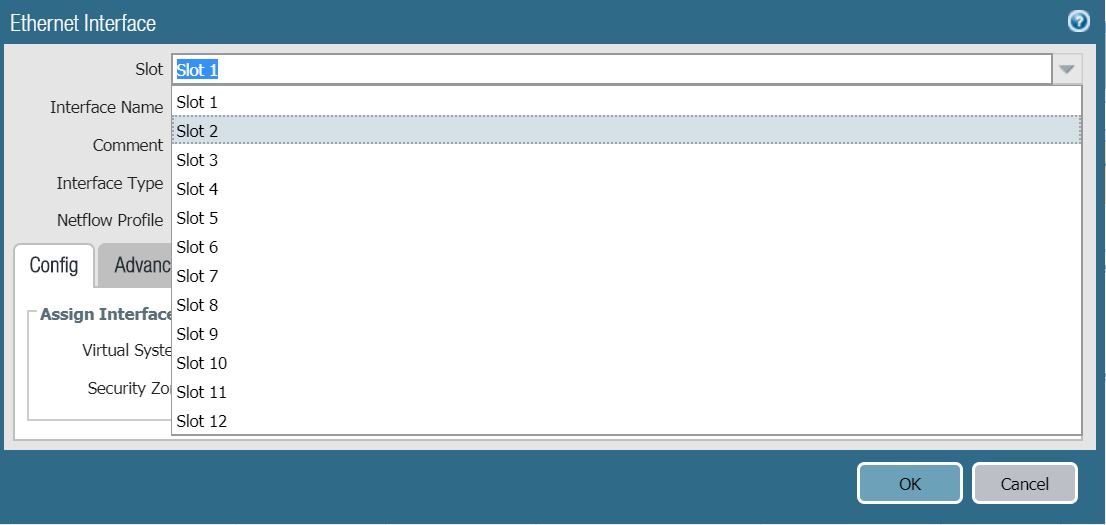

When use Panorama to configure interfaces on any template, Click Add Interface to create a new interface then pop up window will request to select slot number (1-12) from the drop-down menu.

User-added image

Environment


  • Any Panorama
  • Any PAN-OS

Procedure

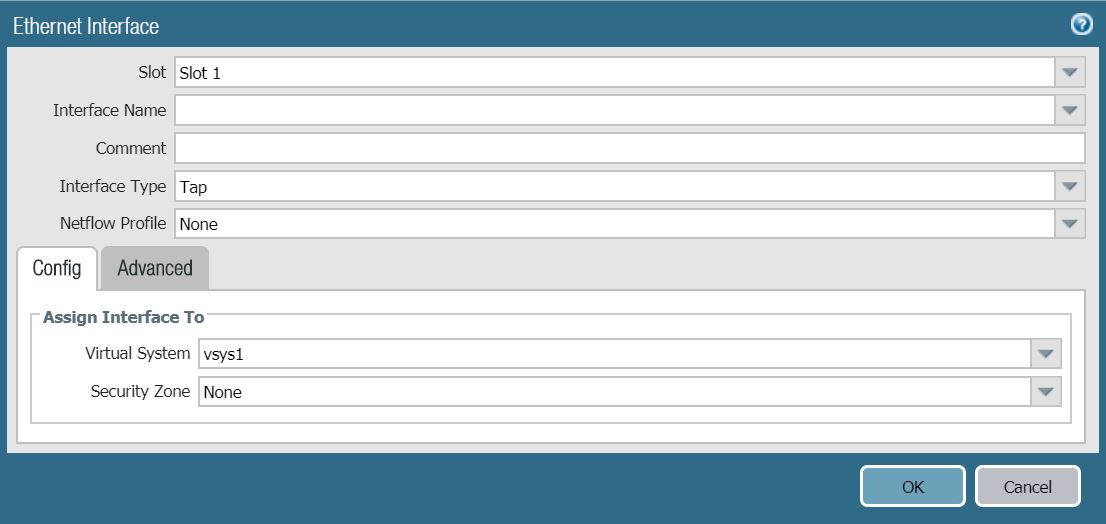

  1. For all the Firewall models except PA-7000 series and PA-5450 firewalls, Select Slot1.
  2. For PA-7000 Series and PA-5450 firewalls, Select the appropriate slot number to be configured. These firewalls have multiple slots and the correct slot number must be selected to configure the same.
User-added image
