GlobalProtect Cookie-Authentifizierung in PAN-OS 10.1
4848
Created On 04/27/22 04:15 AM - Last Modified 03/11/25 20:22 PM
Environment
- Palo Alto-Firewalls
- PAN-OS 10.1 und höher
- GlobalProtect (GP) App
- Cookie-Authentifizierung auf Portal/Gateway
Resolution
To better improve the user experience while using the GlobalProtect App, you can enable cookie authentication on either the Portal and/or Gateway to reduce the amount of times a user must authenticate. You can complete this by performing the following steps:

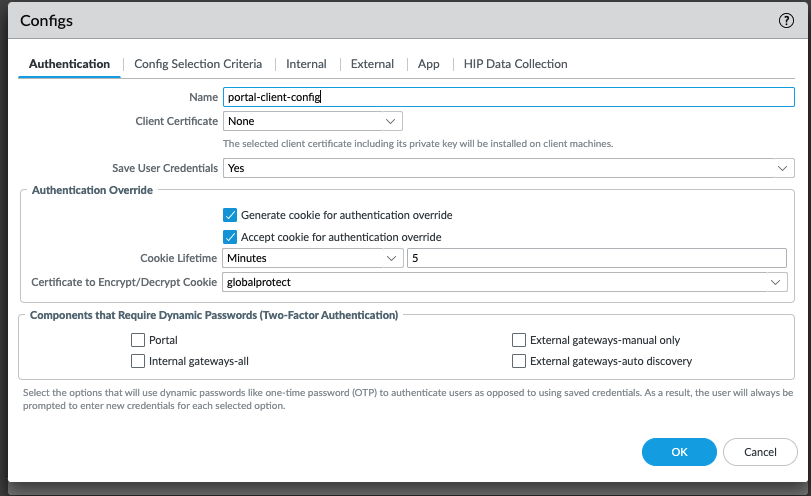

- Cookie-Authentifizierung auf dem GP-Portal aktivieren
- Navigieren Sie zu Netzwerk > GlobalProtect > Portale > [Portal auswählen] > Agent > [Richtige Konfiguration auswählen] > Authentifizierung > Authentifizierung überschreiben
- Aktivieren Sie das Kontrollkästchen für die Optionen „Generieren“ und „Akzeptieren“
- Geben Sie die Lebensdauer des Cookies in Minuten, Stunden oder Tagen sowie das entsprechende Zertifikat für die Verschlüsselung/ Entschlüsselung an und wählen Sie zweimal OK

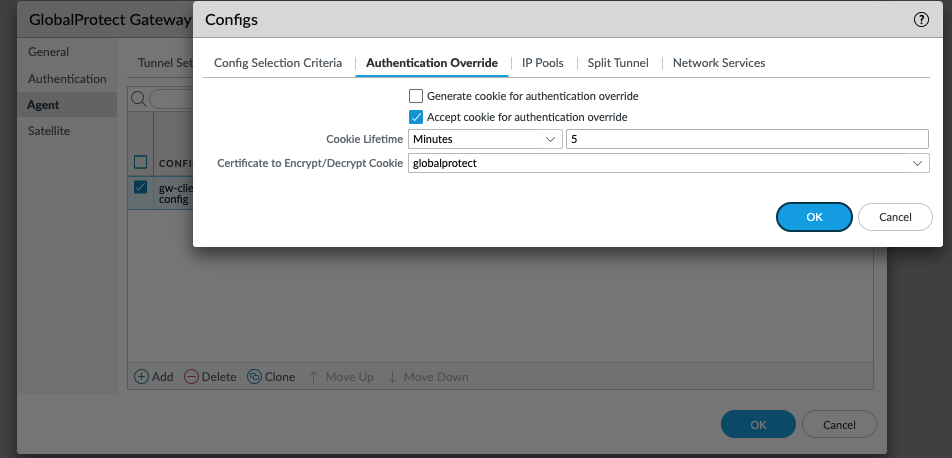

- Aktivieren Sie die Cookie-Authentifizierung auf dem GP-Gateway
- Navigieren Sie zu Netzwerk > GlobalProtect > Gateways > [Gateway auswählen] > Agent > Clienteinstellungen > [Richtige Konfiguration auswählen] > Authentifizierung überschreiben
- Aktivieren Sie das Kontrollkästchen neben der Option „Akzeptieren“ (es wird bereits im Portal generiert und ist hier nicht erforderlich).
- Geben Sie die Cookie-Lebensdauer in Minuten, Stunden oder Tagen zusammen mit demselben Zertifikat aus Schritt 1c an und wählen Sie zweimal OK
- Übernehmen Sie Ihre Änderungen
Afterwards, we can verify the cookie is successfully generated and used for authentication on the firewall by using the following methods:

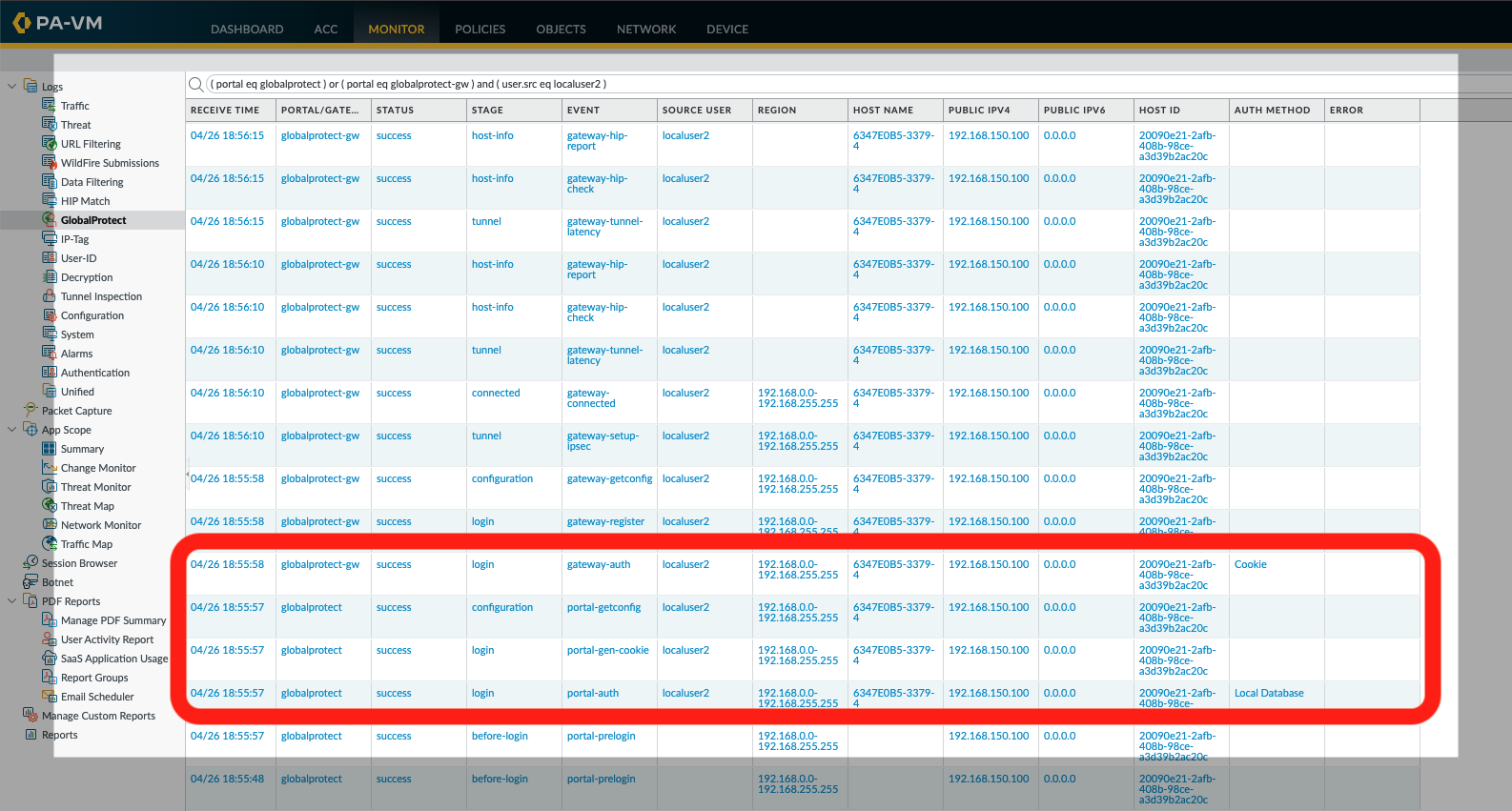

- Überprüfen Sie die überwachen in der Firewall GUI
- Navigieren Sie zu Monitor > Protokolle > GlobalProtect
- Sie können Ihre Protokolle einfach isolieren, indem Sie Filterparameter verwenden, die denen im Image (Abbild) unten ähneln (z. B. Portal/Gatewayname und Benutzername).
- Erstellen einer technischen Supportdatei auf dem GP-Portal/Gateway
Hinweis: Um den gesamten Prozess der Cookie-Erstellung sehen zu können, müssen vor der Authentifizierung zusätzliche Debugging-Funktionen aktiviert werden (rasmgr, sslvpn [10.1], gpsvc [10.2 und höher]).
- Nachdem Sie die Datei für den technischen Support unter Gerät > Support > Datei für den technischen Support heruntergeladen haben, erweitern Sie den Ordner und navigieren Sie zum Verzeichnis var/log/pan
- Sie sollten sehen, dass das Cookie nach der erfolgreichen Authentifizierung beim Portal generiert und dann für die Gateway-Authentifizierung verwendet wird, ähnlich den unten gezeigten:
- appweb3-sslvpn.log ( weniger mp-log appweb3-sslvpn.log )
Portal-Login -
debug: pan_gp_lookup_by_sock(pan_gp_cfg.c:1668): found client config!
debug: panGlobalProtectLogin(panPhpGlobalProtect.c:4318): panGlobalProtectLogin: pan_generate_portal_user_auth_cookie
debug: pan_gp_rsa_gen_app_auth_cookie(pan_gp_cfg.c:2560): un-encrypted auth cookie localuser2;;Windows;20090e21-2afb-408b-98ce-a3d39b2ac20c;1651024558;192.168.150.100, user=localuser2, remote_addr=192.168.150.100
debug: pan_generate_portal_user_auth_cookie(panPhpGlobalProtect.c:2369): generate portal user auth cookie successful
debug: panGlobalProtectLogin(panPhpGlobalProtect.c:4407): loginStatus=1; no pwd_expiry_msg
debug: panGlobalProtectLogin(panPhpGlobalProtect.c:4443): panGlobalProtectLogin: set domain=(empty_domain) from EMPTYDOMAIN
debug: panGlobalProtectLogin(panPhpGlobalProtect.c:4487): user(localuser2) gen_prelogon_cookie(yes) prelogon_exist(no) gen_cookie(yes) has_prelogon_cookie(no)
debug: panGlobalProtectLogin(panPhpGlobalProtect.c:4552): panGlobalProtectLogin: cleanup
debug: panGlobalProtectLogin(panPhpGlobalProtect.c:4554): return portal user auth cookie(p6Wu9gz8Vt******lB7ofFNw==)
debug: panGlobalProtectLogin(panPhpGlobalProtect.c:4592): login ret string sent to the client is : Success
debug: panGlobalProtectLogin(panPhpGlobalProtect.c:4610): login response sent to the client is : Success
Gateway-Anmeldung -
debug: panSslVpnLogin(panPhpSslVpn.c:2319): panSslVpnLogin: Begin... user=localuser2, empty passwd=no, empty new passwd=yes, input=, hostid=.....
<><><><><><><><><><>
debug: pan_gp_rsa_dec_app_auth_cookie(pan_gp_cfg.c:2699): decrypt auth cookie localuser2;;Windows;20090e21-2afb-408b-98ce-a3d39b2ac20c;1651024558;192.168.150.100
debug: pan_gp_rsa_dec_app_auth_cookie(pan_gp_cfg.c:2761): curtime(1651024558) cookietime(1651024558) end=0
debug: pan_gp_rsa_dec_app_auth_cookie(pan_gp_cfg.c:2771): remote_addr(192.168.150.100) ret_remote_addr(0-6496a8c0ffff0000)
debug: panSslVpnLogin(panPhpSslVpn.c:2807): gateway user auth cookie decrypt successful
debug: panSslVpnLogin(panPhpSslVpn.c:2972): clientaddr=192.168.150.100, cookie ip=192.168.150.100; source ip check enable 0, netmask v4 32 v6 128
<><><><><><><><><><>
debug: panSslVpnLogin(panPhpSslVpn.c:3693): Cookie valid : Getting the framed ip
debug: panSslVpnLogin(panPhpSslVpn.c:3878): User localuser2 authResult = 1 cookie_valid(yes)
debug: panSslVpnLogin(panPhpSslVpn.c:4082): Valid cookie, skipping user authentication
- gpsvc.log ( weniger mp-log gpsvc.log )
Portal-Login -
{"level":"debug","task":"1770-5","time":"2024-07-19T12:34:25.758824212-05:00","message":"NewHttpTask: task for gp-getconfig(POST) request begin..."}
<><><><><><><><><><>
{"level":"debug","task":"1770-5","time":"2024-07-19T12:34:26.807403111-05:00","message":"HandlePortalAuthOverrideCookie: gen-cookie(yes)"}
{"level":"debug","task":"1770-5","time":"2024-07-19T12:34:26.821376872-05:00","message":"GenerateAuthCookie: cleartext localuser2;[domain-name];Windows;d64830af-791e-4f75-b28b-11a0819f46cd;1721410466;192.168.150.100, authCookieStr fCWJT1dBuLZvcsBAgOqwrho60vxT0U+Zv..."}
<><><><><><><><><><>
{"level":"debug","task":"1770-5","time":"2024-07-19T12:34:26.826875761-05:00","message":"RunHttp: task for gp-getconfig is completed"}
Gateway-Anmeldung -
{"level":"debug","task":"1772-19","time":"2024-07-19T12:34:30.788277584-05:00","message":"NewHttpTask: task for gw-login(POST) request begin..."}
<><><><><><><><><><>
{"level":"debug","task":"1772-19","time":"2024-07-19T12:34:30.803233694-05:00","message":"DecryptAuthCookie: auth cookie after decryption: localuser2;[domain-name];Windows;d64830af-791e-4f75-b28b-11a0819f46cd;1721410466;192.168.150.100"}
{"level":"debug","task":"1772-19","time":"2024-07-19T12:34:30.803383847-05:00","message":"AuthWithCookie: set domain=[domain-name] from auth override cookie"}
{"level":"debug","task":"1772-19","time":"2024-07-19T12:34:30.803416778-05:00","message":"AuthWithCookie: set user=localuser2 from auth override cookie"}
<><><><><><><><><><>
{"level":"debug","task":"1772-19","time":"2024-07-19T12:34:30.80681415-05:00","message":"HandleGWAuthOverrideCookie: gen-cookie(no)"}
{"level":"debug","task":"1772-19","time":"2024-07-19T12:34:30.807099047-05:00","message":"gwLogin: PAN_AUTH_SUCCESS"}
<><><><><><><><><><>
{"level":"debug","task":"1772-19","time":"2024-07-19T12:34:30.809681398-05:00","message":"RunHttp: task for gw-login is completed"}
- Wenn Sie zu rasmgr.log navigieren, sollte das zur Authentifizierung angezeigte Cookie ähnlich den unten gezeigten Protokollen angezeigt werden:
rasmgr.log ( weniger mp-log rasmgr.log )
debug: sslvpn_set_pub_ip(src/rasmgr_sslvpn.c:1499): GP Client conn type is ipv4 (0), pub_ip 192.168.150.100, pub_ip6 0:0:0:0:0:0:0:0, rep_pub_ip 192.168.150.100, rep_pub_ip6 0:0:0:0:0:0:0:0
debug: _print_client_requests(src/rasmgr_sslvpn.c:157): (login) gw login (1651024558722, 2022-04-26 18:55:58.722, 192.168.150.100); getconfig (0, , ::); sslvpnconnrect (0, , ::)
new cookie: ******
rasmgr_sslvpn_client_register space globalprotect-gw-N domain user localuser2 computer 6347E0B5-3379-4 result 0
