Commit fails with error "Failed to autogenerate SDWAN configuration"
13855
Created On 03/24/22 03:25 AM - Last Modified 08/04/22 02:54 AM
Symptom
- Panorama push to firewall fails with commit error "Failed to autogenerate SDWAN configuration"
- configd.log (less mp-log configd.log) on the firewall shows the following error
Firewall> less mp-log configd.log ...... Error: pan_cfg_transform_fullpath(pan_cfg_utils.c:6828): error generating transform /opt/pancfg/mgmt/factory/tplrenamemapfrompushreq.xsl Error: pan_cfg_tpl_renamemap_from_request(pan_cfg_templates.c:4986): failed to generate tpl rename map from request Error: pan_cfg_pushtpl_autogen_config_merge(pan_cfg_templates.c:6810): Zones node or zone map hash not found for sd-wan zone mapping File "/opt/pancfg/mgmt/transforms/cluster-gen.py", line 1529, in if xml_to_file(gen_auto_config(root, tpl_config), xml_outfile, True) < 0: File "/opt/pancfg/mgmt/transforms/cluster-gen.py", line 1343, in gen_auto_config dn_node.gen_loopback_interface(loopback_name, local_info.bgp_info.loopback_address, config_node, vr_node.vr_interface_node) File "/opt/pancfg/mgmt/transforms/cluster-gen.py", line 816, in gen_loopback_interface xml_add_child(xml_get_node_by_xpath(config_node.zone_node[2], "./network/layer3"), loopback_member) File "/opt/pancfg/mgmt/transforms/cluster-gen.py", line 153, in xml_add_child root.append(node) Error: pan_cfg_pushtpl_autogen_config_merge(pan_cfg_templates.c:6856): Failed to auto generate SD-wan config: 'NoneType' object has no attribute 'append' ***Traceback*** Failed to execute cluster-gen.py ....
Environment
- Panorama with Managed Firewalls
- Supported PAN-OS
- SD-WAN plugin
Cause
The zones used for SD-WAN Plugin need to be layer3 zone.
Resolution

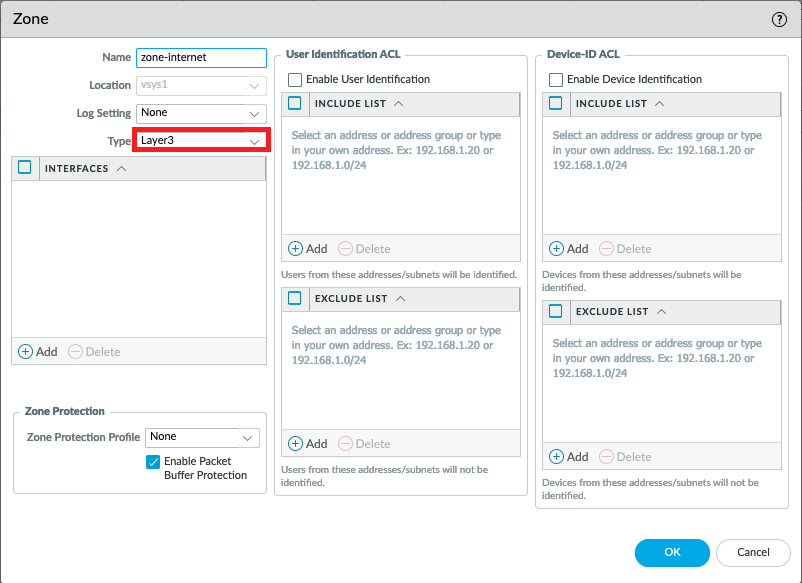

- Change the zone type to Layer3 (GUI: Network > Zones > (Select the zone) > (Use dropdown button to make it Layer3)
- Click OK and commit the configuration
Note: Select the right template on which the actual firewall resides.
