Commit Error: "HA1 IP address not allowed to be in the same subnet as the device management port" when configuring the HA1 IP address
862
Created On 12/28/21 22:51 PM - Last Modified 10/27/25 16:48 PM
Symptom

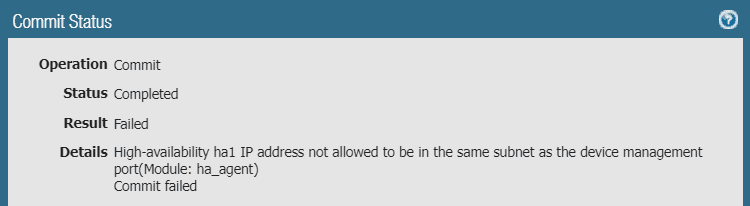

- When configuring an HA1 IP address the following error message is displayed during Commit.
- High-availability ha1 IP address not allowed to be in the same subnet as the device
Environment
- PA-3020
- PAN-OS 9.1.x
- HA-pair, active-passive
- High Availability Setup
- Control link: HA1 dedicated
Cause
The issue is observed when the HA1 IP is configured in the same subnet as the management IP, for example:
HA1 IP: 10.46.132.144
Management IP: 10.46.132.143
Resolution

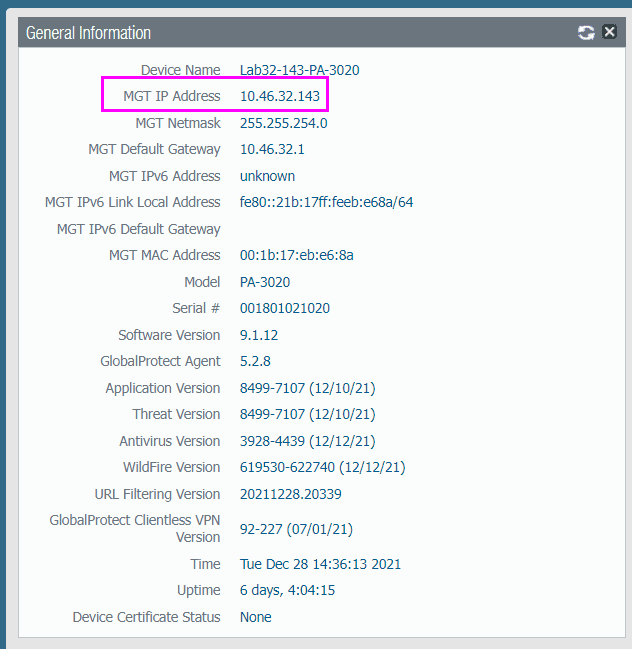

- Verify the management IP using any of the commands below:
- > show system info
- > show interface management

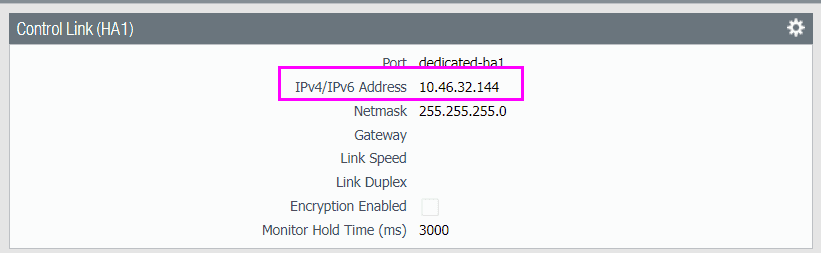

- Verify the HA1 IP using any of the commands below:
- > show high-availability all
- > show interface dedicated-ha1
- Make a comparison between the IP addresses
- If they are in the same subnet, modify the HA1 IP to be in the different subnet
- Commit the changes
Additional Information
HA Links and Backup Links
